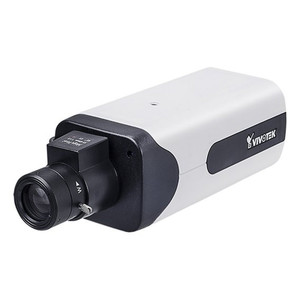

Vivotek IP9165 LPCKIT S1 v2 2MP Standard License Plate Capture Kit

Vivotek IP9165 LPCKIT S1 v2 2MP License Plate Capture Kit

The Vivotek IP9165 LPCKIT S1 v2 is a purpose-built 2MP license plate recognition (LPR) system engineered for high-speed highway and gantry toll applications. This complete capture kit delivers precise plate identification in all lighting conditions, combining advanced optics, intelligent IR illumination, and professional-grade construction for mission-critical traffic and security operations.

Key Features

• 2 Megapixel resolution optimized for license plate clarity and OCR accuracy
• Captures up to 35 meters with suggested optimal distance of 10–20 meters
• Highway-rated shutter speeds from 1/1,600 to 1/10,000 seconds for vehicles up to 110 MPH (180 km/h)
• Dual-lane capture capability (2 lanes per configuration); supports both roadside and gantry deployments
• 80W CA80I8 2040 IR illuminator with remote-controlled 20°–40° beam angle for flawless night vision
• IP68 weatherproof and IK10 vandal-proof housing rated for harsh outdoor environments
• H.265 video compression reduces bandwidth and storage while maintaining image integrity
• 30 fps frame rate ensures smooth, artifact-free capture of fast-moving vehicles
• Three simultaneous video streams and support for up to 10 live-viewing clients

Technical Specifications

• IR Operation: Automatic switching at 300 lux (on) and 600 lux (off); RS485-configurable thresholds
• Power: AC/DC 24V input; maximum 110W consumption; PoE compatible
• Temperature Range: Operating 20°C–60°C (4°F–140°F); optional cold-start heater available for extended range
• Humidity: 90% non-condensing for tropical and humid deployments
• Connectivity: Gigabit Ethernet (10/100/1000 Mbps), RS485, digital I/O, audio in/out, BNC connector
• Analytics: Five-window video motion detection with configurable sensitivity
• Event Management: Audio/motion/tampering detection, cybersecurity event logging, email/HTTP/FTP/NAS notifications
• Protocols: Full IPv4/IPv6 stack including RTSP/RTP, HTTPS/TLS 1.2, SNMP, DDNS, QoS, and 802.1X authentication
• Weight: 6.48–6.66 kg depending on lens configuration

Applications

• Highway toll plazas and congestion-charge zones
• Border control and customs checkpoints
• Parking facility entrance/exit monitoring
• Law enforcement and traffic enforcement programs
• Airport and port vehicle access control
• Fleet and asset tracking at logistics hubs

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The IP9165 LPCKIT S1 v2 is purpose-engineered for the demanding requirements of high-speed vehicle identification. The kit's strength lies in its hardware integration: the paired 80W illuminator ensures consistent plate visibility regardless of ambient light, while the aggressive shutter range (1/10,000 sec) freezes motion artifacts at highway speeds. H.265 codec efficiency is critical for multi-lane, 24/7 deployments where bandwidth constraints are common in remote toll facilities.

The dual-stream architecture and five-window motion detection enable simultaneous plate capture and scene context recording—essential for dispute resolution. RS485 configurability of IR thresholds allows field tuning without firmware updates. IP68/IK10 ratings are standard for toll infrastructure, but the optional cold-start heater is invaluable for seasonal climates where early-morning condensation risks false triggers.

This kit is suited for integrators with ONVIF/Profile G,S,T infrastructure; ensure your NVR backend supports H.265 decoding and the sustained bandwidth profile of three simultaneous streams at 2MP/30fps.
