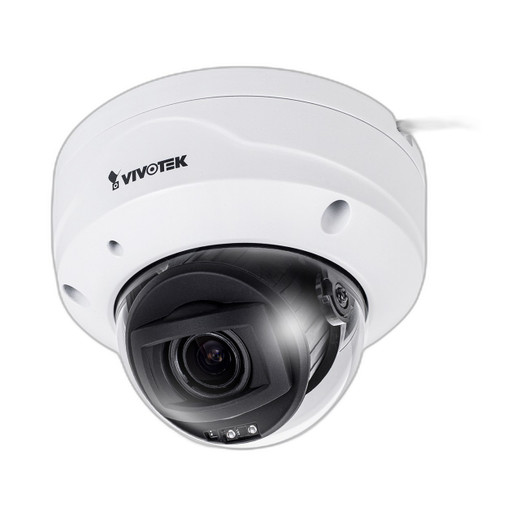

Vivotek FD9368-HTV 2MP Outdoor WDR Pro Night Vision IR Remote Focus Dome IP Camera

Vivotek FD9368-HTV 2MP Outdoor Dome IP Camera

The Vivotek FD9368-HTV is a professional-grade 2MP outdoor dome camera engineered for demanding surveillance applications. Featuring motorized vari-focal optics with remote focus capability, WDR Pro technology, and integrated IR illumination extending to 30 meters, this camera delivers exceptional image clarity across varying lighting conditions and distances. The robust IP66 and IK10-rated design ensures reliable operation in harsh outdoor environments.

Key Features

• 2MP 1920x1080 resolution with 30 fps at full resolution
• Motorized vari-focal lens (2.8–12mm) with remote focus and 48x digital zoom
• WDR Pro technology for clear imaging in high-contrast lighting
• Built-in IR illuminators up to 30 meters with Smart IR
• Day/night switching with removable IR-cut filter
• IP66 weatherproof and IK10 impact-resistant housing
• H.265, H.264, and MJPEG video compression
• Seamless microSD/SDHC/SDXC and NAS recording
• Three independent video streams with up to 8 configurable profiles
• Pan/tilt/zoom (ePTZ) with 353° pan and 75° tilt range

Technical Highlights

Imaging Performance: The 1/2.9" Progressive CMOS sensor captures detail-rich footage with a 120 dB dynamic range and 68 dB S/N ratio. Minimum illumination of 0.055 lux in color mode and under 0.005 lux in black/white demonstrates exceptional low-light sensitivity without IR assistance. Shutter speeds from 1/5 to 1/32,000 seconds accommodate rapid scene changes and varied exposure control.

Installation & Flexibility: The motorized lens with remote focus and zoom eliminates time-consuming on-site adjustments, critical for difficult-to-access outdoor installations. The 353° horizontal PTZ range and ePTZ capabilities provide expansive coverage area management. Adjustable video resolution, quality, and bitrate via Smart Stream III optimize bandwidth utilization without sacrificing performance.

Security & Reliability: IEEE 802.3af PoE Class 0 power delivery reduces infrastructure demands. Multiple security protocols including IEEE 802.1X, HTTPS, TLS 1.2, and digest authentication protect against unauthorized access. Trend Micro IoT Security provides real-time cyberattack detection and brute force protection. Camera tampering detection and five-window motion detection trigger event-based alerts via email, HTTP, FTP, NAS, or push notification.

Storage & Analytics: Flexible recording options include local microSD card storage or centralized NAS backup. Event triggers span motion detection, audio detection, cybersecurity events, and periodic recording. Support for up to 10 simultaneous clients enables multi-user live viewing.

Applications

Ideal for perimeter protection, parking lot surveillance, building entrances, industrial facilities, and any outdoor environment where remote focus capability, extended night vision, and robust weatherproofing are essential. The combination of motorized optics, WDR Pro, and comprehensive analytics makes it suitable for both general surveillance and detail-capture applications requiring focal length adjustment.

Karl Wilson

The FD9368-HTV stands out for its motorized vari-focal design paired with remote focus—a feature that significantly reduces deployment time and cost in outdoor installations. The 2.8–12mm lens range (93°–32° horizontal FOV) balances wide-area monitoring with zoom capability without requiring additional equipment. WDR Pro and Smart IR integration address the most common outdoor surveillance challenges: glare, backlighting, and night-time visibility.

H.265 codec support reduces bandwidth by up to 50% versus H.264, critical for bandwidth-constrained deployments. The IK10 impact rating is particularly valuable in high-vandalism areas. Trend Micro IoT Security integration elevates this model beyond basic surveillance into the managed security domain, appropriate for organizations requiring compliance-grade threat detection.

PoE-only power is an advantage for simplified wiring but limits installation flexibility in legacy or remote locations.
