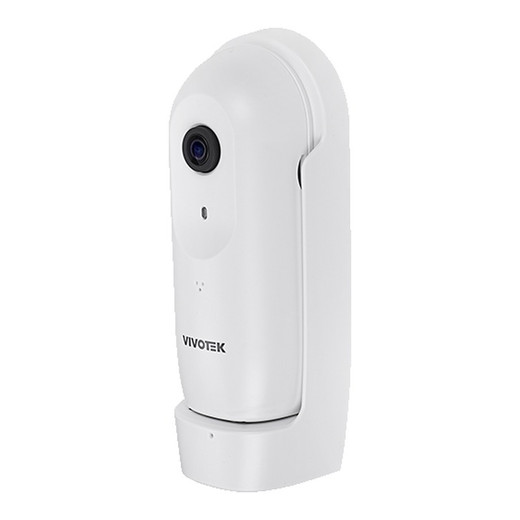

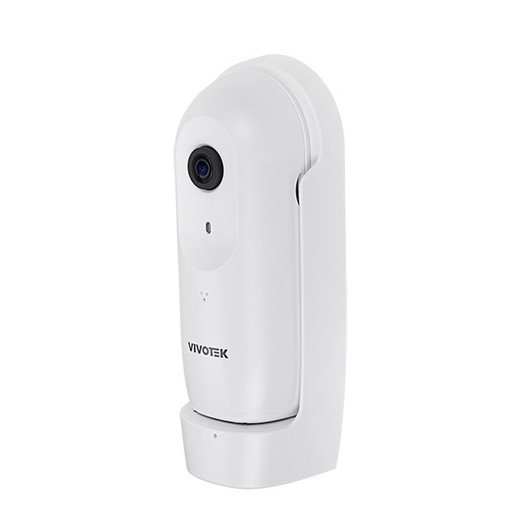

Vivotek CC9160-H 2MP 180° Panoramic IP Camera

Vivotek CC9160-H 2MP 180° Panoramic Day/Night IP Camera

The CC9160-H is a compact fixed-box camera engineered for single-camera panoramic surveillance in confined indoor spaces. Its 180° horizontal field of view eliminates the need for multiple fixed cameras in retail floors, hotel corridors, classrooms, and cafeterias—reducing both hardware cost and VMS complexity. This is not a PTZ camera; it's a fixed 180° lens optimized for wall or ceiling mounting where one camera can monitor an entire rectangular zone.

Key Features

• 180° Horizontal Panoramic Coverage: With 100° vertical field of view, the CC9160-H covers an entire rectangular space in a single shot. This matters on thin budgets—one camera replaces two or three traditional 90° fixed cameras, cutting installation labor and cabling in half.
• 2MP (1920 × 1080) at 30 fps: Full HD resolution across the entire panoramic image ensures readable face detail and license plates remain legible across the full 180° span. Frame rate stays constant regardless of field of view—no dropping to 15 fps to achieve panoramic coverage.
• WDR Pro with 120 dB Dynamic Range: When windows flood one side of a retail floor with sunlight while the opposite wall sits in shadow, WDR Pro compresses both extremes into a single usable frame. This is particularly valuable in retail and hospitality where you cannot control ambient light.
• Ultra-Low Light Performance (0.03 lux @ F1.95): The f1.95 aperture and minimum 0.03 lux sensitivity mean the camera produces usable monochrome images in near-darkness—valuable for after-hours monitoring without supplemental IR. Infrared day/night capability provides true round-the-clock operation.
• H.265 Compression with Smart Stream III: H.265 cuts bitrate 40–50% below H.264 on typical retail scenes. On 24/7 recording, this translates to shorter microSD retention windows or lower network overhead if you stream to an NVR. Smart Stream III further optimizes bandwidth by adjusting quality based on motion—static backgrounds compress harder than moving subjects.
• One-Way Built-in Audio with 5-Meter Range: Integrated microphone and speaker support basic announcements and audio detection for event triggering. Two-way audio is not supported; this is a listen-and-announce tool, not a full intercom.
• ePTZ Digital Zoom (48×): Although the lens is fixed, the 48× digital zoom lets you zoom into any region of the 180° view for incident review. Quality degrades as you zoom further, but this eliminates the need for a separate PTZ camera when you need to inspect a specific corner during playback.
• MicroSD/SDHC/SDXC Card Storage: On-board recording to standard microSD cards (up to 512 GB theoretical) provides local failsafe storage independent of network connectivity. Ideal for retail locations without IT support or for temporary deployments.

Integration and Compatibility

The CC9160-H supports ONVIF Profile S and T, ensuring compatibility with major VMS platforms (Milestone, Genetec, Axis Camera Station, and others). Standard protocols include IPv4/IPv6, RTSP/RTP, DHCP, DNS, DDNS, and FTP/SFTP for event export and remote configuration. The camera can serve 10 simultaneous live clients across 3 configurable video streams, supporting enterprise deployments with multiple security operators or integration into larger multi-site systems.

Event management includes motion detection (five configurable windows), audio detection, and tampering detection. Triggered events can dispatch via email, HTTP, FTP, or push notification—allowing real-time alerts to security staff without requiring a full NVR.

Security features include Trend Micro IoT Security integration (1-year trial included), HTTPS/SSL encryption, brute-force attack protection, and IEEE 802.1x authentication. Firmware updates are digitally signed to prevent tampering.

Power and Form Factor

The CC9160-H draws 5 W maximum via PoE (IEEE 802.3af), so it will not strain a standard 15W 802.3af port budget on your network switch. The compact 120 × 52 × 39 mm form factor and white finish mount discreetly on ceiling tiles or wall corners without dominating the space—important in retail and hospitality where visible cameras deter some customer behavior but should not look industrial.

When to Choose a Different Model

If you need outdoor operation, IP67 rating, or a larger form factor for extended IR range, consider an outdoor variant from the Vivotek panoramic line. If your space requires more than 180° coverage or requires PTZ capability, a dedicated PTZ camera may be more cost-effective than multiple fixed panoramic units.

Integration with Broader Deployments

The CC9160-H integrates into larger network video recorder systems where microSD serves as a secondary buffer and ONVIF streaming feeds the primary storage. For bandwidth-sensitive sites, enable H.265 and Smart Stream III to reduce WAN utilization on multi-site deployments. For on-premises installations with microSD as primary storage, plan for monthly card swaps or implement centralized SD card management on corporate machines.

Frequently Asked Questions

Q: Does the CC9160-H support two-way audio?

A: No. The camera includes a built-in microphone and speaker, but only one-way communication is supported—you can listen to sounds in the monitored space and make announcements, but not conduct a true two-way conversation through the camera.

Q: Can I use the CC9160-H outdoors?

A: No. The CC9160-H is rated for indoor use only. Rain, direct sunlight, and moisture will damage the sensor and lens housing. Choose an outdoor-rated model if you need exterior surveillance.

Q: What is the maximum microSD card size supported?

A: The camera supports microSD, SDHC, and SDXC cards up to 512 GB theoretical capacity, though manufacturers typically guarantee cards up to 256 GB. Verify compatibility with your card model before purchase.

Q: Is the CC9160-H compatible with Milestone XProtect?

A: Yes. ONVIF Profile S and T support ensures compatibility with Milestone and other major VMS platforms. Confirm your VMS version supports ONVIF streaming before deployment.

Q: How long does a microSD card retain footage at 24/7 recording?

A: Retention depends on card size and bitrate. A 256 GB card at H.265 compression (lower bitrate) will typically hold 7–14 days of 24/7 footage; H.264 reduces this to 4–7 days. Calculate based on your specific resolution and codec settings.

Q: Does the CC9160-H require a separate power supply?

A: No. At 5 W maximum, the camera operates entirely on PoE (IEEE 802.3af). No separate 12VDC or AC adapter is needed—one Ethernet cable provides both power and data.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CC9160-H represents an efficient solution for single-camera panoramic coverage in rectangular retail and hospitality spaces. The 180° horizontal field of view paired with full 2MP resolution across the entire panoramic image is a rare combination at this price point—most panoramic cameras sacrifice resolution or require stitching software. The WDR Pro 120 dB dynamic range and f1.95 aperture deliver genuinely usable imagery in mixed-light scenarios typical of retail floors with window glare and overhead shadows.

Technical Highlights:

• H.265 Compression with Smart Stream III: Bitrate reduction of 40–50% versus H.264 on typical retail motion profiles directly extends microSD card retention—a 256 GB card moves from 5 days (H.264) to 10+ days (H.265) at the same frame rate. This matters on single-camera deployments where local failsafe storage is the primary backup.
• 0.03 Lux Minimum Illumination at F1.95: Faster than most budget panoramic cameras, the large aperture enables usable monochrome recording in near-total darkness without IR supplementation. Post-midnight retail monitoring (stockroom activity, unauthorized entry detection) produces recognizable silhouettes and motion patterns.
• 5-Window Motion Detection with Configurable Sensitivity: Unlike binary motion triggers, five independent detection zones allow you to ignore high-traffic areas (checkout lanes) while alerting on restricted zones (storage aisles, manager office). This reduces false alerts and focuses security staff on anomalies, not customer movement.

Deployment Considerations:

• The 180° panoramic lens is fixed—if your monitoring needs require zooming into distant details live (not just in playback), a PTZ or higher-resolution narrow-angle camera may be more practical despite the extra cost. Digital zoom compensates, but only during review.
• MicroSD failsafe storage assumes staff will physically swap or clear cards on schedule. Without centralized SD management, local retention becomes a liability—forgotten cards fill and stop recording silently. Plan for monthly or quarterly card swaps in retail locations with limited IT support.

The CC9160-H is well-suited to retail floor monitoring where a single camera must eliminate blind spots from entrance to stockroom, hospitality venues covering corridor intersections, and educational facilities monitoring cafeterias and gymnasiums. Its low power draw (5 W PoE) and ONVIF compatibility make it a straightforward add-on to existing VMS infrastructure without requiring switch upgrades or dedicated power conditioning.
