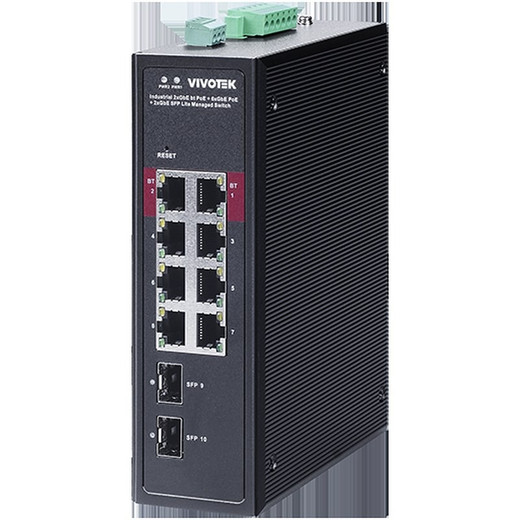

Vivotek AW-IHB-1040 Industrial Managed PoE Switch

Vivotek AW-IHB-1040 Industrial Managed PoE Switch

The Vivotek AW-IHB-1040 is a robust, industrial-grade managed switch purpose-built for demanding surveillance and security deployments. With a total PoE power budget of 300W distributed across eight Gigabit PoE ports—including two ultra-high-power 90W PoE+ ports and six 30W PoE ports—this switch excels at powering resource-intensive devices like PTZ cameras, thermal imaging systems, and wireless access points in mission-critical environments. Two SFP Lite ports provide high-speed uplink and fiber connectivity options, while comprehensive Layer 2 management features ensure reliable, secure network operation in harsh industrial settings.

Key Features

• Dual 90W PoE+ Ports: Deliver extreme power for demanding PTZ cameras and high-consumption surveillance equipment
• Six 30W PoE Standard Ports: Support traditional PoE devices across the network
• Two 1G SFP Lite Ports: Enable fiber uplinks and long-range connectivity for network expansion
• 300W Total PoE Budget: Sufficient power for complete surveillance infrastructure without additional power supplies
• 6 kV PoE Surge Protection: Per-port surge protection safeguards connected devices from electrical damage
• Managed Layer 2 Control: VLAN support, port mirroring, bandwidth control, and spanning tree protocols for network optimization
• Non-Stop PoE Technology: Ensures continuous power delivery during network resets and management operations
• Extended PoE Mode (250M): Supports cable runs up to 250 meters for flexible deployment
• Temperature & Humidity Detection: Built-in monitoring prevents environmental issues before they impact performance

Technical Specifications

• 8x 10/100/1000M Gigabit PoE Ports with intelligent power allocation
• 20 Gbps switching bandwidth for lag-free performance
• 4K MAC table and 1.5 MB buffer memory
• 9216-byte jumbo frame support for optimized data transmission
• IEEE 802.3af/at/bt PoE standard compliant
• Operating range: -40°C to 75°C, storage to 85°C
• 10–90% RH operating humidity with detection capability
• Compact industrial form factor: 165 × 123 × 53.5 mm, 0.9 kg
• Redundant 48–56VDC power input with flexible voltage support
• Two digital output ports for external integration

Applications

• IP surveillance networks with mixed high and standard power requirements
• Industrial automation and IoT deployments
• Outdoor and harsh-environment installations
• Multi-site enterprise security infrastructures
• Integrated access control and lighting systems

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AW-IHB-1040 solves a critical pain point in industrial surveillance: the need to power diverse devices from a single, manageable platform. The dual 90W ports accommodate next-generation PTZ cameras and thermal systems without cascading switches, while the six 30W ports absorb standard loads efficiently. The 300W total budget is exceptionally high for a compact 10-port switch, making it cost-effective for large deployments.

Extended PoE mode (250M) is particularly valuable in sprawling industrial sites where cable runs exceed standard Ethernet limits. Built-in surge protection and temperature monitoring reflect Vivotek's focus on reliability in uncontrolled environments. The switch's Layer 2 feature set—port isolation, bandwidth control, and loop protection—provides the control necessary for security-sensitive networks without requiring enterprise-class management complexity.

The 60-month warranty underscores confidence in industrial durability. Ideal for integrators seeking a single-box solution that bridges consumer and enterprise capabilities.
