Vivotek AM-51D 4-Inch Electrical Octagon Box Adapter Plate
Overview

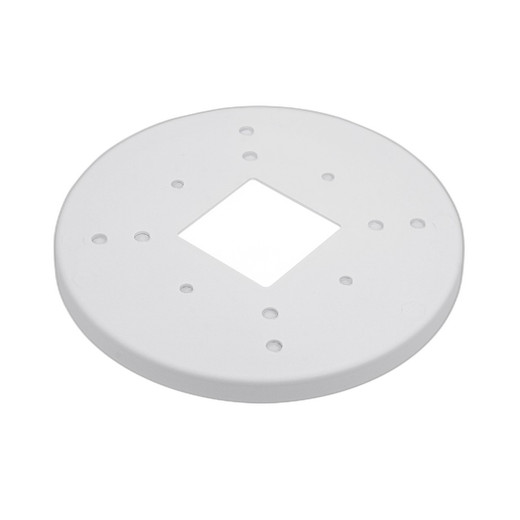

The AM-51D is a mounting adapter designed to integrate Vivotek dome cameras into existing electrical infrastructure — specifically 4-inch octagonal and single-gang electrical boxes. This accessory bridges the gap between standard ceiling boxes and camera hardware, eliminating the need for custom mounting or structural modifications. Installers benefit from a pre-engineered solution that reduces on-site fabrication time and maintains a low-profile, aesthetically neutral appearance in retail, office, and educational environments.
Key Features
- Dual Box Compatibility: Accommodates both 4-inch octagonal and single-gang electrical boxes without adapters or modifications, simplifying inventory requirements across mixed installations.
- SECC Steel Construction: Cold-rolled steel with electrolytic coating resists corrosion and surface degradation, ensuring the mounting plate maintains structural integrity across years of use — important for long-term warranty compliance and avoiding replacement cycles.
- Compact Circular Profile (Ø 130 mm × 12 mm): Low-profile design keeps the adapter shallow enough to fit standard drop ceilings and electrical cavities without protruding noticeably, preserving sight lines and interior aesthetics in customer-facing spaces.
- White Finish: Blends with standard ceiling tile and electrical box color, minimizing visual disruption compared to bare steel or contrasting hardware.
- Lightweight (202 g): Minimal weight reduces stress on electrical box anchoring and does not require reinforced installation hardware.
- Compatible with Select Vivotek Dome Camera Models: The AM-51D supports FD9189-H(T)-v2, FD9368-HTV, FD9388-HTV, and FD9389-EH(T)V-v2 — verify your specific model against this list before ordering, as not all Vivotek domes mount to this plate.
Installation & Mounting Context
This adapter is designed for retrofit and new-build scenarios where camera placement needs to align with existing electrical infrastructure. Rather than drilling custom holes or using ceiling-mounted brackets, installers attach the AM-51D directly to the octagon or gang box knockouts, then mount the dome camera to the adapter's pre-drilled footprint. This reduces labor time — especially valuable when deploying across multiple locations — and ensures consistent, code-compliant installation without reliance on site-specific fabrication.
For ceiling camera mounting in commercial environments, the octagon box approach is a standard approach: it provides a centralized power and cable entry point while allowing the camera to sit flush or minimally recessed. The AM-51D makes this integration straightforward for Vivotek's supported dome line.
Deployment Scenarios
This adapter is most applicable in:
- Retail: Ceiling-mounted surveillance over sales floors, stockrooms, or entry points where electrical boxes already exist in the ceiling cavity.
- Office & Educational Facilities: Hallway and classroom monitoring using existing electrical infrastructure to avoid structural modifications.
- Warehouse Automation: Fixed camera positions tied to electrical conduit runs, reducing the need for custom ceiling brackets or wall-mounted alternatives.
- Retrofits: Upgrading older surveillance systems by reusing existing electrical boxes and simplifying camera replacement logistics.
Material & Durability
SECC (Structural Electrolytic Chromated Steel) is an industry standard for electrical enclosure and adapter hardware. The corrosion resistance is adequate for indoor and dry indoor-adjacent environments; if the installation experiences high humidity or condensation cycling, inspect periodically and consider a protective coat or conformal sealant during commissioning.
Frequently Asked Questions
Q: Does the AM-51D work with all Vivotek dome cameras?
A: No. It is compatible only with FD9189-H(T)-v2, FD9368-HTV, FD9388-HTV, and FD9389-EH(T)V-v2. Verify your dome model against this list before ordering.
Q: Can I use the AM-51D with single-gang boxes?
A: Yes. The adapter fits both 4-inch octagon and single-gang electrical boxes, allowing flexibility in box selection based on site conditions.
Q: What is the thickness of the adapter plate?
A: The plate is 12 mm thick, a standard dimension that accommodates typical electrical box depths without protruding excessively into the ceiling cavity.
Q: Is the AM-51D suitable for outdoor installations?
A: No. This adapter is designed for indoor use. For outdoor dome mounting, use a Vivotek wall-mount or outdoor-rated junction box assembly with an appropriate outdoor adapter.
Q: What mounting hardware is included?
A: Refer to the manufacturer datasheet for complete package contents and hardware specifications.
Q: How much weight can the AM-51D support?
A: The adapter and electrical box together support the weight of the mounted dome (typically under 1 kg for Vivotek models in this family). Verify your camera's weight against the electrical box's rated load capacity.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Vivotek AM-51D is a straightforward but essential piece of infrastructure when you're anchoring dome cameras to existing electrical boxes. The 130 mm circular footprint and 12 mm depth are precisely calibrated to fit standard drop ceilings without requiring ceiling reinforcement or custom fabrication. In retrofit scenarios — especially across retail and office chains — this translates to predictable labor costs and fewer field delays.
Technical Highlights:
- SECC Steel with Electrolytic Coating: Corrosion resistance is adequate for controlled indoor environments with normal humidity swings. The coating prevents rust creep at bolt penetrations and maintains appearance over years of use without maintenance.
- Circular Profile (Ø 130 mm): Dimensionally optimized to sit flush with standard electrical box diameter, minimizing overhang and visual clutter in customer-facing spaces like retail floors and lobbies.
- Model-Specific Compatibility: Not a universal adapter — the AM-51D works with four specific Vivotek dome models. Cross-check your procurement list against the FD9189-H(T)-v2, FD9368-HTV, FD9388-HTV, and FD9389-EH(T)V-v2 models before bulk ordering.
Deployment Considerations:
- Electrical Box Structural Load: Verify that your electrical boxes are properly anchored and rated for camera load. Oversized octagon boxes (with deeper flanges) provide better cable management but may require washers or spacers if mounting studs are recessed.
- Cable Entry Planning: The adapter provides a single mount point but does not include cable glands or strain relief. Plan your cabling run — typically through the electrical box knockouts — before installation to avoid pinched or damaged cables.
- Indoor-Only Design: The SECC coating offers modest corrosion resistance for dry indoor spaces. If your installation sits near HVAC condensation zones or high-humidity areas, inspect periodically or apply a conformal sealant during commissioning.
The AM-51D shines in multi-location retail deployments and office retrofits where existing electrical infrastructure is already in place and you need a fast, repeatable camera mount. It eliminates custom fabrication work and reduces variance across sites — a real efficiency gain when rolling out dozens of locations. For single-location custom builds or outdoor exposures, you'll want to evaluate alternatives.
