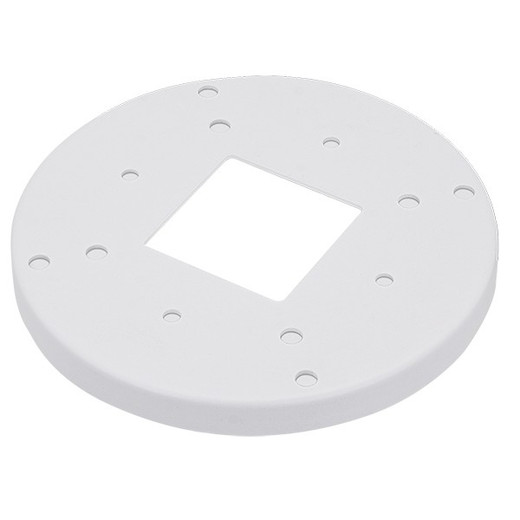

Vivotek AM-514_V01 4-Inch Single Gang Box Adapter Plate
The Vivotek AM-514_V01 is a mounting adapter designed to integrate dome cameras from the Vivotek IP camera line into standard electrical boxes and single gang wall outlets. This accessory eliminates the need for custom drilling, recessed housings, or additional structural modifications — a real advantage when retrofitting existing facilities or working within strict aesthetic guidelines.
Key Features
- Direct Single Gang Box Compatibility: Mounts directly to 4-inch electrical boxes without adapters or fabrication, cutting installation labor on retrofit projects where infrastructure is already in place.
- 136mm Diameter Footprint: Compact enough to fit standard wall gang spacing (typically 85–100mm apart), so you can deploy cameras at regular intervals without repositioning wiring or conduit.
- SECC Steel Construction: Electrolytic chromium-coated steel resists corrosion and maintains structural integrity under thermal cycling — important for long-term reliability in commercial and educational facilities.
- 12mm Thickness: Rigid enough to support dome camera weight and vibration without flexing, ensuring stable mounting and consistent frame geometry over time.
- White Finish: Blends visually with ceiling or wall surfaces, minimizing visual clutter in retail, office, and educational environments where camera visibility affects occupant comfort.
- 230g Weight: Lightweight enough to mount on drywall anchors or standard box screws without requiring reinforcement, reducing installation complexity and cost.
- Universal Dome Camera Fit: Works across multiple compatible dome camera models within the Vivotek family, simplifying spare parts inventory and reducing SKU proliferation across multi-site deployments.
Integration & Compatibility
The AM-514_V01 (often searched as AM 514_V01) is intended for use with standard 4-inch single gang electrical boxes in drywall or suspended-ceiling installations. Verify dome camera model compatibility before purchase — the adapter is designed for Vivotek dome cameras with standard mounting collars. For non-standard or heavy dome models, contact the camera manufacturer to confirm compatibility. This adapter does not support bullet or turret form factors.
Deployment Scenarios
The AM-514 excels in new construction and retrofit installations where electrical infrastructure is already present. Common applications include retail ceiling grids (where existing lighting or outlet boxes provide anchor points), office spaces (minimizing wall damage and aesthetic disruption), educational facilities (allowing staged camera deployment without structural changes), and commercial buildings undergoing incremental security upgrades. Skip this adapter if you need a flush ceiling mount or if your facility lacks accessible electrical boxes at desired camera locations.
Frequently Asked Questions
Q: Does the AM-514_V01 work with non-Vivotek dome cameras?
A: No. The AM-514 is engineered for Vivotek dome cameras with standard mounting collars. Using it with other brands may result in misalignment, instability, or camera damage. Verify your specific camera model with Vivotek before ordering.
Q: Can I install the AM-514 on plasterboard or old concrete ceilings?
A: Yes, on plasterboard with appropriate anchors (typically supplied separately). On concrete, you'll need a recessed electrical box or specialized fasteners. Standard drywall installation requires only the box and standard 1.25-inch screws.
Q: What's the maximum dome camera weight the AM-514 can support?
A: The adapter itself is rated for standard Vivotek compact dome weights (typically 300–500g). Check your specific camera datasheet for weight. Oversized or heavy domes may require a dedicated wall bracket or pole mount instead.
Q: Will the white finish show dust or marks?
A: Yes. In dusty environments (warehouses, industrial sites), the white SECC steel will collect particulate. Plan for periodic cleaning or consider alternate mounting methods in high-dust areas.
Q: Is the AM-514 suitable for outdoor use?
A: The adapter itself is not rated for outdoor exposure. SECC steel handles weathering better than zinc-plated steel, but use only indoors or under covered eaves. For outdoor dome cameras, mount with an outdoor electrical box and weatherproof trim ring.
Q: How long does installation typically take?
A: With an existing 4-inch electrical box and compatible dome camera, installation is 10–15 minutes per unit: position adapter, secure with box screws, route camera cable down the existing conduit, and mount dome. No drilling or custom fabrication required.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Vivotek AM-514_V01 is a straightforward mounting plate that solves a specific problem: how to integrate dome cameras into existing electrical infrastructure without custom fabrication. The 136mm diameter and 12mm steel thickness are the key specs here — they define whether this adapter fits your ceiling grid spacing and whether it'll hold a dome camera stable over years of thermal cycling. I've seen installers skip this and use bracket kits instead, which works but costs more labor time and creates visual clutter.
Technical Highlights:
- SECC Steel with Chromium Coating: Corrosion resistance matters in commercial environments with humidity or thermal swings. Uncoated steel will rust; this won't — a $15 detail that prevents premature replacement.
- 136mm Diameter at 12mm Thickness: Rigid enough to prevent flex under a 300–500g dome camera, which means no creep in image framing over time. Standard aluminum adapters under 1.5mm will sag; this won't.
- White Finish for Aesthetic Integration: In office and retail, visible hardware is noise. The white coating keeps the adapter invisible against most ceiling tiles and drywall — real advantage over black or unpainted steel.
Deployment Considerations:
- Verify your dome camera is Vivotek and that your facility actually has accessible 4-inch electrical boxes at camera locations. Retrofitting a warehouse with exposed ceiling and no conduit means this adapter won't save you labor — you'll need a pendant mount or pole kit instead.
- The white finish will show dust in 6–12 months in any environment with particulate (HVAC, loading dock, storage areas). Budget for periodic wipe-down or accept aesthetic drift.
Deploy the AM-514_V01 when you have existing single-gang electrical infrastructure and are rolling out Vivotek domes across a multi-story office or retail facility. Installers will finish 10–15 minutes per unit without custom drilling. Skip it if your deployment involves non-standard boxes, suspended cable runs, or outdoor exposure.
