Comelit 6742W Vip Mini HF WiFi POE Monitor
Overview

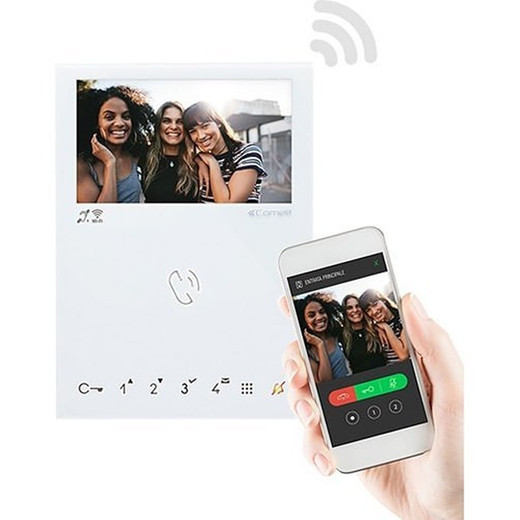

The Comelit 6742W is a 4.3-inch handsfree color monitor designed as the on-site user interface for Comelit's ViP video entry system. Dual connectivity—WiFi and Power-over-Ethernet (POE)—means you can deploy it without running dedicated power or network cabling; the device draws power from standard 802.3af POE and includes an integral WiFi gateway to forward incoming calls and video to mobile devices running the Comelit app. The 480x272 pixel (16:9) display and H.264 compression are matched to typical entry-phone resolution requirements, keeping bandwidth modest for both local and remote streaming. Eight soft-touch keys—audio activation, lock release, privacy toggle, doctor function, and four programmable keys—let facility staff operate the system without menu navigation for routine tasks. The compact 115×160×22mm form factor makes it suitable for wall mount in foyers, reception areas, or auxiliary entry points where space is limited.
Compatibility
The 6742W is a dedicated component of the Comelit ViP system. It integrates with Comelit ViP power supplies and switches, and functions as a gateway device for the ViP ecosystem—routing video and audio entry calls to smartphones and tablets via the Comelit mobile app. The device is compatible with standard ViP door stations, keypads, and access control modules within the ViP product line. Confirm your specific ViP system generation and switch model with Comelit documentation to ensure proper firmware and protocol alignment.
Installation Notes
The 6742W mounts to a standard wall box using the included template. Provide POE (802.3af, drawing under 6W typically) from a ViP-compatible switch or a dedicated POE injector. The device includes three programmable input terminals for external sensors or signals. WiFi setup requires pairing with your facility network; the unit includes an internal antenna. Backlight brightness and key feedback volume are adjustable via the on-screen menu. An induction loop with T position supports hearing-aid compatibility, and built-in answerphone functionality allows message recording when the monitor is unattended.
What's in the Box
- 1× Comelit 6742W monitor unit
- 1× wall mounting template
- Induction loop accessory
