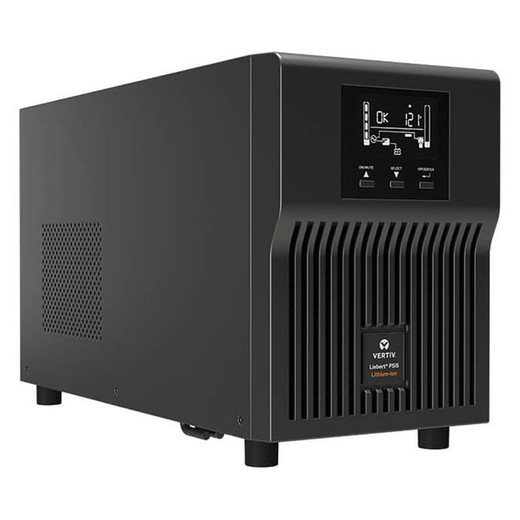

Vertiv PSI5-1500MT120LI 1500VA/1350W Lithium-Ion Line-Interactive UPS
Overview
The Vertiv PSI5-1500MT120LI is a 1500VA / 1350W line-interactive UPS built around a lithium-ion battery — a meaningful departure from the sealed lead-acid (SLA) packs that dominate this power class. The unit delivers pure sinewave output on battery, which matters for active PFC power supplies found in modern NVRs, servers, and workstations where a stepped-approximation waveform causes instability or premature shutdown. If your surveillance infrastructure or network core has grown past the point where a generic office UPS provides adequate runtime or output quality, the PSI5-1500MT120LI is worth a hard look.
The line-interactive topology means automatic voltage regulation (AVR) corrects brownouts and swells — input range of 75–146VAC — without switching to battery every time voltage sags. For environments where utility power fluctuates but outright failures are rare, this dramatically extends battery cycle life compared to online double-conversion units that run the battery continuously.
Key Features
- 1500VA / 1350W Capacity: At a 0.9 power factor, nearly all rated volt-amps convert to usable watts — typical for a well-matched load. Size this against your attached equipment's combined wattage draw; 1350W gives meaningful headroom for a mid-density NVR stack, PoE switch, and access control hardware without pushing the UPS above 80% load, which is the recommended operating ceiling for runtime and heat management.
- Pure Sinewave Output on Battery: Active PFC power supplies — standard in today's enterprise NVRs, edge servers, and managed switches — can fault or shut down when fed a simulated (stepped) sinewave during a transfer. The PSI5-1500MT120LI eliminates that risk entirely. This is not a marketing claim; it's a compatibility requirement for the load types this unit typically powers.
- Lithium-Ion Battery Chemistry: Li-ion packs charge faster, hold charge longer between uses, operate across a wider temperature range, and carry a longer expected service life than comparable SLA batteries. For sites with infrequent power events, SLA self-discharge becomes a real operational problem — Li-ion mitigates this without requiring quarterly manual testing cycles.
- Line-Interactive AVR — 75–146VAC Input Range: The UPS corrects voltage deviations within this window using the built-in transformer, sparing the battery for true outages. A 120VAC nominal site that sags to 95VAC during peak load is corrected on the fly rather than triggering a battery transfer. This extends battery life and reduces transfer-induced micro-outages on sensitive downstream equipment.
- Hot-Swappable Battery Kits via Front Access: Battery replacement does not require powering down attached equipment or pulling the unit from a rack. Front-access service is a significant operational advantage in a data closet or IDF where rear-access means dismounting the unit. Pair with Vertiv-matched battery kits to maintain UL 1778 listing continuity.
- Rotatable LCD Control Panel: The display reorients for both rack-mount and tower orientations, so you can read load percentage, input/output voltage, estimated runtime, and fault codes without craning your neck regardless of how the unit is installed. Small detail — but useful in IDF closets where the UPS ends up at ankle height.
- 6 × NEMA 5-15R Output Receptacles: Six outlets on a single 1500VA unit provides flexibility for distributing load across NVR, switch, access control panel, and ancillary gear without a downstream PDU. Input is NEMA 5-15P standard — no special circuit required for 120VAC installations.
- Output Voltage Selectable: 100/110/115/120/125VAC: User-adjustable output voltage accommodates equipment with narrow input tolerances or international gear running on step-down transformers. Default is 120VAC; field-adjustable without tools via the LCD interface.
- 98.5% Efficiency: A 0.985 efficiency rating means minimal heat generation and low idle-state energy draw — relevant in sealed network closets where every watt of dissipated heat raises ambient temperature and affects attached equipment longevity.
- USB + EPO + Optional IntelliSlot™ UNITY: USB provides basic monitoring and graceful shutdown integration with most OS environments. The EPO (Emergency Power Off) connector supports building-level safety systems that require instant UPS shutdown. For full SNMP and web-based management, the optional Liebert IntelliSlot UNITY communications card integrates with most enterprise NMS platforms including SNMP-based monitoring and Vertiv's own management tools.
- UL 1778, c-UL-us, FCC Part 15 Class B, UN38.3 Listed: UL 1778 covers UPS systems for IT equipment — the correct listing for data and surveillance infrastructure rather than consumer CE marks. UN38.3 certifies the lithium-ion cells for transport, relevant for procurement teams that need to document compliance in shipping records. FCC Class B confirms the unit won't introduce EMI that could affect co-located sensitive electronics.
Integration & Compatibility
The PSI5-1500MT120LI ships with USB connectivity for immediate graceful-shutdown integration via PowerChute or compatible NUT-based Linux utilities. Full SNMP and web management — including trap generation, remote load-shedding, and integration with enterprise network monitoring platforms — requires the optional Liebert IntelliSlot UNITY communications card, which installs into the dedicated expansion slot without interrupting connected load. The EPO connector accepts a normally-open dry contact from fire suppression panels or building management systems that require immediate UPS shutdown on trigger.
The PSI5-1500MT120LI (often searched as PSI5 1500MT120LI) is offered in a tower/rack-convertible form factor. Vertiv offers optional rackmount conversion hardware for 2U deployment in standard 19-inch racks, though confirm the current accessory kit against the active SKU before ordering. Operating temperature range of 32°–104°F (0°–40°C) suits conditioned data closets and climate-controlled IDF rooms; ambient temperature above 40°C will derate runtime and accelerate battery aging regardless of chemistry.
Frequently Asked Questions
Q: Does the PSI5-1500MT120LI produce a pure sinewave output when running on battery?
A: Yes. The PSI5-1500MT120LI delivers pure sinewave output on battery, making it compatible with active PFC power supplies found in modern NVRs, servers, and managed switches that can fault or shut down on stepped-approximation waveforms.
Q: What is the input voltage tolerance of the PSI5-1500MT120LI?
A: The line-interactive AVR stage accepts input from 75VAC to 146VAC (nominal 120VAC) and corrects deviations within that range without switching to battery. Only voltages outside this window trigger a battery transfer.
Q: Can I replace the battery without shutting down attached equipment?
A: Yes. The PSI5-1500MT120LI supports front-access hot-swappable battery replacement, so you can swap the battery kit while the unit continues powering connected load — no planned downtime required.
Q: Does the PSI5-1500MT120LI support SNMP monitoring?
A: SNMP and web-based management are available with the optional Liebert IntelliSlot UNITY communications card, which is not included in the base unit. USB monitoring is included standard for basic graceful-shutdown integration.
Q: What output receptacles does the PSI5-1500MT120LI provide?
A: The unit provides six NEMA 5-15R output receptacles and draws power via a NEMA 5-15P input plug — standard 120VAC household/commercial circuit compatible, no dedicated circuit required.
Q: Is the PSI5-1500MT120LI rack-mountable?
A: The unit ships in a tower orientation with a rotatable LCD that also supports rack installation. The control panel reorients so display readout remains legible in either mounting configuration. Verify current rackmount conversion hardware availability for 19-inch rack deployment.
The PSI5-1500MT120LI sits in a spot I recommend often for mid-density surveillance closets: enough capacity at 1350W to cover an NVR, a PoE switch, and an access control panel under one UPS, with lithium-ion chemistry that actually holds up between power events rather than quietly sulfating like an SLA pack that hasn't cycled in eight months. The 98.5% efficiency rating keeps heat output low — that matters more than it sounds in a sealed IDF cabinet where thermal margin is already tight.
Technical Highlights:
- 75–146VAC AVR Window: Line-interactive correction handles the brownout range (down to 75VAC) without burning battery cycles — critical in older commercial buildings where utility voltage regularly sags during HVAC load peaks.
- Pure Sinewave on Battery: Not optional for active PFC loads. Any NVR or switch with a modern power supply spec sheet will show PFC correction; a stepped-approximation UPS output creates a compliance mismatch that shows up as unexpected reboots under load transfer.
- Hot-Swap Front Access: In a populated rack, rear-access battery service means a full unit pull. Front-access on the PSI5-1500MT120LI means a battery swap is a 10-minute scheduled task, not a 2-hour unplanned maintenance window.
Deployment Considerations:
- The IntelliSlot UNITY card is not included — budget for it separately if your NMS requires SNMP trap integration or you need remote load-shedding during extended outages. USB-only monitoring is adequate for single-site graceful shutdown but not for multi-site NOC visibility.
- Operating temperature ceiling is 40°C (104°F). Li-ion handles temperature variance better than SLA, but closets without active cooling that spike above 40°C ambient will still derate runtime — verify your thermal envelope before skipping a rack cooling audit.
For a distributed surveillance deployment — think a regional retail chain or a campus IDF room running a 16–32 channel NVR plus switching infrastructure — the PSI5-1500MT120LI's combination of hot-swap service, pure sine output, and Li-ion reliability makes it a defensible choice over a cheaper SLA unit when total cost of ownership over a 5-year refresh cycle is on the table.
