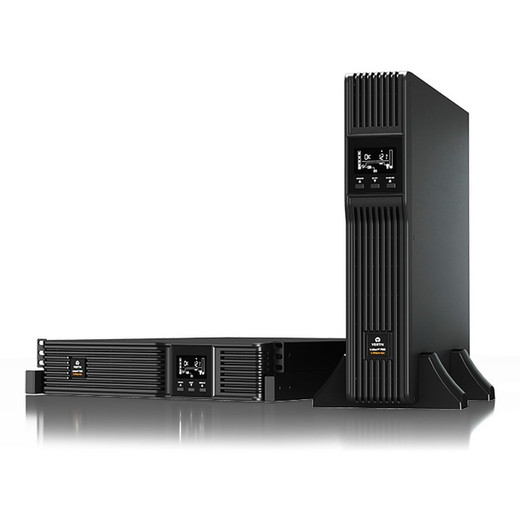

Vertiv PSI5-1500RT120LITAA 1500VA Lithium-Ion Line-Interactive Rack/Tower UPS
Overview
The Vertiv PSI5-1500RT120LITAA is a 1500VA line-interactive UPS built around a lithium-ion battery chemistry — a deliberate engineering choice that pays off in weight, cycle life, and long-term TCO for deployments where lead-acid packs have historically been a maintenance headache. At 28.3 lbs in a 2U rack footprint (17.2 in wide × 16.2 in deep × 3.4 in tall), it fits standard 19-inch racks without consuming excessive U-space, and it converts between rack and tower orientation without tools — the LCD control panel rotates to match.
This unit carries TAA (Trade Agreements Act) compliance, which matters for federal, state, and education procurement programs where country-of-origin rules apply. If TAA is a line-item requirement on your purchase order, the PSI5-1500RT120LITAA checks that box without requiring a separate waiver or substitution.
For Vertiv UPS and power protection products, this model sits in the PSI5 family — the lithium-ion variant of the proven PSI5 line, targeted at environments where battery service intervals and replacement costs are a real operational concern.
Key Features
- Lithium-Ion Battery Chemistry: Li-ion cells outlast traditional VRLA lead-acid batteries significantly in both cycle count and calendar life. For surveillance server rooms or edge networking closets running 24/7, that translates directly to fewer battery swap events — and front-access hot-swappable battery kits mean swaps happen without pulling the unit from the rack or dropping protected loads.
- Line-Interactive Topology with AVR: The automatic voltage regulation circuit corrects input sags (down to 75VAC) and surges (up to 146VAC) without switching to battery. In environments with chronic undervoltage — older commercial buildings, branch circuits shared with HVAC, or generator-backed facilities with voltage instability during transfer — this keeps the battery reserved for actual outages rather than burning cycles on brownouts.
- 98% Efficiency in Normal Mode: Running at up to 98% efficiency in normal mode means minimal heat dissipation and low operating cost. On a unit that may run continuously for years in a security operations center or a wiring closet, that efficiency number compounds. It also reduces the cooling load on the room, which matters in tight IDF spaces without dedicated CRAC units.
- Pure Sine Wave Output on Battery: When utility power fails and the unit transfers to battery, it delivers a pure sine wave — not a stepped approximation. Active PFC power supplies (common in modern servers, NVRs, and network switches) require a true sine wave to operate correctly. Simulated sine wave UPS units can cause these loads to fault, throttle, or fail. This unit eliminates that compatibility risk entirely.
- User-Selectable Output Voltage: Output defaults to 120VAC but can be set to 100, 110, 115, or 125VAC. If you're protecting equipment with tight input voltage tolerances, or running a mixed load that includes imported gear spec'd for slightly different nominal voltages, the flexibility to tune output is a practical advantage.
- Rotatable LCD Control Panel: The front-panel LCD rotates to stay readable whether the unit is installed in a rack or stood vertically as a tower. This is not a cosmetic feature — it means the same unit can serve in a rack cabinet in the data center and a pedestal installation in a wiring room without relabeling or reorientation confusion.
- Front-Access Hot-Swappable Battery: Battery replacement is handled from the front panel without removing the UPS from the rack. In environments where rear-access is obstructed by cable management or wall proximity, front serviceability is the difference between a 10-minute battery swap and a full rack shuffle.
- Optional IntelliSlot UNITY Communications Card: SNMP and web-based management are not built in — they require the optional Liebert IntelliSlot UNITY card. Once installed, the card enables remote monitoring, load management, and integration with network-managed UPS monitoring platforms. A USB port and EPO (Emergency Power Off) connector are included as standard interfaces regardless of the comms card.
- Safety Listings: UL 1778, c-UL-us Listed, FCC Part 15 Class B, NOM, and UN38.3 (the UN lithium battery transport certification). These aren't checkbox items — UL 1778 is the UPS safety standard required by many data center and commercial facility operators, and UN38.3 is necessary for safe shipping and air transport of lithium-ion equipment.
Integration and Compatibility
The PSI5-1500RT120LITAA operates on 120VAC nominal input with a wide range of 75–146VAC, covering virtually all North American single-phase branch circuits. The selectable output voltage (100/110/115/120/125VAC) makes it compatible with a broad range of protected equipment without modification.
Management integration depends on the optional Liebert IntelliSlot UNITY card, which enables SNMP and web management — the standard interfaces for integration with data center infrastructure management (DCIM) platforms and network management systems. Without the card, local management is via the front LCD and USB. The EPO connector supports facility-level emergency shutdown systems, which is a common requirement in raised-floor environments and code-compliant data rooms.
This unit is well-suited as protection for PoE network switches and edge compute equipment, NVR appliances, and access control servers in commercial security installations. The pure sine wave output ensures compatibility with the active PFC supplies in current-generation Axis, Hanwha, Hikvision, and similar NVR platforms.
For installations requiring a longer runtime or higher VA capacity, consider pairing this unit with an external battery cabinet or stepping up to a higher-capacity model in the Vertiv Liebert PSI5 family. The lithium-ion chemistry also means the unit will tolerate higher ambient temperatures better than lead-acid alternatives — the 32°F to 104°F (0°C to 40°C) operating range covers typical commercial facility conditions, including some IT closets that run warm.
Frequently Asked Questions
Q: Is the PSI5-1500RT120LITAA TAA compliant?
A: Yes. The PSI5-1500RT120LITAA carries TAA (Trade Agreements Act) compliance, making it eligible for federal, state, and education procurement programs with country-of-origin requirements.
Q: Does the PSI5-1500RT120LITAA output a pure sine wave on battery?
A: Yes. The unit delivers a pure sine wave output when running on battery power. This is required for compatibility with active PFC power supplies found in modern servers, NVRs, and network switches — simulated sine wave units can cause these loads to fault or shut down.
Q: Does SNMP management come standard, or is it an add-on?
A: SNMP and web management require the optional Liebert IntelliSlot UNITY communications card, which is not included by default. The standard unit includes USB and an EPO connector. The IntelliSlot UNITY card is sold separately and installs into the expansion slot on the unit.
Q: Can the battery be replaced without taking the UPS offline or removing it from the rack?
A: The PSI5-1500RT120LITAA supports hot-swappable battery replacement via front-panel access. You can swap battery kits without pulling the unit from the rack. Whether the swap requires dropping the load depends on your specific installation and local procedures — consult the Vertiv service documentation for your site's requirements.
Q: What input voltage range does the PSI5-1500RT120LITAA accept without switching to battery?
A: The automatic voltage regulation circuit handles input from 75VAC to 146VAC (nominal 120VAC) in line-interactive mode, correcting sags and surges without drawing on the battery. Only outages or extreme deviations outside that range trigger a battery transfer.
Q: Can the PSI5-1500RT120LITAA be installed as either a rack unit or a tower?
A: Yes. The unit supports both rack-mount and tower (pedestal) installation. The front LCD panel is rotatable so it remains readable in either orientation.
The spec I keep coming back to on the PSI5-1500RT120LITAA is the 98% normal-mode efficiency combined with lithium-ion chemistry — that pairing isn't just about operating cost, it fundamentally changes the maintenance calculus for security infrastructure deployments where you're managing dozens of UPS units across distributed sites. Lead-acid packs at a 3–5 year replacement interval across a 50-site deployment are a logistics problem. Li-ion changes that equation substantially.
Technical Highlights:
- 75–146VAC Input Range (AVR): That 71VAC spread means this unit will ride through the kind of brownout conditions common in older commercial facilities and generator-backed sites during transfer transients — without touching the battery. In surveillance deployments where you're protecting NVRs that must keep recording through utility events, keeping the battery in reserve for true outages is the right behavior.
- Pure Sine Wave on Battery: Current-generation NVR appliances and managed PoE switches almost universally use active PFC supplies. Feeding a stepped sine wave to those loads risks fault states or throttling at exactly the moment you need continuity — during a power event. Pure sine wave eliminates that risk entirely, which is why this topology matters for security infrastructure specifically.
- Front-Access Hot-Swap + Rotatable LCD: These two features together matter most in IDF closets and wall-mount rack enclosures with limited rear clearance. Front serviceability means battery maintenance doesn't require a rack shuffle, and the rotating LCD means the unit reads correctly whether it's sitting on a shelf as a tower or installed in a rack — no ambiguity during a 2am outage response.
Deployment Considerations:
- SNMP monitoring is not included out of the box — budget for the Liebert IntelliSlot UNITY card if your NOC or DCIM platform needs remote visibility. A UPS you can't monitor remotely is a UPS that surprises you. Factor that card into the BOM from the start.
- The 3.4-inch height is a true 2U form factor. Verify your rack's available U-space before ordering — in fully populated security racks with patch panels, KVM drawers, and NVR appliances, 2U is not always available where you need it.
This unit is the right call for a regional security operations center or a multi-camera NVR deployment in a commercial building with aging electrical infrastructure — specifically where TAA compliance is required for procurement and where you want to defer battery replacement cycles beyond the 3-year lead-acid window.
