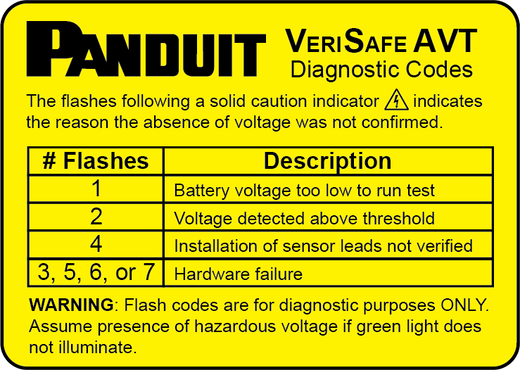

Panduit VS-AVT-DL VeriSafe AVT Diagnostic Codes Label

The Panduit VS-AVT-DL provides at-a-glance reference for VeriSafe Absence of Voltage Tester flash codes, eliminating troubleshooting delays when electricians and maintenance technicians encounter diagnostic indicators during lockout/tagout procedures. Designed for permanent placement on control panel doors adjacent to installed VeriSafe AVT units, this 5-pack of high-visibility yellow labels translates LED flash sequences into plain-English fault conditions—critical when verifying zero-energy state on 600V systems before beginning work. Each label measures 2.45" × 2.74", sized to fit standard electrical enclosure door real estate without obstructing viewing windows or interfering with adjacent instrumentation.

Key Features

Flash code translation matrix for VeriSafe AVT LED diagnostic sequences

High-visibility yellow background for quick location in dimly lit electrical rooms

2.45" × 2.74" (62.12 mm × 44.09 mm) footprint fits standard control panel door clearances

English-language text for North American industrial and commercial installations

5 labels per package supports multi-panel installations or replacement inventory

Designed for permanent adhesive mounting on painted steel, powder-coated aluminum, and polycarbonate enclosure surfaces

Durable construction for harsh electrical room environments (temperature extremes, humidity, dust)

VeriSafe AVT units communicate system status, fault conditions, and verification results through multi-color LED flash patterns—a design choice that eliminates the need for displays vulnerable to arc flash damage but requires operators to interpret sequences under time pressure. The VS-AVT-DL label decodes these patterns on-site: single flash versus double flash, red versus green, slow blink versus rapid blink. For integrators deploying VeriSafe systems across substations, switchgear rooms, or industrial control installations, including this label in the bill of materials ensures that any qualified electrician—not just the original installer—can diagnose AVT behavior during emergency shutdowns or routine maintenance without consulting manuals stored off-site. The label's yellow substrate provides contrast against typical gray, white, or beige electrical enclosures, reducing search time when technicians need to verify tester status before approaching energized conductors.

Typical installations place the label within 12 inches of the VeriSafe AVT mounting location, positioned so the label remains visible when the enclosure door is fully open and secured in the hold-open position. This proximity matters during lockout/tagout workflows: the technician performing voltage verification stands at the open door, observes the AVT LED behavior, cross-references the label, and makes the go/no-go decision without moving between locations or handling reference documents with gloved hands. For multi-voltage installations where a single panel houses both 480V and 600V circuits, each with dedicated AVT units, the 5-pack quantity supports labeling multiple testers while maintaining spares for future panel additions. The label's adhesive backing is formulated for long-term bond strength on surfaces common to NEMA-rated enclosures, resisting peel caused by temperature cycling, humidity, and vibration from adjacent motor loads.

Compliance-conscious facilities appreciate that NFPA 70E emphasizes verification of absence of voltage as a non-negotiable step before establishing an electrically safe work condition. The VS-AVT-DL label supports this requirement by reducing interpretation errors during the verification step—particularly important when contract maintenance personnel or newly trained electricians encounter VeriSafe equipment for the first time. Unlike generic voltage tester accessories, this label is engineered specifically for VeriSafe AVT flash code logic, ensuring the decode matrix matches the firmware behavior of Panduit's tester family rather than presenting ambiguous guidance drawn from other manufacturers' products.
