Panduit VS-AVT-C02-L03A VeriSafe Voltage Tester

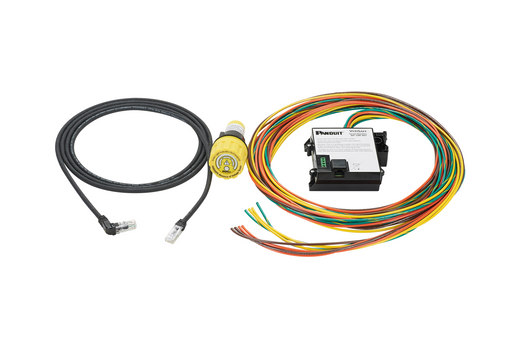

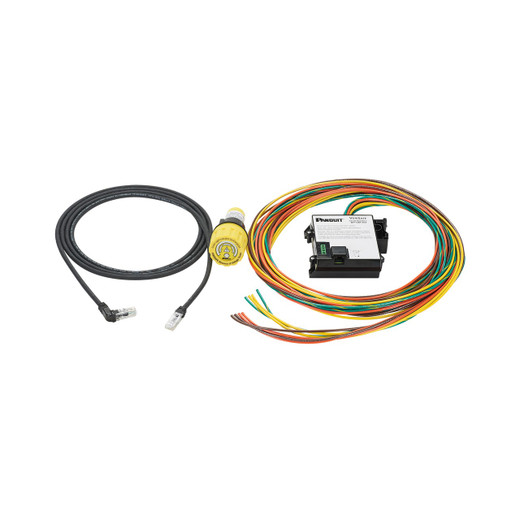

Panduit VS-AVT-C02-L03A VeriSafe Absence of Voltage Tester

Electrical work on de-energized circuits demands verifiable proof that voltage is absent before technicians contact conductors. The Panduit VS-AVT-C02-L03A delivers UL1436-certified absence-of-voltage verification for lockout/tagout procedures in commercial security, datacenter, and industrial electrical installations. Part of Panduit's VeriSafe system, this tester provides documented proof of zero-energy state, meeting OSHA 1910.147 and NFPA 70E requirements that integrators face during panel commissioning, UPS maintenance, and circuit modifications. Unlike basic voltage detectors, this instrument is rated to IEC 61508 functional safety standards, ensuring the tester itself cannot fail in a mode that would indicate "safe" when voltage is present.

Key Features

• UL1436 certified for absence of voltage testing — meets OSHA lockout/tagout verification requirements
• IEC 61508 functional safety rating ensures fail-safe operation during critical safety procedures
• Multi-standard compliance: UL 508, CSA C22.2 NO.14-13, IEC 61010-1, IEC 61010-2-030, UL 50E
• VeriSafe system integration for comprehensive electrical safety workflows
• Designed for measurement categories typical in commercial power distribution and control panels

Absence of voltage testers fill a specific gap in electrical safety protocols. Circuit breakers can fail, switches can be mislabeled, and backfeed conditions can energize supposedly dead circuits. The VS-AVT-C02-L03A performs three-point verification: it tests the instrument on a known live source, tests the target circuit for absence of voltage, then re-tests the instrument on the known live source to confirm the tester didn't fail during the critical measurement. This before-test-after sequence is the foundation of UL1436 certification and is explicitly required by NFPA 70E for qualified electrical workers. The IEC 61508 functional safety rating means the device architecture—sensor redundancy, self-diagnostics, failure mode analysis—has been validated to prevent dangerous false negatives. For integrators working on access control panels, PoE switch installations, or fire alarm power supplies, this level of assurance eliminates the liability of a technician contacting live conductors because a cheap voltage stick gave a false "safe" indication.

Deployment context matters. During new security system commissioning, integrators often work in energized electrical rooms where adjacent circuits remain live. When adding a dedicated 20A circuit for an NVR rack or tapping a subpanel for PoE switch power, the absence-of-voltage tester verifies the specific conductors are dead before stripping wire or landing terminals. In retrofit scenarios—adding camera power to an existing panel, relocating a UPS, upgrading fire alarm battery strings—the tester documents compliance with the facility's lockout/tagout program. Datacenters and industrial sites increasingly require third-party certification of electrical safety procedures; the VS-AVT-C02-L03A's UL/IEC pedigree and VeriSafe system integration provide audit-trail documentation that satisfies insurance and regulatory requirements. The unit ships individually packaged (carton quantity 8 for distributor stock), making it practical for multi-site integrators to equip each field crew with a dedicated tester rather than sharing a single unit across teams.

UL 50E enclosure rating and IEC 61010-2-030 measurement standard indicate this tester is built for the electrical environment ratings and transient overvoltage conditions found in commercial power distribution. For security and AV integrators who wire their own circuits or modify building electrical to support IP camera PoE networks, access control door strikes, or centralized UPS systems, the VS-AVT-C02-L03A reduces both the physical risk to technicians and the legal exposure to contractors. VeriSafe system compatibility allows integration with Panduit's voltage detector and grounding components for a complete NFPA 70E-compliant workflow, directly addressing the "establish electrically safe work condition" mandate that applies any time an integrator opens a live panel to add a breaker or tap a bus.
