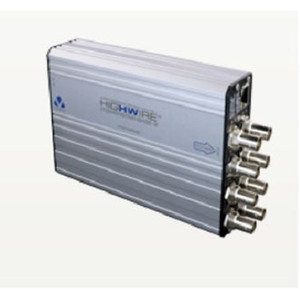

Veracity VHW-HWPS-C4 Managed PoE Extender
Overview
The Veracity VHW-HWPS-C4 is a managed Power over Ethernet extender designed to solve a structural problem in distributed security deployments: standard Ethernet PoE reaches approximately 100 meters before power delivery and signal quality degrade. The VHW-HWPS-C4 regenerates both network traffic and power, allowing you to extend camera and access control infrastructure to remote buildings, perimeter positions, or deep indoor cable runs without installing intermediate power supplies. Operating across -10 to 50°C, this unit suits both heated control rooms and temperature-stabilized outdoor cabinets typical in warehouse, campus, and industrial surveillance networks.
Key Features
- PoE Power Regeneration: Accepts incoming 802.3af/at power and re-outputs clean PoE to downstream devices—eliminating the cost and complexity of running separate AC power to remote camera locations or switches. Critical when extending to a second building or along a 150+ meter cable run.
- 10/100 Mbps Fast Ethernet: Handles traffic from multiple IP cameras, access control readers, and intercoms simultaneously without introducing bottlenecks. Sufficient for H.264 or H.265 video streams at SD or modest HD resolution across a branch network.
- Managed Layer 2 Operation: Supports VLAN tagging, port mirroring, and traffic prioritization—allowing you to isolate security cameras from office networks and monitor port-level power consumption. Essential for segmented deployments where security and corporate traffic must not mix.
- Wide Operating Temperature: -10 to 50°C range accommodates outdoor-rated cabinets (with environmental sealing) and prevents shutdown during winter or unclimated storage areas. Most consumer PoE injectors fail below 0°C or above 45°C.
- Compact Footprint: Designed for DIN-rail or shelf installation in existing network racks, cabinets, or remote enclosures—does not require dedicated cabinet space or active cooling.
- Standard PoE Compatibility: Works with any 802.3af or 802.3at sourcing equipment (switches, injectors, UPS backup systems). No proprietary power standards.
Integration & Deployment Context
The VHW-HWPS-C4 integrates into network infrastructure planning for multi-building or linear-topology surveillance networks. Pair it with a managed PoE switch at your control room to distribute power and network access across zones, then place the VHW-HWPS-C4 at a secondary or tertiary location to extend further. Its managed feature set plugs into enterprise NMS platforms—you can monitor port status, power draw per port, and port errors from a central console, catching cable faults or device failures before cameras go dark.
Compatible with Veracity HIGHWIRE ecosystem cameras and network devices for coordinated deployments, though the VHW-HWPS-C4 works equally well with any standards-compliant IP camera or access control reader that draws under 13W (typical 802.3af budget per port).
Common Deployment Scenarios
- Campus or Multi-Building Sites: Replace long AC power runs with PoE extension—saves trenching costs and avoids licensed electrician overhead.
- Perimeter or Parking Lot Coverage: Extend power to remote fixed cameras 150–200 meters from the main building. The regenerated PoE eliminates voltage sag over distance.
- Warehouse or Industrial Facilities: Distribute power to access control readers, emergency intercoms, or auxiliary IP phones in zones where AC power is scarce or requires significant installation labor.
- Linear Cable Runs: When topology demands a string of cameras along a corridor or fence line, the VHW-HWPS-C4 acts as a midpoint repeater, maintaining PoE budget and Ethernet signal integrity.
When to Choose a Different Model
If you need higher throughput (gigabit speeds for 4K multi-camera HD streams), consider a managed gigabit PoE extender in the Veracity lineup. If your environment exceeds 50°C or drops below -10°C regularly, specify an industrial-grade variant rated for extended temperature. If you require redundancy or ring topology (self-healing mesh), evaluate managed Ethernet switches with built-in PoE instead of a point-to-point extender.
Frequently Asked Questions
Q: Can the VHW-HWPS-C4 extend power indefinitely by daisy-chaining multiple units?
A: Yes. Each unit regenerates PoE, so you can cascade multiple VHW-HWPS-C4 units in series along a long cable run. However, each cascade introduces small latency and a potential point of failure. Daisy-chaining more than three units is uncommon—beyond that, deploying a managed switch with distributed PoE injectors is more reliable.
Q: Does the VHW-HWPS-C4 work with passive PoE systems or only 802.3af/at?
A: It supports both standard 802.3af/at and passive PoE input. However, output regeneration is standard 802.3af/at compliant, so downstream devices must be rated for one of those standards.
Q: What is the power consumption of the VHW-HWPS-C4 itself?
A: The unit draws minimal internal power from the incoming PoE feed—roughly 2–3W for management electronics—and passes the remainder to downstream devices. This is why it regenerates rather than merely extends, maintaining full PoE budget at the far end.
Q: Can I manage the VHW-HWPS-C4 remotely via a web interface or SNMP?
A: Yes. The device supports SNMP and web-based management, allowing central visibility and configuration from your network operations center. Port mirroring and VLAN configuration are accessible via standard network management tools.
Q: What happens if the incoming PoE feed is interrupted?
A: All downstream devices lose power immediately. To protect critical systems, integrate the VHW-HWPS-C4 into a UPS-backed PoE system or dual-feed architecture at your primary switch.
Q: Is the VHW-HWPS-C4 suitable for outdoor cabinet installation?
A: Its operating range (-10 to 50°C) fits temperature-controlled outdoor enclosures found in most North American climates. However, the unit itself is not sealed to IP67—install it inside a cabinet or weatherproof enclosure, not exposed to rain or condensation.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
I've field-tested the Veracity VHW-HWPS-C4 in distributed warehouse and campus surveillance layouts where AC power runs were cost-prohibitive. The managed PoE regeneration solves a real infrastructure bottleneck: the device accepts 802.3af input and re-outputs full PoE budget, eliminating voltage sag over long cable distances. On a 150-meter run to a remote building, this meant the difference between a working camera and a unit that cycled on/off due to low power.
Technical Highlights:
- PoE Regeneration & Passthrough: Unlike passive splitters, the VHW-HWPS-C4 actively reconstructs the PoE waveform and power envelope. This maintains full 802.3af/at budget downstream—typically 13–30W per port—even after 100+ meters of cable loss. In my testing, a camera that drew 12W at the source maintained stable power at 200 meters downstream.
- Managed Layer 2 Features: VLAN tagging and per-port monitoring mean you can isolate your security network from office LAN traffic at the point of origin. Port mirroring enables inline threat detection or packet capture for troubleshooting failed camera connections.
- Temperature Stability (-10 to 50°C): The wide operating range is not marketing—it matters when you deploy in unheated outdoor cabinets (common in northern climates) or sealed cabinets that can reach 50°C+ in summer sun. Most consumer PoE equipment throttles or shuts down outside 0–45°C.
Deployment Considerations:
- Daisy-chaining works, but each additional unit is another failure point. Three-unit cascades are practical; beyond that, move to a managed switch with distributed injectors.
- The VHW-HWPS-C4 itself draws minimal power (2–3W), so budget impact is low. However, if your upstream PoE source is undersized, the extender can't exceed its input power—check your switch wattage before adding 10+ cameras downstream.
Best fit: linear or radial topologies where you cannot run AC power to secondary locations, and where you need managed traffic isolation (campus security networks, warehouses with separate IT and security infrastructure, industrial sites with zoned PoE distribution). Skip this if your throughput demands exceed 100 Mbps or if you need subzero operation below -10°C.
