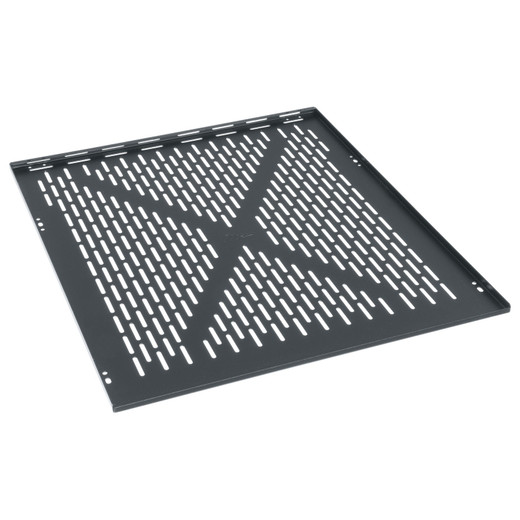

Middle Atlantic Vented KD Series Rackshelves Ship Ready-to-assemble TO Minimize Freight - KDB-20.5

Middle Atlantic KDB-20.5 Vented Knock-Down Utility Rackshelf

Overview

The Middle Atlantic KDB-20.5 is a single-rack-unit (1U) vented utility shelf built for AV and security rack installations where shipping costs and job-site assembly are practical concerns. At 20.5 inches deep and just 0.6 inches tall (1U), it ships knocked-down flat — reducing freight volume and the risk of damage in transit compared to pre-assembled shelves. Once on-site, it assembles without specialized tools, making it a practical choice for integrators staging racks at a central facility before delivery or assembling directly in the equipment room. If you're sourcing rack components across the Middle Atlantic catalog, the KDB series sits squarely in the utility-shelf tier: no frills, straightforward geometry, and a form factor that fits standard 19-inch EIA racks.

Key Features

• 20.5-Inch Depth: At 20.5 in (52.1 cm), this shelf accommodates mid-depth equipment — receivers, converters, small UPS units, and patch panels — without consuming the full depth of a deep rack cabinet. Know your equipment depth before ordering; 20.5 in is generous for most passive gear but may be tight for full-depth servers or large power supplies.
• Knock-Down Ship-Ready Design: The flat-pack configuration means the KDB-20.5 ships in significantly less volume than a comparable pre-assembled shelf. For integrators ordering multiple units or shipping rack systems to remote sites, that translates to lower freight costs per unit — a real line-item difference on larger deployments.
• 1U Form Factor (0.6 in / 1.5 cm Height): At 0.6 inches tall, this shelf consumes a single rack unit — the minimum footprint for a utility shelf. Rack space is finite; a 1U profile means one shelf does not push other equipment out of the enclosure.
• Standard 19-Inch Rack Width (17.31 in / 44 cm): The 17.31-inch (44 cm) panel width fits standard 19-inch rack accessories and EIA-310 compliant enclosures. No adapter brackets or custom modifications required for standard rack rails.
• Vented Deck: The vented surface allows passive airflow through the shelf, reducing heat buildup for equipment resting on it. In densely loaded racks where thermal management is a concern, venting matters — a solid shelf traps heat beneath equipment that relies on bottom-intake cooling.
• Lightweight at 7.8 lbs Shipping Weight: The 7.8 lb (3.5 kg) shipping weight keeps the total rack payload manageable. For ceiling-mounted or wall-mount rack enclosures where total weight is a structural factor, a lighter shelf is a meaningful spec — not just a convenience.

Integration and Compatibility

The KDB-20.5 is designed for standard 19-inch EIA rack enclosures. It integrates with rack enclosure systems that accept 1U shelf components, including wall-mount, free-standing, and rack-mounted cabinets. Integrators pairing this shelf with active equipment — switchers, media converters, signal processors — should verify that the equipment's airflow direction aligns with the shelf orientation and that adjacent rack-mounted gear does not block passive cooling through the vented deck. For security-specific rack builds involving NVRs, PoE switches, and patch panels, reviewing a rack planning guide before finalizing shelf placement will save adjustment time on-site. The knock-down design means assembly is required before use; confirm all hardware is present upon receipt before the installation crew is on-site.

Frequently Asked Questions

Q: What rack size does the KDB-20.5 fit?

A: The KDB-20.5 is designed for standard 19-inch EIA racks. Its panel width is 17.31 inches (44 cm), which is the standard mounting width for 19-inch rack systems. It occupies 1U of rack space at 0.6 inches tall.

Q: Does the KDB-20.5 arrive pre-assembled or does it require assembly?

A: The KDB-20.5 ships knocked-down (flat-packed) to minimize freight costs and transit damage risk. On-site assembly is required before installation in the rack.

Q: What is the depth of the KDB-20.5 shelf?

A: The usable depth is 20.5 inches (52.1 cm). This accommodates mid-depth equipment; verify your equipment's footprint against this dimension before ordering.

Q: Is the KDB-20.5 shelf vented?

A: Yes, the KDB-20.5 has a vented deck surface, which supports passive airflow and helps reduce heat buildup for equipment resting on the shelf.

Q: How much does the KDB-20.5 weigh?

A: The shipping weight is 7.8 lbs (3.5 kg). This is the packaged weight for freight estimation purposes.

Q: Can the KDB-20.5 be used in a wall-mount rack enclosure?

A: The KDB-20.5 is compatible with any standard 19-inch EIA enclosure, including wall-mount rack cabinets, provided the enclosure accepts 1U shelf components and has sufficient depth to accommodate 20.5 inches of shelf depth.

Jerry Tildsen

The KDB-20.5 is one of those parts that earns its place on a BOM not by being impressive, but by solving two real problems quietly: it ships flat to keep freight manageable, and that 20.5-inch depth hits the sweet spot for a wide range of passive and semi-active rack gear. I spec it regularly when a job involves multiple rack systems shipping to a remote site — the knock-down design means you're not paying to freight a box of air around a pre-assembled shelf.

Technical Highlights:

• 20.5 in Depth: Covers mid-depth equipment (media converters, small UPS units, cable managers) without forcing you into a deeper shelf that wastes rear rack space or conflicts with cable routing at the back of the enclosure.
• 1U / 0.6 in Height: At 0.6 inches, this shelf doesn't compress your rack unit count. On a 12U or 16U wall-mount enclosure where every U matters, a 1U shelf is the only acceptable profile for a utility platform.
• Vented Deck: Passive venting through the shelf surface keeps bottom-intake equipment from cooking itself. It's a small detail that matters when you're loading a rack with a mix of gear and don't have active airflow management built into the enclosure.

Deployment Considerations:

• Assembly is required on-site or at the staging facility — account for this in your installation schedule, especially if racks are being delivered fully loaded.
• The 20.5-inch depth is the spec to verify against your equipment list before ordering. It's generous for most signal-chain gear, but confirm clearance for any equipment with rear-protruding connectors or cable management requirements.

Best fit for security and AV integrators staging rack systems for multi-site deployments — particularly where freight costs are a line-item concern and 1U utility shelf space needs to support mid-depth passive or semi-active equipment.
