Middle Atlantic Vented Front Door Fits 16 Space DWR Series Racks Black Textured Powder - VFD-16

Middle Atlantic VFD-16 Vented Front Door for 16U DWR Series Racks

Overview

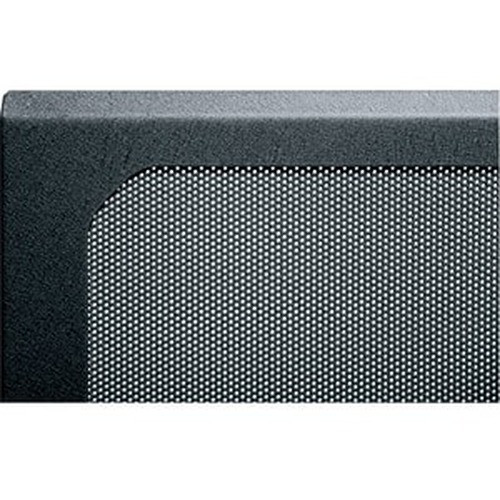

The Middle Atlantic VFD-16 is a vented front door engineered specifically for 16-space (16U) DWR series racks, replacing the standard solid door when thermal management inside the enclosure is a concern. At 28.87 inches tall and 20.04 inches wide, it fits the DWR footprint without modification — no drilling, no adapter plates. The textured black powder coat finish matches the DWR series aesthetic and holds up in typical AV equipment rooms, server closets, and rack-dense security head-end environments where doors get opened and closed repeatedly by installation crews and maintenance staff.

If you are running NVRs, servers, or high-density PoE switches inside a Middle Atlantic DWR rack and finding that the solid factory door is trapping heat, the VFD-16 (often searched as VFD 16) is the direct retrofit solution. It ships from the same product family, so compatibility is guaranteed by design rather than by guesswork.

Key Features

• 16U Height (28.87 in / 73.3 cm): Dimensioned to cover the full front opening of a 16-space DWR enclosure flush — no gaps at top or bottom that would defeat airflow management or look unprofessional in a finished installation.
• 25% Vent Open Area: One quarter of the door face is open perforation. That is enough passive airflow to meaningfully reduce heat buildup from mid-density NVR and switching equipment without requiring active cooling infrastructure. It is not a substitute for a blanking-panel strategy on unused rack spaces, but it removes the solid-door bottleneck in most low-to-mid thermal load scenarios.
• 20.04 in (50.9 cm) Width: Matches the DWR series rack width precisely — critical for latch engagement and for maintaining the rack's front-door seal plane across the full enclosure face.
• 1.39 in (3.5 cm) Depth: Shallow door profile means it clears standard rack-mount equipment handles, cable management panels, and front-mounted patch panels without contact. Useful in tight closets where door clearance to a wall or adjacent rack is limited.
• Textured Black Powder Coat Finish: The texture hides minor scuffs and fingerprints better than gloss black — practical in working equipment rooms where racks are accessed regularly. Finish matches the standard DWR series powder coat so the door does not stand out if you are mixing vented and solid doors on adjacent racks.
• DWR Series Compatibility by Design: This is a factory-engineered door for the DWR rack enclosure line, not an aftermarket fit. Mounting points, latch geometry, and hinge positions align with the DWR frame spec — no field modification required.
• 15.15 lb Shipping Weight (6.9 kg): Heavier than a solid sheet-metal door due to the reinforced perforation pattern. Factor this into ceiling or wall-mounted rack load calculations if the DWR is surface-mounted rather than floor-standing.

Integration & Compatibility

The VFD-16 is designed exclusively for the DWR (Depth-Adjustable Wall Rack) series from Middle Atlantic. It is not cross-compatible with WRK, ERK, or other Middle Atlantic rack families — door hinge and latch geometry differ between product lines. Before ordering, confirm your existing rack is a DWR-series enclosure and that it is a 16-space configuration. DWR racks in 8, 12, 20, and other rack-unit heights require the corresponding VFD variant sized for that enclosure.

For integrators spec'ing a full rack accessory package, the VFD-16 pairs with Middle Atlantic's rear door options, side panels, and rack shelves to complete the DWR enclosure build-out. If your deployment requires locking front access — common in public-facing AV installations or unattended security closets — verify whether the VFD-16 latch is compatible with Middle Atlantic's lock cylinder options for the DWR series, or whether a locking-door variant is the correct SKU for that requirement.

Integrators sourcing equipment for rack-mount network video recorders and switching gear should consider the 25% vent open area in the context of total enclosure heat load. For high-density GPU or compute equipment generating sustained heat, supplemental active cooling (rack-mount fan panels) is recommended alongside the vented door rather than treating the door alone as sufficient thermal management.

Frequently Asked Questions

Q: Which rack series does the VFD-16 fit?

A: The VFD-16 is designed for the Middle Atlantic DWR (Depth-Adjustable Wall Rack) series only. It is not compatible with WRK, ERK, or other Middle Atlantic rack families. Confirm your enclosure is a DWR-series 16-space rack before ordering.

Q: What is the vent open area percentage on the VFD-16?

A: The VFD-16 has a 25% vent open area. This provides meaningful passive airflow for low-to-mid density rack equipment but should be supplemented with active cooling (fan panels) for high-heat-load deployments.

Q: What are the exact dimensions of the VFD-16?

A: The VFD-16 measures 28.87 inches tall (73.3 cm), 20.04 inches wide (50.9 cm), and 1.39 inches deep (3.5 cm). Shipping weight is 15.15 lbs (6.9 kg).

Q: Can the VFD-16 be used on a 16U rack other than the DWR series?

A: No. The VFD-16 is engineered specifically for the DWR series. Hinge positions and latch geometry are DWR-specific. Using it on a non-DWR rack would require field modification and is not supported.

Q: Does the VFD-16 include a lock?

A: The available evidence does not confirm whether a lock cylinder is included or available as an option. Contact Middle Atlantic directly or confirm with your distributor before specifying this door for secured-access applications.

Q: What finish does the VFD-16 have?

A: The VFD-16 has a textured black powder coat finish, matching the standard DWR series rack aesthetic.

Karl Wilson

When I specify rack enclosures for security head-ends and AV equipment rooms, door selection comes up more often than it should. The Middle Atlantic VFD-16 solves a specific problem: you have a 16U DWR enclosure loaded with NVRs or PoE switches that run warm, and the solid factory door is acting as a heat trap. The 25% vent open area on this door is not marketing — it is a meaningful fraction of the front face open to convective airflow, and in a properly blanked rack it makes a real difference in sustained operating temperature without adding fan noise or a power circuit.

Technical Highlights:

• 25% Open Vent Area: Enough passive airflow to handle typical NVR and managed switch heat loads in a 16U enclosure without active cooling — but not a substitute for blanking unused rack spaces, which is where most of the benefit is lost in practice.
• 1.39 in Door Depth: Shallow enough to clear front-panel handles and cable management on most rack-mount gear. In wall-mount installations where door swing clearance to adjacent surfaces is tight, this dimension matters more than integrators usually expect.
• DWR-Specific Engineering: Hinge and latch geometry are matched to the DWR series frame — the door aligns and latches correctly without shimming or field modification, which matters when you are commissioning a rack in a finished wall cabinet and cannot afford to rework the enclosure.

Deployment Considerations:

• The VFD-16 fits only 16-space DWR enclosures — verify your rack's unit count before ordering. A 12U or 20U DWR requires a different VFD variant; the door height will not match otherwise.
• At 15.15 lbs shipping weight, the door itself adds to the enclosure's total load. For wall-mounted DWR installations, confirm your mounting substrate and hardware are rated for the combined rack, equipment, and door weight before final installation.

This door is the right call for security integrators building out 16U DWR enclosures in telecom closets and equipment rooms where NVR-heavy loads create sustained heat and the solid door option is no longer adequate — it is a direct, no-modification fit that resolves the thermal bottleneck without adding infrastructure.
