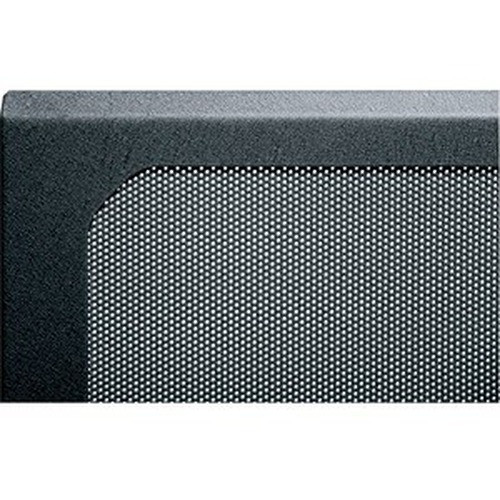

Middle Atlantic VFD-12 Vented Front Door for 12U DWR Series Racks
Overview
The Middle Atlantic VFD-12 is a replacement and upgrade front door designed specifically for 12-space (12U) DWR series racks. Measuring 21.87 in tall × 20.04 in wide × 1.39 in deep, it installs directly onto compatible DWR enclosures and ships in a textured black powder coat finish that blends with standard rack aesthetics in control rooms, AV equipment closets, and security head-end installations. If you're building out or retrofitting a Middle Atlantic rack system, the VFD-12 (often searched as VFD 12) gives you a finished front face with deliberate thermal relief built in — not an afterthought.
Key Features
- 25% Vent Open Area: A quarter of the door's face is open, allowing passive airflow across rack-mounted equipment without requiring additional fan panels in light-load deployments. For NVRs, patch panels, and low-density switching gear, this passive ventilation is often enough to keep operating temperatures in check without added noise or power draw.
- 12U / 12-Space Fit: Sized at 21.87 in height to precisely cover a 12-rack-unit DWR enclosure — no trimming, no shimming. If your rack is a DWR-series 12U, this door drops in without fitment guesswork.
- DWR Base Series Compatibility: The VFD-12 is engineered exclusively for the DWR series. Installing it on a non-DWR Middle Atlantic rack or a third-party enclosure is not supported — check your rack's series designation before ordering. This compatibility specificity is what ensures flush fitment and correct hinge engagement.
- Textured Black Powder Coat Finish: The powder coat is applied over steel for abrasion resistance and a consistent matte texture that resists fingerprints and minor scuffs — practical in environments where the rack sees regular access by technicians. It matches the standard DWR series finish so the door doesn't stand out as a replacement or add-on.
- Compact Door Profile at 1.39 in Depth: The door adds less than 1.5 inches to your rack's front clearance requirement. In tight closets or wall-recessed installations where every inch of standoff matters, that shallow profile keeps the overall rack footprint predictable.
- Shipping Weight 12.48 lbs: The door arrives at just over 12 lbs — heavy enough to indicate solid steel construction, light enough to handle and hang solo during installation without a second person on most standard-height racks.
Integration and Compatibility
The VFD-12 integrates exclusively with the Middle Atlantic DWR series rack enclosures in the 12U configuration. It is not a universal-fit door. If your installation uses a DWR-series 12U rack and you need to add, replace, or upgrade the front door — whether for aesthetics, access control, or improved airflow — this is the correct part. For deployments requiring a solid (non-vented) front door or a different rack space count, a different VFD variant or solid door from the Middle Atlantic line would apply. When planning rack cooling for higher-density installations, pairing this vented door with a rack cooling solution or exhaust fan panel helps manage thermals more actively. For complete rack build planning, the racks and enclosures category covers compatible Middle Atlantic chassis options.
Frequently Asked Questions
Q: What rack series is the VFD-12 compatible with?
A: The VFD-12 is designed specifically for the Middle Atlantic DWR series racks in the 12-space (12U) configuration. It is not designed for SWR, EWR, or non-Middle Atlantic enclosures.
Q: What is the vent open area percentage on the VFD-12?
A: The VFD-12 has a 25% vent open area, meaning one quarter of the door face is perforated to allow passive airflow to rack-mounted equipment.
Q: What are the physical dimensions of the VFD-12?
A: The VFD-12 measures 21.87 in (55.6 cm) tall, 20.04 in (50.9 cm) wide, and 1.39 in (3.5 cm) deep. Shipping weight is 12.48 lbs (5.7 kg).
Q: What finish does the VFD-12 come in?
A: The VFD-12 ships in a textured black powder coat finish, matching the standard DWR series rack aesthetic.
Q: Can the VFD-12 be used as a solid (non-vented) door?
A: No — the VFD-12 is a vented door with 25% open area. If your installation requires a solid front door for dust mitigation or security, a different Middle Atlantic door model would be required.
Q: Is the VFD-12 compatible with 12U racks from other manufacturers?
A: No. The VFD-12 is designed for Middle Atlantic DWR series enclosures only. Fit and hinge engagement are specific to that platform — it is not a universal rack door.
The VFD-12 is one of those parts that looks simple until you've ordered the wrong door for a DWR rack and had to ship it back. The key spec to confirm before ordering is the base series: this door is built for DWR-series 12U enclosures specifically, and the 21.87 in × 20.04 in footprint reflects that platform's exact frame dimensions — not a generic fit.
Technical Highlights:
- 25% Vent Open Area: For a 12U rack carrying NVRs, a PoE switch, and a UPS — typical in a small surveillance head-end — passive convection through 25% open area is generally sufficient to prevent thermal throttling, assuming adequate room ventilation. You won't need to add active fan panels for that load profile.
- 1.39 in Door Depth: In wall-recessed or closet-mounted DWR installations where front clearance is constrained, the sub-1.5 in door profile means you can swing the door open in tighter spaces than a deeper door design would allow.
- 12.48 lb Shipping Weight: The steel construction is evident in the weight — this is not a thin-gauge stamped panel. That matters for long-term hinge wear in high-access installations like NOCs or dispatch centers where the door gets opened dozens of times daily.
Deployment Considerations:
- Confirm your rack is a DWR series before ordering — the VFD-12 hinge and latch geometry are specific to that chassis. A DWR-series rack will typically be labeled on the inside rail; if you're unsure, verify with the rack's model number against Middle Atlantic's DWR compatibility documentation.
- The 25% vent open area is passive only — if your 12U rack is carrying high-density compute or recording hardware pushing significant heat, consider supplementing with an active exhaust panel rather than relying on this door alone for thermal management.
The VFD-12 is the right call for integrators closing out a DWR-series 12U rack installation in a finished space — AV equipment rooms, security operations closets, or corporate IT build-outs — where you need a clean front face, deliberate airflow, and a finish that holds up to daily access.
