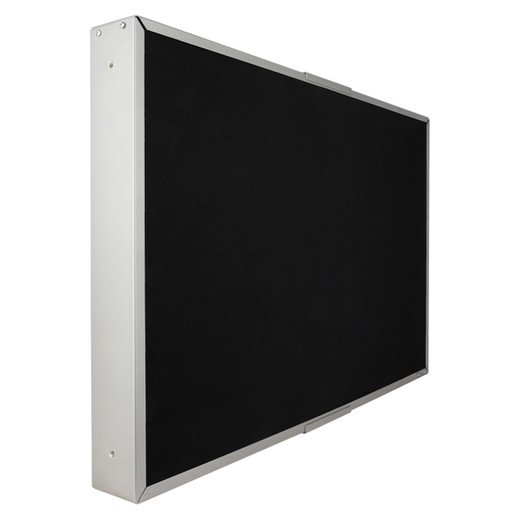

Valcom V-2273 SOUND360 25/70 Wall/Ceiling Speaker

Valcom V-2273 Sound360 25/70 Voice Paging Speaker

The Valcom V-2273 is a dual-mount (wall and ceiling) sound distribution speaker designed for voice paging and audio delivery in medium to large open spaces. Part of Valcom's Sound360 product line, the V-2273 addresses acoustic challenges common in warehouse distribution centers, gymnasiums, and industrial environments where sound reflection and reverberation degrade message clarity.

Overview

The V-2273 employs cone-type speaker design—a proven architecture for open-space audio environments. Unlike horn speakers, which are optimized for high-noise industrial settings but produce poor music reproduction, cone-type speakers deliver balanced sound quality suitable for both voice paging and background music playback. This makes the V-2273 ideal for facilities requiring versatile audio output without acoustic distortion or premature equipment failure from sustained music duty cycles.

Mounting flexibility is a key operational advantage. The V-2273 supports both wall and ceiling installation, allowing integrators to position speakers strategically to overcome acoustic reflections and reverberation in large open areas. Proper speaker placement and spacing reduce the buildup of competing sound waves that typically degrade voice intelligibility in high-ceiling, reflective environments.

Key Features

• Dual-Mount Configuration: Wall and ceiling mounting options for flexible deployment in varied spatial layouts
• Cone-Type Speaker Design: Produces balanced audio quality for voice paging and music reproduction without tonal degradation
• Microphone Support: Integrated microphone input capability for local paging and emergency announcements
• Sound360 Technology: Optimized acoustic design for large open spaces with high ceilings and reflective surfaces
• 25/70V Operation: Standard commercial audio line voltage compatibility for centralized amplifier systems
• Warehouse-Grade Performance: Engineered to function reliably in low to medium ambient noise environments including distribution centers and industrial facilities

Integration & Compatibility

The V-2273 integrates into centralized voice paging and background music systems using standard 25V and 70V commercial audio line architecture. Microphone inputs allow local control points for emergency announcements and departmental messaging. Speaker placement strategy should follow Valcom's acoustic guidance: multiple units positioned at calculated distances reduce reflective overlap and preserve message clarity in large open spaces. This approach outperforms single horn speakers or under-spaced cone units that create dead zones or excessive reverberation.

Acoustic Deployment Considerations

Large open spaces with concrete floors, high ceilings, and reflective wall surfaces create acoustic challenges that require deliberate speaker placement. The V-2273's cone-type design and mounting flexibility allow integrators to distribute sound evenly across zones, minimizing bounce-back and ensuring announcements remain intelligible throughout warehouse aisles, production floors, and distribution centers. Proper spacing and mount selection are critical to avoiding the tonal degradation and intelligibility loss that occur with inadequate speaker quantity or poor placement.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Valcom V-2273 during planning phases for large-space audio installations, particularly in warehouse and distribution environments. The distinction between cone-type and horn speaker design is operationally significant. While horns excel in high-noise industrial settings, they're not optimized for music duty and can fail prematurely under sustained playback. The V-2273 brings cone-type reliability and audio quality to those applications requiring both voice clarity and music fidelity.

Technical Highlights:

• Cone-Type Architecture: Delivers balanced sound reproduction suitable for voice paging and background music without tonal distortion or premature failure from music duty cycles
• Dual-Mount Flexibility: Wall and ceiling options enable strategic placement to overcome acoustic reflection and reverberation challenges in high-ceiling spaces
• Microphone Input: Supports local paging control for emergency announcements and departmental messaging
• 25/70V Line Voltage: Standard commercial audio integration compatible with centralized amplifier infrastructure

Deployment Considerations:

• Speaker placement strategy matters—multiple V-2273 units properly spaced will outperform under-equipped or poorly positioned single-speaker setups in large open areas
• Use this product in low to medium ambient noise environments; high-noise industrial floors (above 85 dB) may require horn-type supplementation
• Plan for acoustic survey or site assessment in facilities with extreme reverberation to optimize unit quantity and placement for maximum intelligibility

The V-2273 is a solid choice for integrators managing voice paging and background music in distribution centers and similar large-space facilities. Its cone design and mounting flexibility address real acoustic challenges without the compromises of horn speakers.
