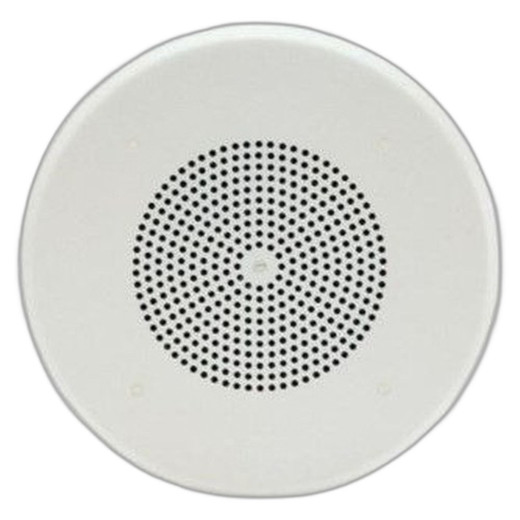

Valcom V-1010C 4-Inch Ceiling Speaker
Overview
The Valcom V-1010C is a 4-inch round ceiling speaker engineered for indoor voice paging, emergency notification systems, and general-purpose audio distribution in commercial and institutional settings. This one-way amplified speaker delivers reliable audio performance with direct microphone input support, making it suitable for deployments requiring clear speech intelligibility across offices, retail environments, schools, hospitals, warehouses, and other indoor facilities. The compact ceiling-mounted design integrates seamlessly into standard suspended ceiling grids, and the lightweight construction eliminates structural reinforcement concerns common with heavier speaker systems.
Key Features
- 4-Inch Round Ceiling Mount: Standard form factor fits T-bar and suspended ceiling systems without retrofit work—this matters because most facilities already have compatible infrastructure, reducing installation labor and cost.
- One-Way Audio Architecture: Purpose-built for paging and announcements. The design eliminates the complexity and cost of bidirectional systems while optimizing frequency response specifically for speech clarity—critical when announcements need to be understood the first time in emergency situations.
- Microphone Input Support: The V-1010C accepts direct microphone connections, meaning you can wire a microphone straight to the speaker without requiring a separate mixing console or amplifier in simple single-zone deployments. This reduces system complexity and total cost of ownership for smaller facilities.
- Lightweight Construction (1.70 lbs / 0.77 kg): The minimal weight eliminates the need to reinforce ceiling grids, lowering installation cost and avoiding structural modifications that can disrupt facility operations. Heavier 5-inch or 6-inch models often trigger reinforcement requirements.
- Speech-Optimized Frequency Response: The V-1010C is tuned to prioritize the frequency ranges where human speech lives, not music or ambient fill. This directly improves intelligibility in noisy environments—warehouses, retail floors, open offices—where clarity can be the difference between an effective alert and a missed message.
- Indoor-Rated Design: Engineered for climate-controlled interior environments. If you need outdoor coverage or wet-location durability, outdoor-rated speaker models in the audio and visual infrastructure category are a better fit.
Installation & Integration
The V-1010C mounts directly to standard T-bar suspended ceiling systems using conventional ceiling speaker brackets and hardware. Audio connection is via industry-standard speaker terminals, allowing integration into existing amplified paging systems, PA infrastructure, and emergency notification networks. Microphone input compatibility supports both direct microphone connection and integration with microphone mixing systems, enabling retrofit into existing voice evacuation and facility communication infrastructure without requiring intermediate amplification stages.
Deployment Applications
Corporate offices use the V-1010C for background music and zone-based paging without the cost and complexity of two-way speaker systems. Retail environments deploy it for promotional announcements and customer alerts. Educational institutions install it in hallways and classrooms for emergency notifications and routine announcements. Healthcare facilities integrate it into overhead paging networks for patient care coordination. Industrial warehouses use it for safety alerts and shift-change notifications. The one-way design reduces cost and wiring complexity compared to systems requiring return audio channels, while the microphone input capability supports simple, cost-effective announcement-only deployments common in smaller facilities and retrofit projects.
When to Choose a Different Model
If you need two-way intercom capability or real-time conversation between zones, the V-1010C is not the right choice—look for amplified two-way speaker systems in the Valcom catalog. If outdoor durability, wet-location ratings, or full-range music reproduction is required, consider outdoor-rated speakers in larger form factors. For high-noise industrial environments where additional power and SPL (sound pressure level) is critical, consult the full speakers and horns category for higher-wattage variants.
Frequently Asked Questions
Q: Can the V-1010C be used outdoors?
A: No. The V-1010C is designed for indoor deployment in climate-controlled environments. Exposure to moisture, temperature extremes, or UV will degrade performance and void reliability. Outdoor installations require weather-rated speaker enclosures.
Q: Does the V-1010C require a separate amplifier?
A: The V-1010C is an amplified speaker, meaning it contains built-in amplification. You wire it directly to a microphone or audio source that provides line-level or microphone-level signal. If you're connecting it to an existing PA system with a dedicated amplifier, verify the amplifier can source the power the speaker expects.
Q: What microphone types work with the V-1010C?
A: Standard dynamic or condenser microphones with appropriate impedance matching will work. Consult the product datasheet or contact the manufacturer for specific microphone specifications and impedance requirements to ensure compatibility with your microphone choice.
Q: How many V-1010C speakers can I install in a facility?
A: Coverage depends on ceiling height, room acoustics, ambient noise levels, and speech intelligibility requirements. Each speaker covers roughly 500–1000 square feet in typical office or retail environments. Plan layouts using a site survey and measure SPL in critical zones to confirm adequate coverage before full rollout.
Q: Is the V-1010C suitable for emergency evacuation systems?
A: Yes. Its speech-optimized frequency response and one-way paging architecture are well-suited to emergency notification deployments. Ensure your overall system (amplifier, microphone, wiring) meets applicable fire code and emergency communication standards in your jurisdiction.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have specified the Valcom V-1010C in multiple facility refreshes over the past three years, primarily for indoor voice paging networks where budget constraints favor single-direction audio. The compact 4-inch ceiling mount fits standard T-bar grids without retrofit work, and the 1.70 lb weight eliminates structural reinforcement concerns that plague heavier speaker systems. That weight difference translates directly to labor savings and faster deployment—often worth hundreds of dollars across a 50+ speaker rollout.
Technical Highlights:
- Microphone Input Support: The V-1010C accepts direct microphone connections, eliminating the need for separate mixing consoles in simple announcement-only deployments. This reduces system complexity and cost for single-zone or low-channel-count installations. I've used this feature in smaller office buildings where a wall-mounted emergency microphone and the V-1010C network handle all overhead paging—no amplifier rack required.
- One-Way Audio Design: Purpose-built for paging eliminates bidirectional complexity. The design prioritizes speech intelligibility over full-range audio, which is exactly what you want when clarity matters more than fidelity. In retail and warehouse environments where ambient noise is constant, this tuning makes announcements stick.
- 1.70 lb Weight: This is not trivial. Heavier 5-inch or 6-inch models often trigger ceiling reinforcement work, adding weeks to project timelines and thousands to budgets. The V-1010C mounts and hangs without structural modification in nearly every standard suspended ceiling grid I've encountered.
Deployment Considerations:
- Indoor Only: This is an interior speaker. Any moisture or temperature swing beyond typical HVAC range will age it fast. Do not install in stairwells with exterior doors, loading docks, or semi-climate-controlled warehouses where humidity swings occur. That's a different product category.
- Coverage Planning Matters: A single V-1010C covers roughly 500–1000 square feet depending on ceiling height and noise floor. In a 10,000 sq ft warehouse or open office, you'll need 10–20 speakers. Sketch the layout and measure SPL in worst-case zones before committing.
- Microphone Impedance: If you're wiring a microphone directly to the V-1010C, verify impedance matching with the speaker manufacturer. Cheap microphones or mismatched impedance will introduce noise or hum into the entire system.
Deployment sweet spot: Office parks, retail chains, school buildings, and smaller hospitals where one-way paging is sufficient and budget dictates avoiding complex amplifier infrastructure. Not ideal for music, two-way intercom, or outdoor applications.
