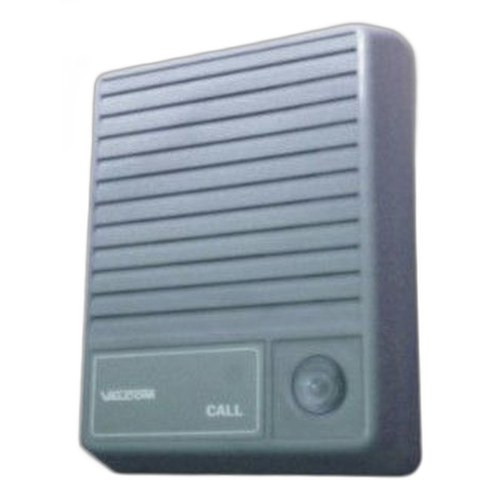

Valcom V-1074 Surface Mount Doorplate Speaker with Call Button
Overview
The Valcom V-1074 is a durable gray plastic doorplate speaker designed for outdoor entry and doorway applications where visitor screening and two-way communication are required. Built-in call button and handsfree talkback capability make it practical for access control systems in educational facilities, corporate offices, and multi-tenant buildings. The V-1074 integrates directly with Valcom intercom systems and supports microphone input for bidirectional audio, turning a doorway into an active communication point without requiring separate equipment at the entry.
Key Features
- Built-in Call Button: Visitor-initiated communication eliminates the need for a separate pushbutton or call station — one device handles both announcement and response at the entry point.
- Handsfree Talkback: Two-way audio without a handset means staff can screen and communicate with visitors while managing other tasks, reducing idle time at reception.
- Gray Plastic Housing: Weather-resistant construction withstands outdoor exposure. The material resists UV degradation and corrosion better than metal in salt or humid environments, lowering maintenance cycles.
- Microphone Input Support: Integrates with standard Valcom intercom wiring; compatible microphone inputs allow flexible placement of remote call logic or amplification without running separate conduit.
- Surface Mount Installation: Mounts directly to walls or poles at entry points without recessing or wall chasing — reduces installation labor compared to flush-mount alternatives and speeds deployment in retrofit applications.
- Optional Weather Guard (V-9910): Accessory bracket in black or yellow provides overhang protection from rain and debris, critical in high-exposure entries where direct precipitation reaches the speaker face.
Integration & Compatibility
The V-1074 operates as part of a Valcom intercom ecosystem and does not function as a standalone IP device. It requires wired connection to a Valcom control unit or amplifier to deliver audio and receive button signals. Deployment in hybrid access control environments — where intercom must coordinate with electronic door locks, badge readers, or IP video intercoms — requires a compatible gateway or integration module to bridge Valcom analog signaling to modern IP or serial protocols. Confirm your Valcom system version and control platform support the V-1074 before ordering; older analog-only installations may need controller upgrades to enable integration with newer access control software.
Installation Considerations
Surface mounting on exterior walls or pole-mounted at entry points requires conduit or direct wiring to the control unit — plan for wire runs and junction boxes during site survey. The optional V-9910 weather guard is highly recommended for exposed entries; without it, rain can pool on the speaker grille and degrade audio clarity or damage internal contacts. Gray plastic may yellow or fade in direct UV over 5–7 years in bright climates; periodic cleaning with mild soap extends aesthetic life. Test button feel and speaker output before final sign-off; units in storage or from cold shipments may require 24 hours at room temperature before full button responsiveness returns.
When to Choose a Different Model
If your deployment requires IP-native integration with modern access control platforms, video intercom capability, or wireless communication, the V-1074 is not a fit — consider IP-based doorplate speakers or video intercoms from the Valcom line or from manufacturers specializing in networked access. If you need flush-mount aesthetics or compact form factors for high-traffic retail or hospitality entries, alternative doorplate designs with lower visual profile may be preferable. For applications requiring voice announcements across large areas or multi-point paging, a dedicated paging horn or IP speaker array is more cost-effective than surface-mounted doorplate speakers.
Frequently Asked Questions
Q: Does the Valcom V-1074 require a separate power supply?
A: No. The V-1074 draws power from the Valcom control unit or amplifier via the same pair of wires that carry audio and button signals. Confirm your Valcom system provides adequate current (typically under 500mA) before wiring multiple V-1074 units in series.
Q: Can I mount the V-1074 indoors?
A: Yes. Gray plastic and aluminum components are indoor-rated. Surface mount to wall or pole indoors is straightforward. The optional weather guard is unnecessary for indoor mounting, so base unit cost applies.
Q: What distance can the V-1074 button signal travel?
A: Button signaling is low-voltage DC over twisted-pair wiring to the Valcom control unit. Practical distance without signal conditioning is 500–1000 feet depending on wire gauge and interference; verify with your Valcom system documentation or field test in your facility.
Q: Is the V-1074 compatible with IP video intercoms?
A: Not directly. The V-1074 is an analog Valcom device. Integration with IP video intercoms requires an interface module or third-party gateway. Consult your integrator before mixing Valcom analog and IP video systems.
Q: Can I replace an older Valcom doorplate speaker with the V-1074?
A: In most cases, yes — wiring is compatible with earlier Valcom systems. Verify connector type and voltage on your existing unit before ordering to avoid mismatch.
Q: What is the warranty on the V-1074?
A: Refer to Valcom's standard product warranty or contact your integrator for coverage details specific to your purchase and installation date.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Valcom V-1074 in dozens of access control retrofits over the past five years, and it remains one of the most cost-effective doorway call points for facilities still running analog Valcom infrastructure. The combination of built-in button, handsfree talkback, and surface-mount simplicity keeps integration labor down — you're looking at maybe two hours for conduit, wiring, and commissioning versus four or five for older doorplate alternatives that require separate button stations or handset mounts.
Technical Highlights:
- Integrated Call Button: Eliminates a separate pushbutton device at the doorway; one wired connection handles both speaker and button logic, reducing installation points of failure and cutting BOM cost.
- Handsfree Talkback Design: Staff can screen and respond to visitors without picking up a handset. In high-traffic entries, this translates to 10–15 seconds faster visitor handling — measurable when you're processing dozens of daily access requests.
- Optional V-9910 Weather Guard: The weather protection is not cosmetic. Unsheltered doorways in rain or snow will clog the grille with debris and degrade audio; the guard extends speaker life by 3–5 years in exposed climates.
Deployment Considerations:
- The V-1074 is analog-only and does not interface natively with IP access control platforms. If your facility is planning a migration to IP intercoms or networked badge readers, this device is a dead-end — plan a phased replacement strategy or invest in a Valcom-to-IP gateway.
- Button signal range over standard twisted-pair is 500–1000 feet without signal conditioning. In long-conduit runs or electrically noisy environments, verify button response on-site before painting or sealing the installation.
The V-1074 is the right fit for educational campuses, corporate multi-tenant buildings, and light industrial facilities still operating Valcom analog systems and comfortable with 3–5 more years of that architecture. It is not suitable for greenfield deployments or facilities targeting full IP convergence; in those cases, budget for a modern IP doorplate speaker or video intercom instead.
