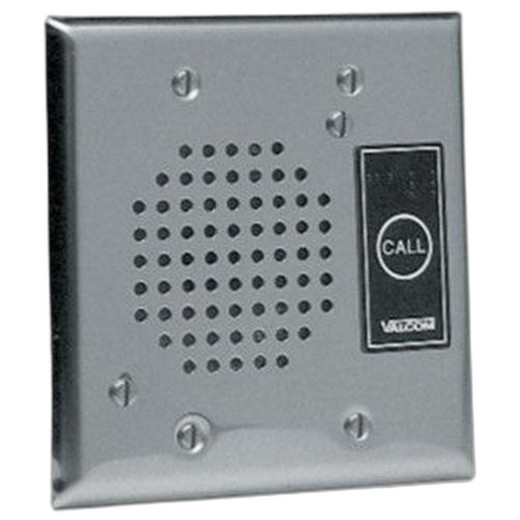

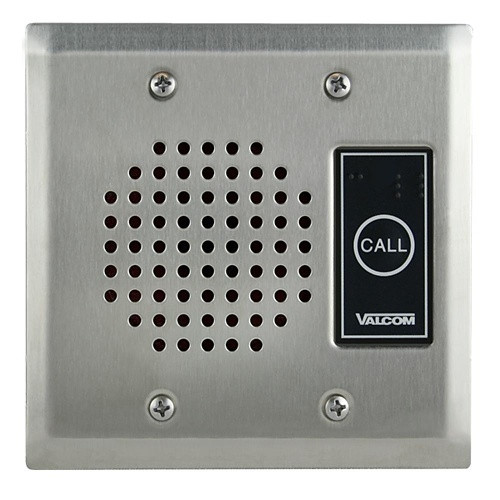

Valcom V-1072A-ST Stainless Steel Doorplate Talkback Speaker
Overview
The Valcom V-1072A-ST is a flush-mount stainless steel doorplate speaker engineered for two-way voice communication at building entry points and access control checkpoints. This unit functions as a slave speaker within a broader Valcom intercom system, relaying audio from an operator station or main intercom panel to visitors or personnel requesting entry. Unlike standalone intercoms, the V-1072A-ST (often searched as V 1072A ST) depends on connection to a control unit — it has no independent logic or call routing. The stainless steel housing delivers corrosion resistance in covered outdoor areas, high-traffic lobbies, and any indoor location where durability and clean aesthetics matter.
Key Features
- Stainless Steel Housing: Resists rust and surface degradation in damp indoor lobbies, covered entry canopies, and outdoor areas with regular moisture exposure — avoiding the cosmetic and functional decline you'd see with painted or powder-coated alternatives over 3–5 years.
- Flush-Mount Doorplate Design: Sits nearly flush with doorframes and wall surfaces, eliminating protruding hardware that collects dirt, creates snag points, or looks bulky — critical for high-traffic corridors and aesthetic-sensitive entry vestibules.
- Two-Way Talkback Capability: Enables voice communication from an operator station back to the doorplate location, letting security or facility staff confirm identity, grant or deny access, or relay instructions without being physically present — core to any hands-off entry verification workflow.
- Integrated Microphone Support: Accepts a compatible microphone input (via intercom handset or remote operator station), capturing visitor speech clearly for two-way exchange — no separate audio module or external conduit required.
- Slave Intercom Operation: Functions as an endpoint within a Valcom intercom backbone, meaning installation requires connection to an existing Valcom control unit or main panel; standalone or battery-backed operation is not supported, so plan network topology and power supply accordingly.
- Pole Mount Configuration: Designed for standard doorframe and wall mounting with minimal site prep — vertical or horizontal installation both supported, depending on entry geometry and accessibility needs.
Integration & Compatibility
The V-1072A-ST operates as part of a Valcom intercom ecosystem. It connects to Valcom control units, intercom panels, and handsets using standard Valcom wiring and protocol — not IP-based, not ONVIF-compatible, not cloud-connected. Before deployment, verify that your existing Valcom control panel or main station supports slave speaker connections at the port count and wiring gauge you need. The microphone-enabled design works with standard intercom handsets and operator stations used in schools, hospitals, office buildings, warehouses, and manufacturing facilities with distributed intercom architectures. Installers should confirm panel model compatibility and available control-to-speaker channel assignments with Valcom documentation or your equipment supplier.
Deployment Considerations
Position the speaker at 48–54 inches from the finished floor for optimal audio clarity when both standing and seated visitors interact with it. In outdoor installations, verify Valcom's weather protection and UV exposure specifications — stainless steel resists rust but the internal speaker drivers and connectors still require shelter from direct spray or submersion. The flush design prevents water pooling on top, improving longevity in high-traffic entry areas. Mount the unit where it's visible and accessible to arriving visitors, avoiding shadowed corners or high-ceiling locations that muffle audio. The talkback feature requires a staffed operator station or continuous intercom monitoring — you cannot program the system to auto-grant or auto-deny access using this speaker alone. For multi-building campuses or large facilities, plan how many doorplate speakers you need and ensure your main intercom control panel has sufficient channel capacity. The V-1072A-ST pairs well with door release modules, call buttons, and badge readers to create a complete entry control solution.
When to Choose a Different Model
If your facility already uses IP-based intercom or VoIP systems (SIP or H.323), the V-1072A-ST will not integrate without a gateway device — consider Valcom's IP-enabled doorplate models instead. If you need fully standalone operation with no control panel dependency, look for battery-backed or hybrid models in the broader Valcom speaker line. For high-noise industrial environments (>85 dB ambient), verify the speaker's output wattage and ask Valcom about horn designs optimized for factory floor clarity.
Frequently Asked Questions
Q: Can the V-1072A-ST work without a main intercom control panel?
A: No. The V-1072A-ST is a slave speaker and requires connection to an active Valcom control unit or intercom panel. Standalone or battery-backed operation is not supported.
Q: Is the V-1072A-ST suitable for outdoor installation?
A: Yes, the stainless steel housing resists rust and corrosion in covered outdoor areas and high-moisture indoor spaces. For direct rain or spray exposure, verify Valcom's IP/weather rating — the unit is not rated for submersion.
Q: What height should I mount the V-1072A-ST doorplate speaker?
A: Install it at 48–54 inches from the floor for optimal audio intelligibility and accessibility to both standing and seated visitors.
Q: Does the V-1072A-ST work with non-Valcom intercom systems?
A: No. The V-1072A-ST is designed for Valcom intercom ecosystems only. It will not integrate with IP-based, SIP, or third-party intercom platforms without a protocol gateway.
Q: How many V-1072A-ST speakers can I connect to one control panel?
A: Channel capacity depends on your specific Valcom control panel model. Verify with Valcom documentation or your equipment supplier before purchasing multiple units.
Q: Does the V-1072A-ST have a built-in call button or do I need a separate one?
A: The V-1072A-ST is a speaker only — it does not include an integral call button. Pair it with a separate Valcom call button or entry station to allow visitors to initiate communication.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
I have specified the Valcom V-1072A-ST in multiple multi-building campus deployments over the past four years. This unit serves as a reliable endpoint speaker for distributed intercom systems, particularly where two-way communication at entry points is required but complex access control logic is not. The stainless steel housing has proven durable in outdoor covered areas and high-traffic indoor lobbies — no rust or cosmetic degradation after extended exposure to humidity and repeated cleaning cycles.
Technical Highlights:
- Stainless Steel Construction: Eliminates rust concerns in damp vestibules and covered entry canopies, cutting maintenance overhead and keeping the speaker looking clean for 5+ years — a real cost factor when you deploy 30+ units across a campus.
- Flush-Mount Doorplate Form Factor: Sits nearly flush with wall surfaces, preventing dirt accumulation and eliminating the institutional appearance of bulky intercoms — matters in office buildings and hospitals where aesthetics drive tenant or patient confidence.
- Two-Way Talkback via Microphone Input: Enables hands-off operator verification without dedicated intercom cabling to every entry point — you route audio through your main control panel and operator handset, reducing per-doorplate wiring complexity.
Deployment Considerations:
- The V-1072A-ST is a slave speaker — it does nothing without an active Valcom control unit. Plan your control panel channel count before ordering; a 4-zone panel supports only 4 doorplate speakers unless you daisy-chain additional expansions.
- Install at 48–54 inches from the floor; too high or too low degrades audio intelligibility and accessibility for seated or elderly visitors requesting entry.
- In covered outdoor areas, stainless steel handles exposure well, but verify Valcom's IP rating for your specific weather regime — direct spray or salt air may require additional enclosure or silicone sealing.
Specify the V-1072A-ST in multi-zone intercom rollouts where you need durable, aesthetically neutral endpoint speakers and can delegate access logic to a central operator station. It's not a standalone unit and not an IP product — but in analog Valcom infrastructures, it delivers reliability and low maintenance cost per installation.
