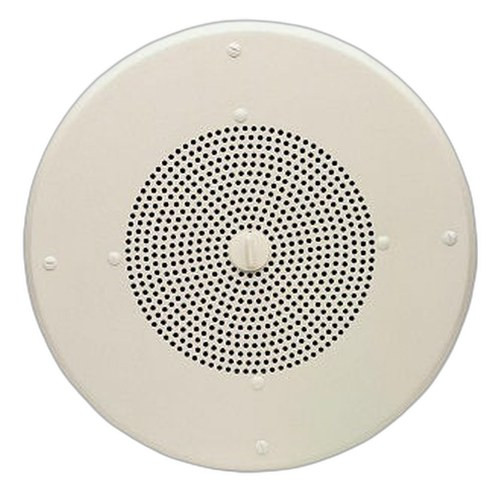

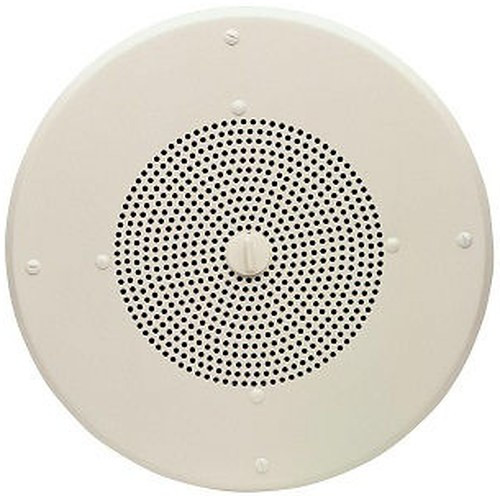

Valcom S-500 8-Inch Ceiling Speaker 25/70V
The Valcom S-500 is a conventional flush-mount ceiling speaker designed for professional voice paging and background music distribution in commercial and institutional environments. This 8-inch round speaker assembly delivers reliable audio performance where distributed audio coverage across multiple zones is required. Built as a complete speaker assembly with no electronic components or network connectivity, the S-500 integrates into standard drop ceiling infrastructure and provides consistent sound projection across medium-sized spaces.
Overview
The S-500 combines straightforward audio engineering with practical installation. The unit features a steel grille construction finished with a durable coating that resists corrosion and wear in commercial environments. The integrated 25/70-volt transformer accommodates both 25-volt and 70-volt distributed audio systems, eliminating the need for external transformers and allowing retrofits into legacy paging installations or new deployments with modern constant-voltage amplifiers. Mounting is flush to the ceiling, ensuring the speaker does not protrude into occupied space—critical in crowded facilities like warehouses, retail environments, schools, and offices where overhead clearance or aesthetic continuity is a concern.
Key Features
- 8-inch round speaker element — standard size for general-purpose voice paging and background music distribution across medium spaces without requiring multiple smaller units or larger professional-grade assemblies
- 25/70-volt transformer — supports both 25V and 70V constant-voltage audio bus configurations, meaning you can deploy the same speaker across legacy 25V systems or modern 70V infrastructure without additional components
- Steel grille with protective finish — resists impact and corrosion in commercial environments, reducing maintenance and extending service life compared to bare plastic or aluminum frames
- Flush ceiling mount — installs directly into standard 2x2 and 2x4 drop ceiling grids using simple fasteners, avoiding the cost and complexity of bracket kits or surface-mounted housings
- Voice paging optimized — frequency response and cone design prioritize speech clarity and intelligibility, delivering better message comprehension than speakers tuned for music-only applications
- Passive design with no network connectivity — eliminates IP addressing, firmware updates, network configuration, and cybersecurity overhead; speaker operates on the audio bus alone, reducing total cost of ownership and deployment complexity
Integration & Compatibility
The S-500 connects to any 25V or 70V distributed audio system. Installation requires connection to the audio amplifier or mixer output through the transformer taps. No software configuration, IP addressing, or network setup is required. The speaker is compatible with any analog paging system, public address amplifier, or background music controller that outputs 25V or 70V audio. Integration is purely hardware-based and passive, eliminating compatibility concerns across different audio system brands and vintages. Integrators commonly deploy multiple S-500 units in zones, with each speaker connected in parallel across the 25V or 70V bus. Transformer tap selection allows adjustment of speaker output level to balance loudness across zones of different sizes.
Deployment Considerations
The S-500 is suitable for indoor environments including offices, schools, retail facilities, warehouses, and institutional buildings. Typical mounting locations include hallways, common areas, cafeterias, warehouses, and open office spaces where ceiling access and 2x2 or 2x4 grid infrastructure exist. The steel grille provides basic protection against dust and casual contact but is not rated for outdoor, wet, or high-moisture environments. For outdoor or vandal-resistant applications, alternative speaker designs with heavier construction or IP67 ratings are recommended.
The speaker assembly requires no electrical outlet or dedicated power supply—all power is derived from the distributed audio bus. This simplifies installation in retrofit scenarios where running separate power circuits is impractical or costly. The 6-pack format supports zone deployment across small to medium-sized facilities, such as a single floor of an office building or warehouse section.
Frequently Asked Questions
Q: Can I mix the S-500 with other speaker models on the same 25V or 70V bus?
A: Yes. The S-500 is compatible with any other 25V or 70V transformer-based speaker or horn, as long as the total connected impedance remains within the amplifier's specification. Consult your amplifier's documentation for impedance limits.
Q: What happens if I install the S-500 in a damp or humid environment?
A: The steel grille and finish provide basic corrosion resistance, but the S-500 is not rated for continuous moisture exposure or outdoor use. For wet locations or high-humidity warehouses, confirm adequate ventilation and consider protective enclosures or outdoor-rated alternatives.
Q: How do I adjust the volume from the S-500 on my paging system?
A: Volume is controlled by the amplifier or paging controller output level and by selecting the appropriate transformer tap on the speaker. Typical taps include 2W, 4W, 8W, and 16W at 70V (or equivalent at 25V). Higher tap selection increases output.
Q: Does the S-500 require any maintenance?
A: Minimal. Periodically check the ceiling mounting fasteners and wipe the grille free of dust. The transformer is sealed and requires no adjustment or service under normal conditions.
Q: Can the S-500 be used for music playback as well as voice paging?
A: Yes, the S-500 can distribute background music, though its frequency response is optimized for speech clarity. For music-centric deployments, consider a higher-fidelity speaker model if available in the Valcom catalog or consult with your integrator about alternative options.
Q: What is the impedance of the S-500 at the various transformer taps?
A: Consult the product datasheet for impedance values at each tap setting. Proper impedance matching ensures safe amplifier operation and full power delivery.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Valcom S-500 on multiple campus and commercial projects where the priority is reliable, low-cost voice coverage and background music across distributed zones. The S-500 delivers straightforward performance without the complexity of networked or powered speakers. It's a workhorse in facilities where integrators need consistent behavior across dozens of zones and want to avoid IP configuration overhead entirely.
Technical Highlights:
- 25/70V Transformer: The built-in dual-voltage transformer means you can retrofit legacy 25V paging systems or integrate into modern 70V installations without external components—real money saved on retrofit projects where adding transformer boxes adds labor and clutter.
- 8-inch Flush Mount: Standard ceiling grid integration eliminates custom bracket design and keeps the overhead clean; in warehouses and retail spaces where ceiling real estate is tight, this matters. No pendant or surface-mounted box protruding into the space.
- Passive Design, No Network Overhead: The S-500 has no IP address, no firmware to update, no cybersecurity surface. That simplifies deployment across distributed locations—schools with dozens of buildings, multi-tenant warehouses, or facility networks where centralized IT governance is a bottleneck.
Deployment Considerations:
- The steel grille provides corrosion resistance in typical indoor commercial environments, but it is not outdoor-rated. If your facility has exposed loading docks, outdoor zones, or high-humidity areas (mist spray, steam, direct water spray), this is not the right choice—confirm your deployment is fully sheltered.
- Impedance matching across tap selections is critical—if you connect too many speakers at too high a tap setting, you risk overloading the amplifier and losing audio quality or damaging the output stage. Always calculate total load and confirm against amplifier specs before commissioning.
The S-500 is the right call for campus paging, office building background music, warehouse zone announcements, and retail multi-store deployments where you need dozens of reliable, inexpensive coverage points and don't want to manage IP cameras, firmware, or network complexity on the audio side.
