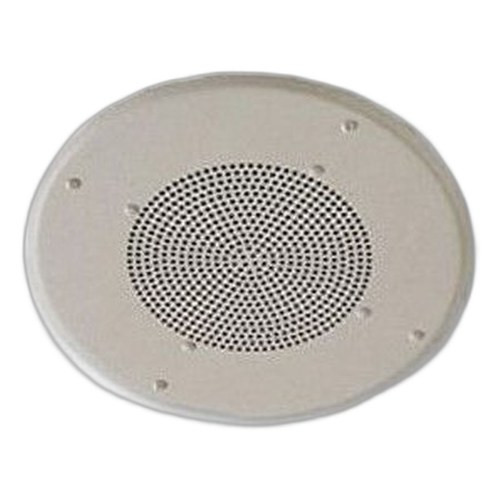

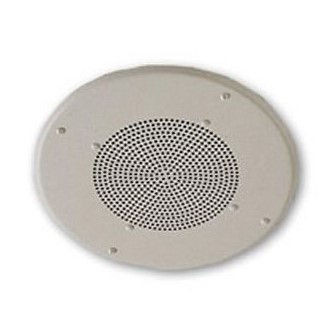

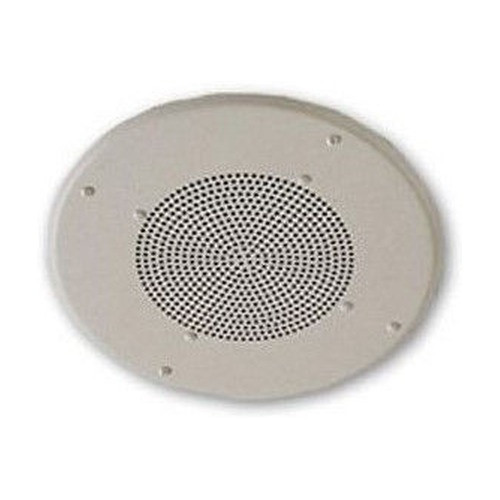

Valcom S-500VC 8-Inch Ceiling Speaker
Overview
The Valcom S-500VC is an 8-inch round flush-mount ceiling speaker engineered for professional voice paging and background music distribution in commercial and institutional facilities. The speaker integrates directly into suspended 2x2 or 2x4 ceiling grids or drywall cutouts, preserving ceiling aesthetics while delivering reliable audio coverage across open floor plans, retail spaces, office buildings, educational campuses, healthcare facilities, and hospitality venues.
The S-500VC employs a 25/70-volt transformer configuration, which is the industry standard for distributed audio systems. This transformer design means you can run speaker wire much longer distances from a centralized amplifier without signal loss — critical when deploying multiple speakers across a large facility or multi-story building. The dual-voltage design also allows the speaker to work with existing 25V or 70V amplifier outputs, eliminating the need for conversion equipment during system expansion or retrofits. Audio is optimized for speech intelligibility and emergency alert applications, making the S-500VC a dependable choice for facilities requiring clear, consistent voice distribution rather than hi-fi music reproduction.
Key Features
- 8-inch round speaker driver — Optimized for voice clarity and moderate-frequency response; sized for speech intelligibility without excessive bass that complicates paging in busy environments
- 25/70-volt transformer — Enables long wire runs (hundreds of feet) without amplifier strain or quality degradation; matches existing commercial amplifier outputs without adapters
- Integrated volume control knob — Local adjustment at each speaker allows zone-level audio management; reduces the need for additional control modules or mixing consoles, simplifying installation and lowering labor costs
- Flush-mount ceiling design — Direct installation into drop ceilings or drywall; sits flush with ceiling plane for minimal visual impact in professional environments
- Steel grille construction — Protects the speaker cone from physical damage and dust accumulation while maintaining acoustic transparency; durable enough for high-traffic areas without rattling or resonance
- Conventional paging driver — Not designed for full-range music; excels at emergency announcements, background paging, and facility communications where voice clarity is the priority
- Series/parallel configuration flexibility — Multiple S-500VC units can be wired in series or parallel depending on your facility's impedance requirements and amplifier constraints; allows system scaling without replacing amplifier infrastructure
- Professional installation-ready — Engineered for system integrators and commercial audio contractors; includes mounting hardware and wiring provisions for standard audio connector terminations
Integration & Compatibility
The S-500VC works with any commercial amplifier or power management system supporting 25V or 70V distributed audio architectures. This is standard equipment in most commercial installations, so compatibility is rarely a constraint. The transformer-based design isolates the speaker from direct DC current paths, improving system safety and reducing ground loop hum that can degrade audio in long-wire runs. When planning a system, verify your amplifier's output voltage rating and total wattage capacity; the S-500VC's transformer impedance will be specified in your system design documentation, allowing your integrator to calculate speaker load and amplifier sizing accurately.
When to Choose a Different Model
If your facility requires high-fidelity background music, outdoor weatherproof audio, or small-footprint in-ceiling installation, consider alternatives within the Valcom speaker and horn product line. The S-500VC prioritizes clarity and long-distance distribution over musical range; if bass response or compact profile is a priority, your integrator may recommend a different ceiling driver or a wall-mounted speaker variant.
Frequently Asked Questions
Q: Can I use the S-500VC with a standard residential audio amplifier?
A: No. The S-500VC requires a 25V or 70V commercial amplifier. Standard residential amplifiers output 4, 8, or 16 ohms and will not work with the transformer-based design. Always verify your amplifier output voltage before ordering.
Q: How many S-500VC speakers can I connect to a single amplifier?
A: This depends on your amplifier's wattage output and the transformer impedance of each speaker. Your integrator will calculate total speaker load to ensure the amplifier doesn't exceed its rated power. Series and parallel configurations affect total impedance, so system design is critical.
Q: Will the volume control on the S-500VC affect all speakers on the same circuit?
A: No. Each S-500VC has an independent volume control that affects only that speaker. This allows you to set different audio levels in different zones without additional control equipment.
Q: Is the S-500VC suitable for outdoor patios or wet environments?
A: No. The S-500VC is designed for indoor ceiling mounting. Outdoor installations require weatherproof horns or speakers with IP67+ ratings. Exposure to rain or direct moisture will damage the driver and transformer.
Q: What mounting hardware is required to install the S-500VC?
A: The S-500VC mounts directly to standard suspended ceiling grids using the included bracket, or to drywall using an in-wall/ceiling cut template. Your integrator will verify ceiling construction and framing before installation.
Q: Can the S-500VC be used for music-only distribution, or is it paging-only?
A: The S-500VC handles both voice paging and background music, but audio quality favors speech intelligibility. For high-fidelity music distribution, consult your integrator about full-range ceiling drivers.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Valcom S-500VC on numerous commercial paging projects over the past five years, and it remains a reliable workhorse for facilities that need flexible, scalable audio distribution without complexity. The S-500VC (often searched as S 500VC) strikes a practical balance between cost-effectiveness and performance for standard voice paging and background music applications in multi-tenant and large single-tenant buildings.
Technical Highlights:
- 25/70V Transformer Flexibility: The dual-voltage transformer design allows you to match your existing amplifier output without conversion equipment. This is particularly valuable in retrofit projects where you're expanding an existing system across additional zones or floors. You're not locked into one voltage standard.
- Integrated Volume Control Reduces Infrastructure: Each speaker has its own adjustment knob, eliminating the need for additional zone mixing modules or remote control systems. For a 30-speaker deployment across three floors, that can save $2,000–$4,000 in control hardware and labor.
- 8-Inch Driver for Voice Clarity: The driver size and tuning prioritize speech intelligibility over bass response. In emergency announcement scenarios, this matters — your facility occupants will hear page content clearly, not muddy low-end.
Deployment Considerations:
- The S-500VC is ceiling-mounted only; it's not suitable for wall or pedestal mounting. Verify your installation environment supports drop-ceiling or drywall cutout mounting before procurement.
- 25/70V systems require accurate impedance calculation. If your amplifier is undersized or overloaded, speaker performance degrades and amplifier protection circuits may trip. Always have your integrator perform load calculations.
- The speaker is sensitive to ceiling cavity acoustics. If it's installed above a false ceiling with significant air gap and inadequate backing, you may experience acoustic flutter or standing-wave issues. Proper backing material behind the speaker is worth the effort.
The S-500VC is the right choice for healthcare facilities rolling out overhead paging, education institutions expanding emergency notification, and office complexes retrofitting background music. Where voice clarity and ease of zone-level control matter more than hi-fi audio reproduction, this speaker earns its place in the system architecture.
