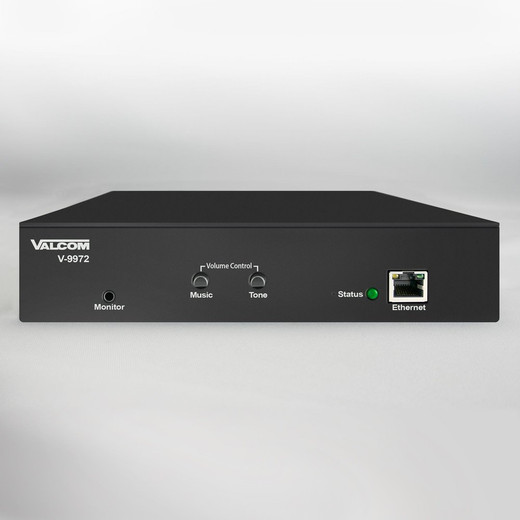

Valcom L9972-2 Universal Paging Interface License

In our experience, the L9972-2 solves a real operational pain point in mid-to-large organizations still carrying mixed telephony legacies. We've seen facilities with a 20-year-old analog PBX in the main office, a SIP-based phone system at a regional campus, and proprietary VOIP infrastructure in a warehouse—each with its own paging gateway. The L9972-2 + V-9972 pair collapses that complexity into a single managed device. The license activation is clean: upload the file through the V-9972 web UI, reboot, and multi-system paging becomes available immediately. No external licensing servers, no expiration clocks, no phone-home requirements—it's a one-time activation that sticks to the hardware. That's refreshingly straightforward for a telecom gateway in 2024. The trade-off is that you're entirely dependent on the V-9972 as a single point for paging ingestion; if that box fails, all paging from all connected systems goes silent until it's replaced or repaired. High-availability environments should run redundant V-9972 units (clustering or failover not guaranteed in all PBX integrations—verify with your phone system vendor). For small-to-medium deployments and branch consolidation, the simplicity and cost reduction justify the single-point risk.

Technical Highlights:

• Multi-System Connection Types (SIP + Analog): The license unlocks connection profiles for both SIP trunks and analog FXO/FXS lines on the same V-9972 chassis. In practice, this means your main office SIP PBX and a remote site's analog lines can both trigger the same paging broadcast without separate gateways. We've seen this cut hardware spend by 40-50% on five-campus deployments.
• Single Management Interface: The V-9972 web UI presents all connected phone systems in a unified dashboard. Administrators do not need separate login credentials or consoles for SIP setup versus analog line provisioning. Reduces training burden and configuration errors in smaller IT shops.
• Firmware-Dependent Activation: The L9972-2 license is firmware-locked to the V-9972. Older hardware revisions may require a firmware update before the license activates. Check the hardware revision label on the back of your V-9972 and cross-reference the Valcom datasheet to confirm compatibility—we've encountered one-off integration delays when this step was skipped.
• No Per-Channel Licensing: The L9972-2 is an all-or-nothing license—once activated, multi-system capability is unlimited. You are not billed per connected PBX or by paging volume. This makes capacity planning straightforward, unlike per-user or per-call licensing models in some competing gateways.
• Paging Broadcast Architecture: Multi-system paging is handled as a single consolidated broadcast stream from the V-9972. If you initiate a page from a SIP desk phone and a page from an analog extension simultaneously, the V-9972 queues and sequences them; behavior depends on your configured paging priority rules. Document this carefully with the end-user's telecommunications team to avoid confusion on simultaneous paging requests.

Deployment Considerations:

• The L9972-2 license is not a standalone product. It only functions on a V-9972 Universal Paging Interface that you already own or are purchasing separately. Confirm the V-9972 is in stock and deployed before ordering this license to avoid shelf inventory with no host device.
• Firmware version compatibility is critical. The V-9972 must be running a firmware revision that explicitly supports the L9972-2 license revision. If your V-9972 is more than two years old or has never been updated, contact Valcom support or review the datasheet to identify the minimum firmware build before activating the license.
• SIP integration requires your phone system (or SIP PBX) to support outbound paging dialing to a defined extension or dial string on the V-9972. Not all proprietary phone systems handle this the same way. Test the SIP paging path with a single desk phone before rolling out to end-users. If the PBX does not recognize paging as a valid outbound call class, the license won't help.
• Analog line integration relies on the V-9972 hooking onto existing analog FXO or FXS ports on your PBX or phone line provider. The V-9972 must be provisioned with the correct dial pattern to recognize incoming paging requests from the analog side. This is a manual configuration step—no auto-discovery.
• Redundancy and failover behavior is not built into the L9972-2 license itself. If high availability is required, you will need a second V-9972 + L9972-2 pair and a failover mechanism (manual switchover or PBX-native failover rules). Verify that your phone system can failover paging requests to a secondary gateway; some legacy PBX systems cannot.
• Wall-mounted installation of the V-9972 is space-efficient but places the paging interface outside the traditional equipment rack. Ensure adequate network cable routing and analog line management (if using FXO ports) to the V-9972 location. Cable trays or conduit routing may be necessary in dense telecom closets.

The L9972-2 license is best suited for mid-market organizations running two or more distinct phone system types and looking to consolidate paging infrastructure without purchasing additional hardware. If your organization is entirely on a single SIP PBX or entirely on analog lines, the base V-9972 alone is sufficient. The license also works well for integrators managing multi-site customer deployments where each site has different telecom infrastructure; centralizing paging through a single V-9972 simplifies support and reduces ongoing hardware costs. For more details on Valcom's paging and intercom product line, visit the Valcom catalog.
