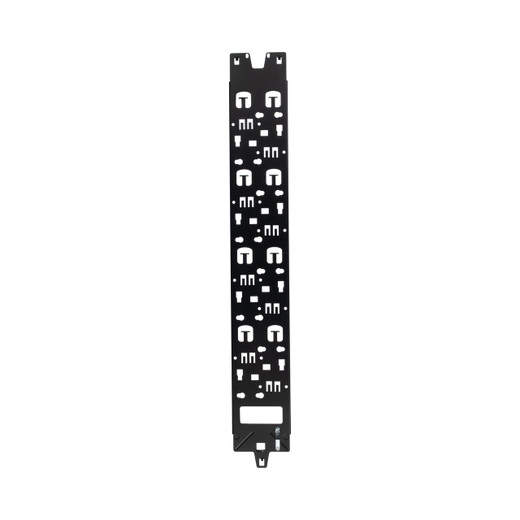

Panduit XG-VCM42B 42RU Vertical Cable Management Wall

Panduit XG-VCM42B FlexFusion Vertical Cable Management Wall

The Panduit XG-VCM42B is a tool-less vertical cable management wall engineered for FlexFusion 42RU cabinets, designed to organize high-density structured cabling in enterprise datacenters, telco co-location facilities, and network operations centers. This 38.5" tall black powder-coated steel panel mounts to the cabinet frame without tools, providing a continuous vertical pathway for Cat6A, fiber trunk, and power distribution cables while maintaining front-to-rear airflow. The integrated D-ring and L-ring mounting system accepts Panduit's S1DR, S2DR, S1LR, and S2LR accessories, enabling installers to stage cable bundles at any height without drilling or modifying the cabinet structure.

Key Features

• Tool-less snap-in mounting to FlexFusion 42RU cabinet frames — no screws or cage nuts required
• 38.5" usable height (977.6mm) covers full rack height from PDU clearance zone to top U-space
• 5.5" width (139.2mm) accommodates 4" bend radius for OM4/OM5 fiber and shielded Cat6A bundles
• Accepts Panduit S1/S2 D-rings and L-rings for horizontal cable support at any vertical position
• Black powder-coated finish matches FlexFusion cabinet aesthetics and resists corrosion in HVAC-controlled environments
• RoHS-compliant construction for European Union and California installations

The XG-VCM42B addresses the cable congestion problem in leaf-spine network architectures and converged infrastructure deployments where 48-port top-of-rack switches generate 100+ cable drops per cabinet. Unlike fixed-finger cable managers that force installers to weave cables through narrow slots, this vertical wall uses a D-ring accessory system that lets technicians position cable support exactly where the horizontal exit point occurs — critical when managing breakout fiber trunks from MPO cassettes or organizing power feeds from dual-feed PDUs. The tool-less design means adds/moves/changes don't require removing adjacent equipment or disturbing live circuits; technicians simply reposition the D-rings along the wall's slotted mounting track. The 5.5" depth provides clearance for pre-terminated fiber assemblies and shielded copper patch cords with bulky RJ45 boots, preventing the kinking and jacket damage that occurs when cables are crammed into undersized channels. Installers working under TIA-942 or Uptime Institute standards will note the open-wall design maintains front-to-rear cabinet airflow, unlike solid-back managers that create heat pockets behind high-wattage switches.

In multi-cabinet hot-aisle/cold-aisle row deployments, the XG-VCM42B is typically installed on the rear cabinet posts (switch side) to manage northbound inter-cabinet fiber links and southbound server/storage connections, while a second wall on the front posts handles intra-row horizontal cabling. The black finish integrates with Panduit's FlexFusion cabinet ecosystem, which uses a consistent hole pattern across all 42RU models — meaning this wall will mount to any FlexFusion cabinet (standard, network, or IT) without adapter brackets. For mixed-vendor environments, verify your existing cabinet uses the EIA-310 19" rack standard with square punched holes at 0.625" vertical spacing; most APC NetShelter, Eaton, and Chatsworth cabinets will accept this wall with minor hole-alignment adjustment. The RoHS compliance marking is required for installations in EU member states, UK, and California public-sector facilities under SB 20 / SB 50 e-waste regulations.

This cable management wall ships as a single-unit package (no multi-packs) and includes the mounting clips required for tool-less installation. D-ring and L-ring accessories are sold separately — specify Panduit part numbers S1DR (1" diameter), S2DR (2" diameter), S1LR, or S2LR based on your bundle size and cable type. The 38.5" height is designed to clear bottom-mounted PDU enclosures (typically 2-4RU) and top-mounted cable pass-through panels, leaving the full 42U equipment space unobstructed. For installations requiring additional cable capacity or dual-sided management, order two XG-VCM42B units per cabinet (one per vertical post pair). Panduit provides a manufacturer warranty covering defects in materials and workmanship under normal datacenter use.
