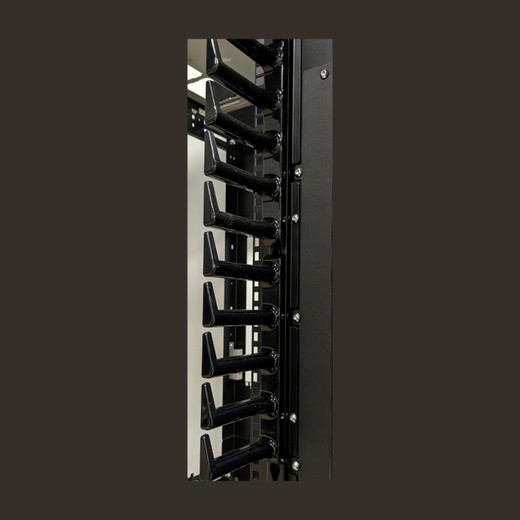

Panduit XGL-FMS42B FlexFusion 42RU Vertical Cable Manager

The Panduit XGL-FMS42B is a 42-rack-unit vertical cable management solution engineered for high-density server rack deployments where copper and fiber infrastructure converge. FlexFusion finger duct design routes bundled cables vertically along the rack frame while maintaining manufacturer-specified bend radius limits—critical for preserving fiber signal integrity and preventing Category 6A cable performance degradation. The black powder-coated finish integrates cleanly into professional datacenter and equipment room installations where aesthetics matter. At 73.4 inches tall, this manager spans the full height of standard 42U racks, eliminating the mid-rack gaps that create cable sag and serviceability headaches in multi-switch or high-port-count environments.

Key Features

• 42RU Full-Height Coverage: Spans the entire vertical run of standard server racks, eliminating mid-point cable droop and service loops that complicate adds/moves/changes.
• FlexFusion Finger Design: Flexible retention fingers secure cables without tie-wraps, allowing tool-free adds and removals during MACs—no zip ties to cut, no Velcro to replace.
• Bend Radius Protection: Finger geometry prevents tight-radius bends on OM3/OM4 fiber trunk assemblies and shielded copper patch cords, maintaining manufacturer warranty compliance and signal specs.
• Mixed-Media Routing: Accommodates bundled copper Ethernet, SFP+ DAC twinax, and multi-fiber trunk cables in the same vertical channel—one manager handles the full stack.
• Black Finish: Professional appearance in customer-visible server rooms, co-location cages, and enterprise IDF/MDF closets where rack aesthetics are part of the facility standard.
• Narrow 1-Inch Width: Mounts tight to the rack rail without consuming excessive aisle space in deep two-post or four-post frames—critical in narrow hot-aisle configurations.
• Durable Steel Construction: Supports the weight of fully-loaded 48-port switch patch cable bundles over multi-year lifecycles without finger breakage or sag.

Deployment Context: In enterprise network core builds and edge aggregation racks, the XGL-FMS42B solves the cable-sprawl problem that occurs when 10GbE or 25GbE switching densities push patch cord counts beyond what horizontal managers alone can contain. Integrators deploy these managers in pairs—one per vertical rail—to create defined front-side and rear-side cable paths, isolating inbound trunk runs from outbound access-layer patch cords. This front/rear segregation reduces troubleshooting time during outage events and simplifies port tracing for MAC tickets. The FlexFusion finger retention system is faster than traditional D-ring managers during both initial installation and subsequent adds: cables slide behind fingers and self-retain without fasteners, cutting per-cable handling time by roughly 60% compared to Velcro or zip-tie workflows. In colocation and MSP environments where multiple technicians service the same racks, the tool-free retention model reduces the risk of accidental cable pulls during adjacent-circuit work.

Fiber and High-Speed Copper Considerations: Panduit publishes minimum bend radius specs for every cable type, and exceeding those limits degrades performance measurably—OM4 tight-bends increase insertion loss, and Category 6A kinks cause return loss failures on 10GBASE-T links. The XGL-FMS42B finger spacing is dimensioned to prevent radius violations on standard-diameter cable bundles up to roughly 1.5 inches OD. For 40G/100G QSFP breakout assemblies and high-count MPO trunk cables, integrators often pair two managers per rail to separate the breakout fanouts from the backbone trunks, preventing cross-bundle compression. The black finish is specified (rather than gray or white) to match the majority of OEM server rack frames and enclosed cabinets, maintaining visual consistency in mixed-vendor environments where rack color uniformity is part of the site standard.

The 42RU height dimension (73.4 inches / 1865mm) corresponds to the EIA-310-D standard rack unit spacing, ensuring alignment with rail-mounted equipment from any manufacturer. Mounting hardware typically includes cage nuts or threaded inserts that attach to the vertical rack rail's standard hole pattern—consult the Panduit installation guide for specific fastener requirements and torque specs. This manager is engineered for commercial-grade datacenters, IDF closets, and equipment rooms where cable infrastructure lifecycle exceeds 10 years and finger retention must survive hundreds of add/change cycles without material fatigue. Panduit backs the product with a manufacturer warranty covering defects in materials and workmanship under normal use conditions.
