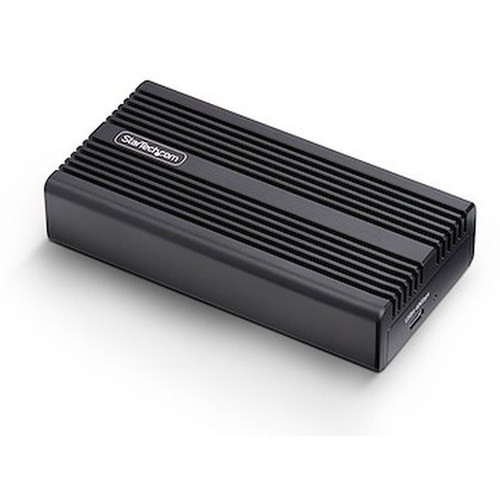

StarTech 1USB4-NVME-ENCLOSURE USB4 40Gbps M.2 NVMe External SSD Enclosure

Overview

The StarTech 1USB4-NVME-ENCLOSURE is a 40Gbps USB4 external enclosure for M.2 NVMe SSDs — purpose-built for integrators, IT architects, and field engineers who move large volumes of data and cannot afford the throughput ceiling of USB 3.2 or Thunderbolt 3. At a measured 4.9 × 2.6 × 1.1 inches and 12 oz, it sits comfortably in a laptop bag or tool kit, yet handles the full bandwidth of PCIe Gen 4x4 drives. If you are evaluating high-speed storage transport for surveillance video archives, edge AI model transfers, or enterprise data migration workflows, the 1USB4-NVME-ENCLOSURE (often searched as 1USB4 NVME ENCLOSURE) is the model to evaluate first in the StarTech portable storage lineup.

Key Features

• USB4 40Gbps Interface: USB4 runs at 40Gbps — twice the ceiling of USB 3.2 Gen 2x2 (20Gbps) and on par with Thunderbolt 3/4. In practice, this means a 1TB NVMe dump that takes roughly 8 minutes over USB 3.2 Gen 2 completes in closer to 4 minutes. For surveillance integrators offloading multi-day 4K footage from edge recorders, that halved transfer window matters.
• PCIe Gen 4x4 NVMe Support: The enclosure bridges the full PCIe Gen 4x4 lane count to the host, so a Gen 4 drive is not artificially throttled by the enclosure's bridge chip. You get the real sequential read headroom the drive is rated for — important when benchmarking storage for high-bitrate multi-camera archival workflows.
• Universal M.2 Form Factor Support (2230, 2242, 2260, 2280): All four standard M.2 lengths are supported, which means you are not locked into 2280-only drives. 2230 and 2242 drives — common in compact edge devices and some ultrabooks — install without adapters. One enclosure covers your entire M.2 NVMe inventory.
• Aluminum Construction: The all-aluminum chassis does two things: it dissipates heat passively from sustained transfers (NVMe drives throttle under thermal load in plastic enclosures), and it survives field handling. At 340g it has meaningful mass for its size — a sign of full-metal construction rather than a thin-wall shell.
• OS-Independent Operation: No driver installation required. The enclosure enumerates as a standard USB mass storage device across Windows, macOS, Linux, and ChromeOS. Deploy it in mixed-OS environments — security operations centers, IT labs, AV integration shops — without maintaining platform-specific software.
• Single USB4 Host Connector: One USB-C USB4 port on the host side means the cable carries both data and bus power. No separate power brick, no additional outlet required. Practical for field deployments where AC access is limited.
• MTBF 112,000 Hours: At 112,000 hours mean time between failures, the enclosure is rated for continuous professional use — not occasional consumer transfers. For IT teams running nightly backup cycles or integrators using it as a recurring archive transport, this reliability floor is worth noting.
• Operating Range 0°C to 40°C: Covers standard indoor IT and security operations environments. Not rated for unheated warehouses in winter or outdoor enclosures — plan accordingly if your deployment runs outside that window.

Integration and Compatibility

The 1USB4-NVME-ENCLOSURE connects to any USB4 or Thunderbolt 3/4 host port — confirmed by the USB4 specification's backward compatibility mandate. Hosts without USB4 will negotiate down to USB 3.2 speeds; you retain compatibility but lose the 40Gbps advantage, so verify your host controller before specifying this enclosure for a high-throughput workflow.

Drive compatibility covers M.2 PCIe NVMe M-Key and NGFF form factors in 2230, 2242, 2260, and 2280 lengths. SATA M.2 drives are not supported — the connector is M-Key NVMe only. If your drive inventory includes a mix of NVMe and SATA M.2, this enclosure handles only the NVMe side. Pair it with a storage accessory solution for SATA drives separately.

For surveillance and security workflows, this enclosure fits naturally alongside network video recorders as an offline archive transport — pull footage from an NVR's internal NVMe, image it to an external drive via this enclosure, and hand off evidence-grade copies without network exposure. The OS-independent operation means it works in air-gapped environments without IT provisioning. Browse the full StarTech catalog for compatible cabling and docking solutions.

For IT architects designing edge-to-core data pipelines, the 40Gbps ceiling keeps the enclosure from becoming a bottleneck when paired with a modern Gen 4 NVMe drive. Review your storage planning guide to confirm host-side USB4 controller availability before finalizing the BOM. If you are building a portable data transfer kit, pair this with a USB4 cable rated for 40Gbps — not all USB-C cables support the full bandwidth.

Frequently Asked Questions

Q: What M.2 drive lengths does the 1USB4-NVME-ENCLOSURE support?

A: The enclosure supports all four standard M.2 lengths: 2230, 2242, 2260, and 2280. All must be NVMe PCIe M-Key drives — SATA M.2 drives are not compatible.

Q: Will the 1USB4-NVME-ENCLOSURE work with a Thunderbolt 3 or Thunderbolt 4 laptop?

A: Yes. USB4 is electrically and protocol-compatible with Thunderbolt 3 and Thunderbolt 4 ports. You will get the full 40Gbps bandwidth on a Thunderbolt host. On a standard USB 3.2 port the connection will work but at reduced speed.

Q: Does the enclosure require a driver or software installation?

A: No. The 1USB4-NVME-ENCLOSURE is OS-independent and enumerates as a standard USB mass storage device. No driver installation is needed on Windows, macOS, Linux, or ChromeOS.

Q: What is the warranty on the 1USB4-NVME-ENCLOSURE?

A: StarTech covers the 1USB4-NVME-ENCLOSURE with a 2-year manufacturer warranty.

Q: Does this enclosure support PCIe Gen 4 NVMe drives without throttling?

A: Yes. The enclosure supports PCIe Gen 4x4, so it does not artificially cap Gen 4 drive performance at the enclosure bridge. The 40Gbps USB4 interface provides sufficient bandwidth headroom to express Gen 4 sequential throughput.

Q: What are the operating temperature limits for this enclosure?

A: The operating range is 0°C to 40°C (32°F to 104°F). It is not rated for below-freezing or high-heat environments. Storage temperature extends from -20°C to 70°C when the unit is unpowered.

Eden Phillips

The spec that keeps coming up when I spec out the 1USB4-NVME-ENCLOSURE for production workflows is the PCIe Gen 4x4 support combined with the 40Gbps USB4 interface — that pairing means you are not leaving drive performance on the table at the enclosure bridge, which is exactly where cheaper USB 3.2 enclosures create a hidden bottleneck on fast Gen 4 drives.

Technical Highlights:

• 40Gbps USB4 Bandwidth: At 40Gbps, the interface runs at twice the ceiling of USB 3.2 Gen 2x2 — relevant when you are moving 500GB+ surveillance archives or AI model datasets where transfer time compounds across daily operations.
• PCIe Gen 4x4 Bridge: Full four-lane Gen 4 support means the enclosure does not cap a 7,000 MB/s-rated drive at 3,500 MB/s the way a Gen 3-only bridge would. Spec the right drive and the enclosure stays out of the way.
• MTBF 112,000 Hours: That is roughly 12.8 years of continuous operation at rated conditions — a reliability figure that puts this in professional-grade territory, not consumer peripherals. Relevant for teams running nightly archive cycles against a fixed equipment budget.

Deployment Considerations:

• Verify your host controller is a native USB4 port before deploying in a high-throughput role — Thunderbolt 3/4 hosts will deliver full bandwidth, but USB 3.2 hosts will cap well below 40Gbps regardless of the drive installed.
• The 0°C to 40°C operating range is standard office and data center territory; do not deploy this in an unheated server room, loading dock kiosk, or outdoor evidence storage cart that dips below freezing in winter.

This enclosure fits best in a surveillance evidence management workflow where an integrator needs to image NVMe drives from edge recorders and transfer high-bitrate multi-camera footage to archive storage quickly, in an air-gapped environment, without driver dependencies — the OS-independent operation and 40Gbps ceiling make it a clean fit for exactly that scenario.
