APC by Schneider Electric SMX750C 750VA Line-Interactive Rack/Tower UPS
Overview
The APC by Schneider Electric SMX750C is a 750VA/675W line-interactive uninterruptible power supply built for IT closets, network racks, and small server rooms where runtime, visibility, and flexible deployment matter. The SMX750C occupies the practical middle ground between entry-level standby units and costly double-conversion systems — it actively regulates voltage without switching to battery every time line power wavers, which extends battery life and reduces wear in environments with frequent sags and swells.

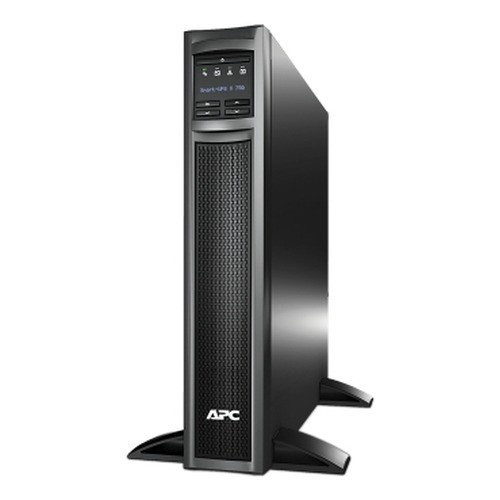

The convertible rack/tower form factor means you can deploy it vertically on a shelf today and slide it into a 2U rack slot later without buying a separate chassis. For power protection and UPS solutions in mixed or evolving infrastructure, that flexibility has real operational value. Browse the full APC by Schneider Electric catalog for complementary power protection gear.
Key Features
- 675W / 750VA Output Capacity: Sized to carry a small server, a network switch stack, or a 4–8 camera NVR and its PoE switch simultaneously. Know your actual load wattage before spec'ing — 675W leaves headroom for inrush but won't carry a full 1U server plus multiple hard drives at sustained load.
- Line-Interactive Topology: The built-in automatic voltage regulator (AVR) corrects input voltages between 75V and 154V without touching the battery. In facilities with frequent brownouts or over-voltage events, this is the spec that prevents premature battery replacement — a standby-only unit would cycle the battery on every minor sag.

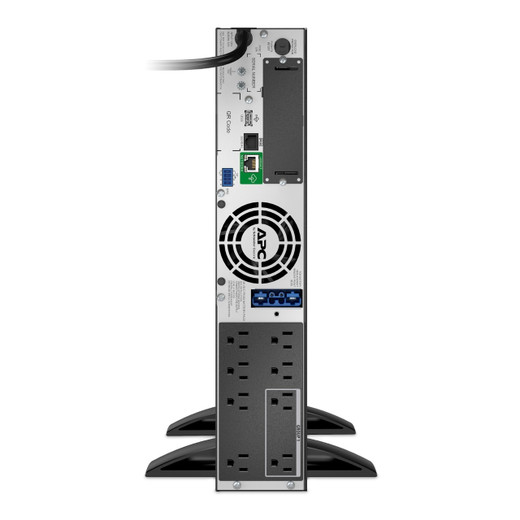

- 8 NEMA 5-15R Outlets: Eight individually accessible outlets accommodate a full rack complement of 1U devices — NVR, PoE switch, managed switch, firewall, and patch panel power supplies — without requiring a separate PDU on smaller deployments.
- 645-Joule Surge Energy Rating: Adequate for transient protection on a dedicated circuit. This is not a whole-facility surge suppressor; it protects connected equipment from line-borne transients that reach the UPS input. For facilities with frequent lightning exposure, upstream panel-level protection is still advisable.
- LCD Status Display: Real-time readout of input/output voltage, load percentage, battery charge level, and estimated runtime. In a rack environment this replaces the need to SSH into a management card just to confirm the unit is healthy — useful during a late-night incident response when you need a fast status check.
- Emergency Power Off (EPO) Support: The SMX750C includes EPO capability, which is a code requirement in many data center and telecom room installations. EPO lets a single switch cut power to all connected equipment instantly — required for NFPA 75/76 compliance in some jurisdictions. Verify local code requirements before assuming EPO alone satisfies your AHJ.
- Sealed Lead Acid (VRLA) Battery: Valve-regulated lead acid chemistry is maintenance-free and safe for indoor enclosed rack deployment — no off-gassing concerns that would require ventilated battery cabinets. Battery replacement is hot-swappable on the Smart-UPS X line, reducing planned downtime for battery service.
- Output Voltage THD ≤ 5%: The sawtooth simulated sine wave output stays within 5% total harmonic distortion, which is acceptable for the majority of switching power supplies in servers and network gear. Note: active PFC power supplies in some servers may trip on simulated sine wave — verify your server PSU specifications before deploying; double-conversion (true sine) UPS is required for strict active PFC loads.
- 40 dB Noise Level: Quiet enough for an open office server closet or a wiring room adjacent to occupied space. Not silent — the fan runs under load — but 40 dB is comparable to a quiet HVAC hum rather than a noticeable appliance.
- 50/60 Hz Input Frequency: Accepts both 50 Hz and 60 Hz input, making the SMX750C deployable in North American 60 Hz infrastructure as well as international facilities running 50 Hz — relevant for multi-site deployments or imported equipment environments.
Integration and Compatibility
The Smart-UPS X series supports APC's SmartConnect and Network Management Card (NMC) ecosystem. An optional NMC (sold separately) enables SNMP/Modbus monitoring, integration with VMware vCenter, Microsoft SCOM, and most enterprise DCIM platforms. Without an NMC, local management is via the LCD panel and USB/serial interface. For network infrastructure deployments, pairing the SMX750C with a managed PoE switch on the same UPS circuit gives you a clean single-point power protection boundary for an IP security or access control node. See our UPS selection guide for help matching runtime requirements to battery capacity across load profiles. For larger surveillance deployments with higher sustained wattage, consider stepping up within the Smart-UPS X family to the 1000VA or 1500VA models.
Frequently Asked Questions
Q: What is the difference between the SMX750C's line-interactive topology and a standby UPS?
A: A standby UPS only switches to battery when input power falls outside acceptable limits. The SMX750C's line-interactive design uses a built-in AVR to regulate voltage between 75V and 154V in real time — without switching to battery. This means the battery is not cycled on every minor brownout or over-voltage event, extending battery service life in environments with imperfect power quality.
Q: Will the SMX750C work with servers that have active PFC power supplies?
A: The SMX750C produces a simulated sine wave (sawtooth approximation) with output THD of 5%. Most enterprise switching power supplies handle this without issue. However, some active PFC PSUs are sensitive to non-sine waveforms and may exhibit instability or false shutdowns. Verify your server or device PSU specifications — if active PFC compliance is mandatory, a double-conversion (true sine) UPS is the safer choice.
Q: Can the SMX750C be rack-mounted?
A: Yes. The SMX750C ships in a convertible chassis that installs either as a tower on a shelf or as a 2U rack unit. Rack-mounting hardware requirements should be confirmed with APC's accessory documentation for this model; the convertible design is a core feature of the Smart-UPS X line.
Q: Does the SMX750C support Emergency Power Off (EPO)?
A: Yes, EPO is supported. This allows a single external switch to cut output power to all connected equipment — a requirement under NFPA 75/76 and many local electrical codes for data rooms and IT closets. Confirm your authority having jurisdiction (AHJ) requirements before relying solely on UPS-level EPO for code compliance.
Q: How many outlets does the SMX750C provide, and are any battery-backed?
A: The SMX750C provides 8 NEMA 5-15R AC outlets. Outlet grouping details (which are battery-backed vs. surge-only) should be confirmed against APC's current product documentation for this SKU, as outlet configurations can vary within a product family.
Q: What battery type does the SMX750C use, and is it user-replaceable?
A: The SMX750C uses sealed VRLA (valve-regulated lead acid) batteries. VRLA chemistry is maintenance-free and safe for enclosed indoor rack environments with no special ventilation required. The Smart-UPS X platform supports hot-swap battery replacement, allowing a battery service without shutting down connected equipment.
The SMX750C hits a practical sweet spot for small-to-mid infrastructure nodes: 675W of real output power with line-interactive AVR that handles an input window from 75V to 154V — that's a notably wide tolerance that keeps the battery out of the picture during the kind of brownout events that are common on aging commercial electrical infrastructure.
Technical Highlights:
- 75–154V Input Window: This 79-volt correction range is wider than most competing line-interactive units at this price tier, meaning the SMX750C stays on line power through brownouts that would put a narrower-window unit onto battery. Fewer battery cycles = longer battery service intervals.
- 645J Surge Rating: Solid transient protection for a dedicated IT circuit. Pair this with panel-level SPDs in high-lightning-exposure facilities — the UPS-level joule rating handles line-borne transients, not direct strike energy.
- EPO Support: Often overlooked at this capacity class, EPO is listed as a feature on the SMX750C. If your IT closet or telecom room is subject to NFPA 75 or local AHJ inspection, having EPO wired in at install time saves a retrofit later.
Deployment Considerations:
- The sawtooth simulated sine wave output is the main compatibility watch-out. Before deploying the SMX750C upstream of any server with an active PFC power supply, check the PSU spec sheet — some active PFC designs explicitly require pure sine input and will fault on simulated sine, even within 5% THD.
- At 40 dB the fan noise is manageable in a closed comms room, but plan for it in open-plan wiring closets near occupied workspace — it's audible under moderate load, not silent.
The SMX750C is the right fit for a compact IP security system head-end: NVR, PoE switch, and access control panel on a single protected circuit, in a rack or on a shelf, with enough AVR range to handle the power quality realities of a commercial building without burning through replacement batteries every 18 months.
