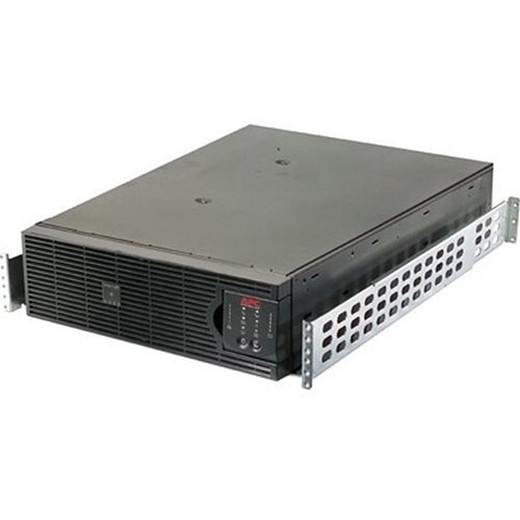

APC by Schneider Electric UPS - Rack-mountable - 208V - 4.2 KW - (4) NEMA 5-20R; - SURTD6000RMXLP3U
APC by Schneider Electric UPS - Rack-mountable - 208V - 4.2 KW - (4) NEMA 5-20R; - SURTD6000RMXLP3U
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: SURTD6000RMXLP3U
UPC: 731304258827
Condition: New
Write a Review 33% OFF
APC by Schneider Electric

APC by Schneider Electric UPS - Rack-mountable - 208V - 4.2 KW - (4) NEMA 5-20R; - SURTD6000RMXLP3U

APC by Schneider Electric SURTD6000RMXLP3U Concise Descriptor Overview The APC by Schneider Electric SURTD6000RMXLP3U is a 6000VA/4200W rack-mountable…

$13,235.00 $8,810.99 SAVE $4424
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Message Call

APC by Schneider Electric UPS - Rack-mountable - 208V - 4.2 KW - (4) NEMA 5-20R; - SURTD6000RMXLP3U

$13,235.00
$8,810.99
Add to Cart

Overview

SKU: SURTD6000RMXLP3U
UPC: 731304258827
Condition: New

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

APC by Schneider Electric SURTD6000RMXLP3U Concise Descriptor

Overview

The APC by Schneider Electric SURTD6000RMXLP3U is a 6000VA/4200W rack-mountable Uninterruptible Power Supply (UPS) designed for critical IT infrastructure. It employs a double-conversion online topology, providing pure sine wave output with zero transfer time to battery, ensuring sensitive equipment like servers, network switches, and storage arrays remain operational during power disturbances. This unit is ideal for rack-mounted deployments where consistent, clean power is paramount, such as in data centers or enterprise server rooms. The SURTD6000RMXLP3U offers configurable output voltage and a robust feature set for managing power quality.

Compatibility

This UPS is designed for use with 208V or 240V input power. It features multiple output receptacles including (4) NEMA 5-20R, (1) NEMA L6-30R, and (1) NEMA L14-30R, making it compatible with a wide range of IT equipment. The unit supports APC's RBC140 replacement battery cartridge for extended service life.

Installation Notes

The SURTD6000RMXLP3U requires a 3U rack space and mounts to the front of a standard 19-inch rack. It includes one 10 ft (3.05 m) cable. The unit operates within a relative humidity range of 0-95% non-condensing and has an acoustic level of 55 dBA. Its heat dissipation is rated at 1780 Btu/h.

What's in the Box

  • 1x APC by Schneider Electric SURTD6000RMXLP3U UPS
  • 1x RBC140 Replacement Battery Cartridge
  • 1x 10 ft (3.05 m) Power Cable
  • 1x Rack Mounting Support Kit
  • 1x User Manual
Expert Analysis
Specifications
Main Input Voltage: 208V
Other Input Voltage: 240 V
Main Output Voltage: 120V 208V
Other Output Voltage: 240V
Rated Power In W: 4200W
Rated Power In Va: 6000VA
Input Connection Type: NEMA L14-30P
Output Connection Type: (4) NEMA 5-20R (1) NEMA L6-30R (1) NEMA L14-30R
Number Of Rack Unit: 3U
Cable Length: 10 ft (3.05 m)
Number Of Cables: 1
Battery Type: Lead-Acid Battery
Included Battery Modules: 2
Typical Recharge Time: 2.5 h
Rbc Quantity: 1
Additional Information: Configurable for 208 or 240 nominal output voltage
Battery Charge Power (Watts: 382 W rated
Battery Power In Vah: 960 VAh runtime
Battery Life: 3 - 5 year(s)
Replacement Battery: APCRBC140 SRT192BP2US SRT192RMBPUS
Extendable Run Time: 1
Number Of Power Module Free Slots: 0
Number Of Power Module Filled Slots: 0
Color: Black
Dimensions: 5.12 in (13 cm)
Weight: 128.00 lb(US) (58.06 kg)
Mounting Location: Front
Mounting Preference: Lower
Mounting Mode: Rack-mounted
Two Post Mountable: 0
Max Configurable Power (Watts: 4200W
Harmonic Distortion: Less than 2%
Output Frequency (Sync To Mains: 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains
Crest Factor: 3 : 1
UPS Topology: Double Conversion Online
Waveform Type: Sine wave
Bypass Type: Internal Bypass (Automatic and Manual)
Efficiency At Full Load: 90 % full load
Maximum Configurable Power In Va: 6000VA
Relative Humidity: 0 - 95 % non-condensing
Operating Altitude: 0 - 10000 ft
Ambient Air Temperature For Storage: 5 - 113°F (-15 - 45°C)
Storage Relative Humidity: 0 - 95% non-condensing
Storage Altitude: 0 - 50000 ft (0.00 - 15240.00 m)
Acoustic Level: 55 dBA
Heat Dissipation: 1780 Btu/h
Ip Degree Of Protection: IP20
Free Slots: 0
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
