APC by Schneider Electric UPS - Internal - Online - AC 120/208 V ( 47 - 63 HZ ) - 3200 - SYPM4KP

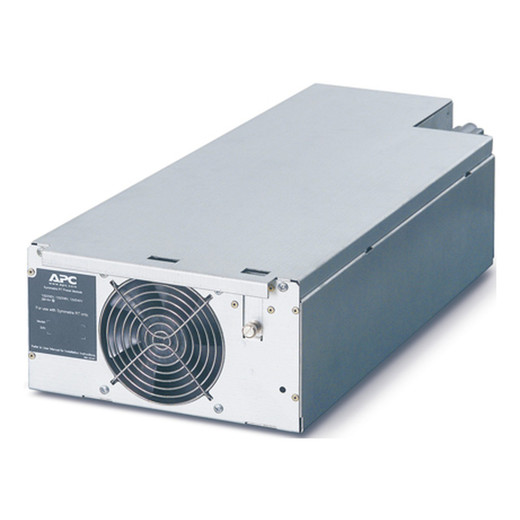

APC by Schneider Electric SYPM4KP Internal Online UPS Power Module

Overview

The SYPM4KP is an internal online UPS power module from APC by Schneider Electric designed for continuous double-conversion power protection. Operating across AC 120V and 208V outputs at frequencies between 47 and 63 Hz, this module targets environments where clean, regulated power delivery is non-negotiable — data closets, networked security infrastructure, and IT edge deployments where a single power event can cascade into system-wide failure. The online double-conversion topology means connected equipment never draws directly from utility power; it runs off the inverter at all times, so there is zero transfer time during an outage.

Key Features

• Multi-Voltage Output (100V / 120V / 200V / 208V): Supporting four output voltage levels from a single module simplifies deployments where mixed equipment voltages coexist on the same rack — you are not forced to stock multiple UPS SKUs for different device requirements.
• Wide Frequency Tolerance (47–63 Hz): Accepts input across the full international frequency band, which matters in facilities running imported equipment or generator-backed power that drifts outside the standard 60 Hz nominal.
• Online Double-Conversion Architecture: Unlike standby or line-interactive units, an online UPS continuously regenerates clean AC output regardless of input quality. Voltage sags, surges, and frequency deviations on the utility side are invisible to connected loads — relevant for sensitive electronics in security operations centers and network closets.
• Internal Form Factor: Integrates directly into compatible UPS power protection chassis rather than occupying standalone rack space. This matters in dense equipment rooms where every rack unit counts.
• EAR99 Classification: Carries EAR99 export classification, meaning no individual export license is typically required for most international deployments — straightforward for multi-site or international enterprise rollouts.

Integration and Compatibility

The SYPM4KP is designed to integrate within APC's modular UPS ecosystem. Consult APC's power management compatibility documentation to confirm supported chassis before ordering — internal power modules are chassis-specific and not universally interchangeable across product families. For enterprise deployments pairing this module with network infrastructure, review your PoE switch and edge device power budgets to size runtime appropriately for the connected load. Integrators deploying this alongside physical security systems should also verify input circuit amperage at the panel, as 208V single-phase draws differ from 120V loads at equivalent wattage.

Frequently Asked Questions

Q: What output voltages does the SYPM4KP support?

A: The SYPM4KP supports AC output at 100V, 120V, 200V, and 208V — covering both North American standard voltages and international equipment requirements.

Q: What is the operating frequency range for the SYPM4KP?

A: The module operates across 47 to 63 Hz, accommodating both 50 Hz and 60 Hz environments as well as generator-backed power sources that may deviate from nominal frequency.

Q: Is the SYPM4KP a standalone rackmount unit?

A: No. The SYPM4KP is an internal module designed to install inside a compatible APC UPS chassis. It does not occupy independent rack units as a standalone appliance.

Q: What is the ECCN classification for the SYPM4KP?

A: The SYPM4KP carries an EAR99 ECCN classification, which generally does not require an individual export license for most destinations under U.S. export regulations.

Q: What type of UPS topology does the SYPM4KP use?

A: The SYPM4KP uses an online double-conversion topology, meaning connected equipment continuously runs from the inverter output rather than from utility power directly — providing zero transfer time during outages and isolation from input power quality issues.

Ted Perry

The SYPM4KP's multi-voltage output capability — 100V, 120V, 200V, and 208V from a single internal module — is the spec that stands out for mixed-voltage rack environments. In facilities running both North American and internationally sourced equipment on the same infrastructure, that flexibility eliminates the need to deploy separate UPS hardware for different voltage rails.

Technical Highlights:

• Online Double-Conversion: Zero transfer time to battery — connected loads never see a gap during utility switchover, which is the critical difference in environments running real-time security recording or active network switching gear.
• 47–63 Hz Frequency Tolerance: Wide enough to accept generator power without frequency-related faults — relevant for facilities that run diesel backup during extended outages where generator frequency regulation is imperfect.
• Multi-Voltage AC Output: Four supported output voltages (100V / 120V / 200V / 208V) in one internal module reduces chassis count in mixed-equipment deployments.

Deployment Considerations:

• This is a chassis-internal module — confirm chassis compatibility with APC's modular UPS line before purchasing. An incompatible chassis renders the module non-functional regardless of voltage or capacity match.
• Available spec data for the SYPM4KP is limited in this listing; verify full output wattage, battery runtime curves, and outlet configuration directly from APC's product documentation before finalizing load calculations for your deployment.

This module is best positioned in enterprise security operations centers or IT edge closets running mixed 120V/208V equipment racks where online double-conversion protection and chassis-level modularity are required — not the right pick for simple single-device standby protection.
