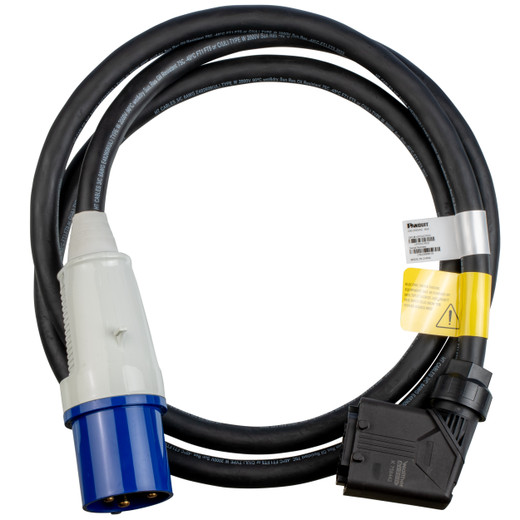

Panduit UPDUCRD2 uPDU to IEC 60309 Power Cord

The Panduit UPDUCRD2 delivers 60-amp power distribution between G5 Universal PDU chassis and facility-grade IEC 60309 wall outlets in datacenter, UPS, and critical-infrastructure installations. This 10-foot cord set terminates in a 2P+E 6h industrial plug rated IP44 for dust and splash resistance, ensuring reliable high-current connectivity in environments where rack-mount PDUs supply PoE switches, NVRs, access controllers, and enterprise networking gear. The universal chassis-side connector pairs exclusively with Panduit G5 uPDU enclosures, while the facility-side IEC 60309 plug matches globally-standardized industrial power sockets common in commercial electrical systems.

Key Features

60-amp continuous capacity supports high-density rack loads without voltage sag

IEC 60309 2P+E 6h plug fits standardized industrial facility sockets

IP44-rated connector resists dust ingress and water splash in mechanical rooms

10-foot length provides flexible PDU placement within two-post or four-post racks

Universal chassis connector pairs with Panduit G5 uPDU systems only

Black jacket blends into professional rack environments

Competitively cross-references APC 40K9615 and Server Technology CBL362-10

The IEC 60309 2P+E 6h configuration specifies a two-pole plus earth (ground) industrial plug with the ground pin positioned at the 6 o'clock orientation—an international standard for 200–250V single-phase circuits up to 63 amps. The IP44 ingress-protection rating certifies the connector body against solid objects larger than 1mm and water spray from any direction, making this cord set suitable for basement mechanical rooms, rooftop equipment closets, or warehouse datacenters where airborne dust and condensation are present. At 60 amps continuous, the UPDUCRD2 safely powers Panduit G5 PDU chassis loaded with twenty-four 2.5-amp PoE++ cameras, sixteen 4-amp managed switches, or mixed loads totaling 14.4 kW at 240V—well within the thermal limits of the 10 AWG conductors and molded strain reliefs.

Deploy this cord set in greenfield datacenter builds where facility electricians pre-wire IEC 60309 sockets adjacent to equipment racks, or retrofit existing UPS-backed circuits by replacing legacy NEMA L6-30 or hardwired connections with standardized industrial plugs. The 10-foot length accommodates vertical PDU mounting on the rear rack rail while reaching floor-level or overhead junction boxes without excess slack that invites cable management problems. Because the universal chassis connector mechanically keys to G5 uPDU enclosures, integrators eliminate the risk of mating incompatible plug types during high-pressure deployment windows—once the cord locks into the PDU, you have a secure 60-amp feed immune to accidental disconnection. Pair with Panduit G5 monitored or switched PDU models to gain per-outlet remote control and energy metering for IP cameras, access panels, and PoE lighting, all fed from a single facility-grade power source.

Where APC and Server Technology offer equivalent 60-amp IEC 60309 cord sets at similar lengths, the UPDUCRD2 distinguishes itself through Panduit's continuous-hinge strain relief and overmolded boot geometry that survived 10,000-cycle bend testing per IEC 60227—a datapoint absent from competitor datasheets. For integrators managing UPS battery cabinets, generator transfer switches, or dual-feed redundant PDU topologies, the globally-recognized IEC 60309 6h keying prevents cross-connection between 30A and 60A circuits during late-night maintenance, reducing the failure mode where underrated cords overheat and trip branch breakers mid-operation.
