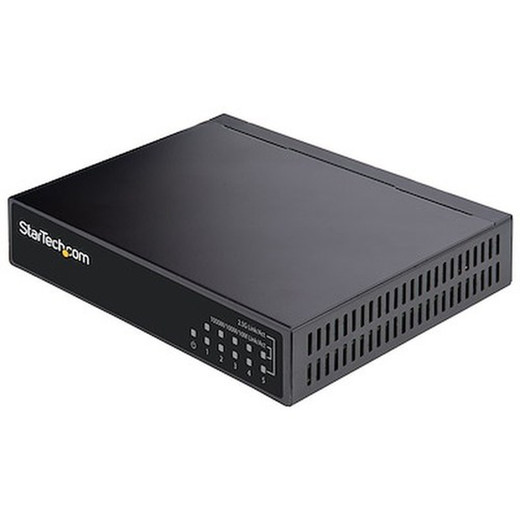

StarTech DS52000 5-Port 2.5GBASE-T Unmanaged Network Switch

Overview

The StarTech DS52000 is a five-port, 2.5GBASE-T unmanaged switch built for small workgroups, home labs, and edge surveillance segments where standard gigabit is the bottleneck but a full managed 10G switch is overkill. With 2.5 Gbps per port, a steel enclosure, and a plug-and-play design, it fits naturally between a PoE injector or NVR and the rest of your LAN — no configuration console required. If you are building out a network switch infrastructure for a small IP camera deployment or upgrading a desk segment to handle higher-bitrate streams, this is a compact, no-overhead option worth evaluating.

Key Features

• 2.5 Gbps Per Port (2.5GBASE-T, IEEE 802.3bz): Each of the five RJ-45 ports runs at up to 2.5 Gbps — 2.5x the throughput of standard gigabit. In a surveillance context, that headroom matters when you are aggregating several high-bitrate cameras (think 4K H.265 streams at 15–25 Mbps each) through a single uplink without saturating the pipe. It also auto-negotiates down to 1G and 100M, so existing cabling and devices work without modification.
• 100m Maximum Cable Run (IEEE 802.3ab): Full 2.5G speed is maintained up to 100m on Cat5e or better — the same cable plant you likely already have deployed. No need to re-pull cable or install fiber to hit 2.5G performance at standard rack-to-desk or switch-to-camera distances.
• 9K Jumbo Frame Support: Jumbo frames at 9,000 bytes reduce CPU overhead and improve throughput efficiency for large data transfers — relevant when moving video archives from an NVR to a storage server or streaming uncompressed or minimally compressed video across the segment. Standard 1,500-byte MTU links require far more packet-handling cycles for the same payload.
• IEEE 802.3x Full-Duplex Flow Control: Flow control prevents frame loss when a fast sender overwhelms a slower receiver — useful in burst-heavy surveillance environments where cameras all trigger simultaneously on a motion event and flood the switch buffer at once.
• IEEE 802.3az Energy-Efficient Ethernet (EEE): The switch scales power consumption based on link utilization and cable length. In a lightly loaded overnight surveillance window, this translates to measurable idle-power reduction without any configuration.
• IEEE 802.1p QoS Priority Tagging: The DS52000 supports 802.1p priority markings, which means upstream managed switches or routers can prioritize video traffic tagged by cameras or NVRs — important if this switch feeds into a larger managed network where voice, video, and data share bandwidth.
• Steel Enclosure with Kensington Lock Slot: The steel chassis handles the physical demands of an IT closet or desktop deployment without flex or heat-warping. The Kensington Standard K-Slot lets you physically secure the unit in shared-access environments — a small but practical feature in retail back offices or open server rooms.
• Universal AC Input (100–240V AC, 0.5A): The included AC adapter accepts any mains voltage globally, so this unit deploys in international sites without a separate power converter. Output is 12V DC at 1.0A — the adapter is included in the box.
• Compact Form Factor (6.1 × 4.7 × 1.2 in, 1.4 lb): At just over a pound and roughly the footprint of a paperback book, the DS52000 fits on a desk, inside a wall-mount box, or on a shelf without requiring rack space. For small branch deployments where rack real estate is limited, that matters.

Integration and Compatibility

Because this is an unmanaged switch, there is no VLAN segmentation, no port mirroring, no SNMP monitoring, and no spanning tree configuration — all of which are features you would need a managed switch to handle. For a simple IP camera segment with a handful of devices feeding a single NVR, unmanaged is typically sufficient and avoids misconfiguration risk. If you need VLAN isolation between camera traffic and corporate LAN, or remote monitoring of port statistics, evaluate a managed 2.5G option instead.

The five RJ-45 ports support IEEE 802.3, 802.3u, 802.3ab, and 802.3bz standards, meaning they handle 10/100/1000BASE-T and 2.5GBASE-T devices on the same switch without manual speed configuration. This makes mixed-device segments — say, a 2.5G NAS alongside 1G cameras — straightforward to wire. See the network video recorder category for compatible NVR options that benefit from 2.5G uplink capacity.

Operating temperature is rated 0°C to 45°C (32°F to 113°F), which covers standard indoor IT environments. This is not rated for outdoor or unheated enclosure deployment — keep that in mind for edge installations in unconditioned spaces. For guidance on building out a full camera network, the surveillance networking guide covers uplink sizing and switch selection in detail.

Frequently Asked Questions

Q: Does the DS52000 require any configuration out of the box?

A: No. The DS52000 is an unmanaged switch — plug in power and cables and it operates immediately with no setup, web interface, or console access required. There are no VLANs, port assignments, or management features to configure.

Q: What cable category is required to achieve 2.5 Gbps on the DS52000?

A: Cat5e or better supports 2.5GBASE-T at up to 100 meters per the IEEE 802.3bz standard. Existing Cat5e runs in most commercial buildings are sufficient — no need to re-pull Cat6 or Cat6A specifically for 2.5G performance at standard distances.

Q: Does the DS52000 support PoE (Power over Ethernet)?

A: No. The DS52000 does not deliver PoE on any port. If you need to power IP cameras or other PoE devices, you will need a separate PoE switch or PoE injector upstream. This switch handles data only.

Q: What is the warranty on the DS52000?

A: The DS52000 carries a 2-year manufacturer warranty.

Q: Can the DS52000 handle jumbo frames for NAS or video storage traffic?

A: Yes. The DS52000 supports jumbo frames up to 9,000 bytes (9K MTU), which reduces packet overhead for large sequential transfers — useful when streaming or archiving high-bitrate video to a NAS or SAN on the same segment.

Q: Is the DS52000 rack-mountable?

A: The DS52000 is a desktop form factor switch (6.1 × 4.7 × 1.2 in) and does not include rack-mount ears. It is designed for desktop, shelf, or small wall-box deployment. It is not a 1U rack unit.

Marty Allison

I reach for the DS52000 in specific situations — typically when a customer has a small NVR-based surveillance segment running 4K cameras and the 1G uplink is showing saturation during peak recording windows. The 2.5GBASE-T standard on this switch gives you 2.5x the throughput of a standard gigabit port over the same Cat5e you already have, which is the real sell here: no re-cable, no new fiber, just a switch swap and you have breathing room on the segment.

Technical Highlights:

• 2.5GBASE-T (IEEE 802.3bz): 2.5 Gbps per port on existing Cat5e to 100m — meaningful when four or five 4K cameras at 20 Mbps each are feeding an NVR and you are already pushing 80–100 Mbps aggregate through a gigabit uplink.
• 9K Jumbo Frames: Reduces packet-processing overhead for bulk video archive transfers. On a segment moving multi-gigabyte recording files to a NAS, 9K MTU can noticeably reduce CPU load on the endpoint devices compared to standard 1,500-byte frames.
• IEEE 802.3az EEE: Power scales with link utilization — in low-traffic overnight recording windows, the switch idles at reduced wattage without any configuration. With a 12V DC / 1.0A adapter included, total power draw stays modest for a five-port device.

Deployment Considerations:

• This is a data-only switch — no PoE output on any port. Plan for a separate PoE switch or injector if any connected cameras or devices need power over the cable. Mixing this switch into a PoE camera segment without upstream injectors will leave cameras unpowered.
• Operating temperature tops out at 45°C, so avoid deploying this in unventilated enclosures, attic spaces, or outdoor cabinets without active cooling. Indoor IT closets with normal airflow are fine; unconditioned spaces are not.

The DS52000 is the right fit for a small branch or retail back-office segment where you have three to five 4K IP cameras feeding a local NVR and the gigabit uplink is the proven bottleneck — not for managed environments requiring VLAN segmentation or SNMP monitoring, where a managed 2.5G switch is the correct tool.
