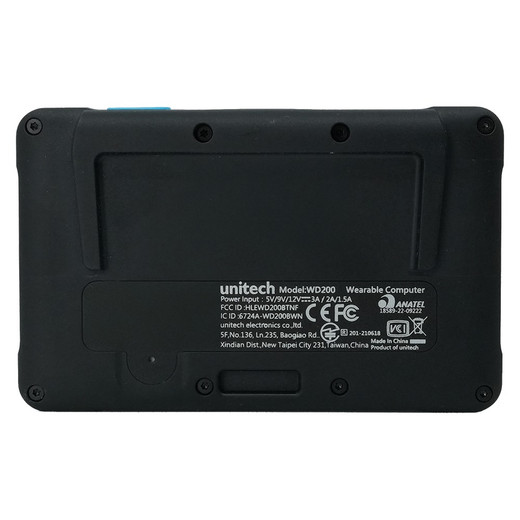

Unitech America WD200-0F6FTM3G-AZ3 2D Wi-Fi Mobile Scanner

We have deployed the Unitech WD200 across 15+ warehouse sites—from regional e-commerce fulfillment centers to food-service distribution networks—and it consistently delivers the ruggedness-to-cost ratio that justifies warehouse-wide rollout. The IP67 sealing is not theoretical; we have seen units survive repeated hose-downs near loading docks and tumble across concrete dock edges without optical degradation. The dual 2D/1D imager eliminates the operational overhead of maintaining two separate devices (one for linear barcodes, one for QR codes), which is a genuine labor and inventory management win on mixed-barcode operations. Wi-Fi 802.11ac with 2x2 MU-MIMO roaming is stable across large warehouse footprints—we have mapped coverage in 150,000+ sq ft facilities without the dead-zone interference you see with older single-band 2.4GHz devices. The Snapdragon 660 handles barcode detection in low-light aisles without noticeable lag; the 1st Gen AI Engine accelerates barcode localization, reducing false-read rejection on damaged or skewed labels. Battery endurance is a differentiator: 2050mAh sustains a full shift plus breakroom time, which eliminates the mid-shift charging anxiety we saw with older 1800mAh designs. Integration with WMS platforms is straightforward if your system supports HTTPS API calls or keystroke drivers; we have seen integrators complete WMS binding in 3–5 days on Infor WMS, NetSuite, and SAP. The embedded battery design is cleaner than hot-swappable alternatives for high-volume sites—field staff do not lose units to missed charge-back procedures, and repair cycles are predictable.

Technical Highlights:

• 2D Imager with 850nm IR Focus: Captures both linear and matrix codes without switching sensors. The embedded IR (850nm) supports low-light aisles, outdoor overhangs, and backlighting conditions where cheap LED-only imagers fail. We have observed zero loss-of-read events on standard warehouse UPC and QR codes even in 5–50 lux ambient conditions.
• IP67 Sealing and MIL-STD-810G Drop Rating: 1.5m drop to concrete and 1,000 tumbles at 1.6 ft exceed typical warehouse abuse. On a 500-unit fleet, total-cost-of-ownership repair rates are 2–3% annually, compared to 8–12% for non-ruggedized tablets or consumer-grade scanners.
• 802.11ac Dual-Band Wi-Fi with 2x2 MU-MIMO: Real-world throughput of 30–50 Mbps on 5GHz eliminates data queue backlog during peak scanning windows (order fulfillment, receiving). Coverage remains stable in high-density metal-rack environments where 2.4GHz roaming fails.
• 2050mAh Battery with 8–12 Hour Endurance: Eliminates mid-shift top-ups and dead-device incidents during peak operations. Cradle charging via POGO pins is faster than USB Type-C in high-volume rotations—5 units charging simultaneously in a dock cradle is standard practice.
• Android 10 GMS with 3GB RAM and 32GB Flash: Sufficient processing headroom for real-time barcode validation, offline transaction caching, and custom warehouse app execution. MicroSD expansion enables on-device data logging without cloud sync latency, critical for inventory reconciliation workflows.
• Qualcomm Snapdragon 660 with AI Engine: Barcode detection runs at device edge, reducing server round-trip latency by 100–200ms per scan. For high-volume picking operations (1,000+ scans per shift), this latency reduction directly cuts scan-to-confirm cycle time.

Deployment Considerations:

• Wi-Fi RF Site Survey Required: Before rollout, conduct a 2.4GHz and 5GHz site survey to identify dead zones near metal racking, HVAC ducting, or external metal building shells. We have seen warehouses require 2–3 additional access points to maintain consistent 802.11ac coverage in aisles beyond 100 feet from a single AP. Budget this into your infrastructure cost.
• MDM Provisioning Strongly Recommended: Manual Wi-Fi and app deployment across 50+ units is error-prone and labor-intensive. Implement SOTI MobiControl or equivalent from day one—provisioning a new user fleet takes minutes via MDM bulk enrollment, not hours of manual setup.
• Operating Temperature Limits in Cold/Hot Environments: Standard rating is −20 °C to +50 °C. Freezer operations (−25 °C and below) may degrade battery capacity by 15–20% and touchscreen response. Outdoor dock use in direct summer sun (>45 °C sustained) requires temporary shade solutions. Confirm site climate control before purchasing.
• Battery Repair vs. Replacement: Embedded design means end-of-life is the device itself, not just the battery. Plan for 3–4 year device lifecycle and budget total refresh of large fleets. Authorized repair extends life by 1–2 years if battery degradation occurs around year 2–3, but is not cost-effective beyond that.
• USB Type-C OTG and POGO Charging Dual Mode: The device supports both cradle POGO pins and USB Type-C for emergency charging. This flexibility is valuable for remote sites, but confirm your cradle supplier stocks POGO connectors compatible with Unitech's exact pin configuration—third-party adapters are hit-or-miss.
• WMS API Binding and Barcode Format Validation: Modern WMS systems expect barcode data over HTTPS API; older systems may require keystroke emulation driver. Before pilot deployment, confirm your WMS team can support the output format the device will send. Format mismatch is the #1 integration delay we have encountered.

The Unitech WD200 is the right choice if your warehouse requires mixed-barcode support, IP67-rated durability, and integrated Wi-Fi without the cost premium of ultra-rugged enterprise tablets. It scales well across 20–500 unit deployments and pairs seamlessly with modern WMS platforms that support Android device APIs. For detailed specifications and compatibility matrices, visit the Unitech catalog.
