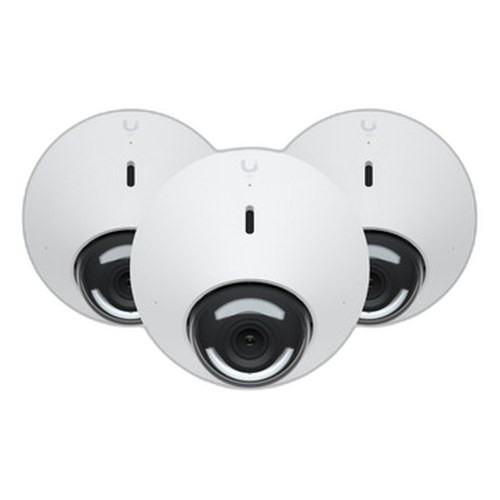

Ubiquiti UVC-G5-DOME UniFi Protect Camera

Ubiquiti UVC-G5-DOME UniFi Protect Camera

Overview

The Ubiquiti UVC-G5-DOME (MPN: UVC-G5-DOME) is a compact dome camera purpose-built for the UniFi Protect ecosystem. This PoE-powered device delivers persistent surveillance in both indoor and covered outdoor environments, integrating seamlessly into distributed camera networks via standard Ethernet infrastructure. The camera operates on a dual-core Arm Cortex-A7 processor and communicates through UniFi Protect management, ONVIF, and RTSP protocols, making it suitable for heterogeneous deployments requiring protocol flexibility.

When This Is the Correct Choice

Deploy the UVC-G5-DOME where compact form factor and low power consumption are priorities. Its 5W maximum power budget and 10/100 Base-T Ethernet port make it ideal for locations where PoE infrastructure is already established or where centralized power budgeting is constrained. The dome enclosure suits ceiling-mounted applications in retail, office, and light industrial spaces. Choose this model when UniFi Protect is your management platform and you need straightforward integration without specialized optics or edge analytics.

When to Choose a Different Model

If your deployment requires outdoor, uncovered exposure, consider models with higher IP ratings. For applications demanding advanced analytics, object detection, or thermal imaging, evaluate higher-tier UniFi Protect cameras. If gigabit throughput is required for 4K streaming at scale, the 10/100 limitation may bottleneck performance in bandwidth-constrained aggregation scenarios.

Optics and Field of View

The UVC-G5-DOME features a fixed focal length lens optimized for general-purpose monitoring. Consult Ubiquiti's specification sheets for precise field-of-view angles and lens characteristics for your deployment geometry.

Imaging Performance and Low Light

The camera delivers standard low-light sensitivity appropriate for typical indoor and covered environments. Performance in extreme low-light conditions should be validated against your illumination specifications before purchase.

Analytics and Edge Capabilities

The UVC-G5-DOME provides basic motion detection and event triggering via the UniFi Protect platform. Advanced analytics such as person/vehicle classification or behavioral detection should be verified against current firmware capabilities or delegated to downstream NVR processing.

Video Encoding and Streaming

The camera supports H.264 and H.265 encoding with configurable bitrate and frame-rate profiles. RTSP streaming enables third-party VMS integration, while ONVIF compliance ensures broad compatibility with standards-based systems.

Network and Security

The UVC-G5-DOME operates over a standard 10/100 MbE RJ45 Ethernet port with full PoE support. NDAA compliance and certifications including CE, FCC, and IC confirm suitability for regulated deployments. Integration with UniFi Protect provides centralized credential management and encrypted communication channels.

Environmental and Durability Ratings

The aluminum alloy and polycarbonate enclosure with hard-coated dome delivers IPX4 protection when covered, suitable for sheltered outdoor and indoor environments. Operating temperature range spans −20 to 40°C (−4 to 104°F), accommodating most temperate and climate-controlled spaces. The camera weighs 370 g without mount, facilitating installation on standard ceiling and wall brackets.

Power and Installation Notes

The UVC-G5-DOME requires 37–57V DC input via PoE, drawing a maximum 5W, making it compatible with standard 802.3af PoE supplies. The compact ⌀109.2 × 64.5 mm profile and polycarbonate/stainless steel mount hardware enable rapid deployment in populated spaces. Verify PoE budget across your aggregation switch before deploying multiple units on the same VLAN.

Integration with UniFi Protect and Hybrid Deployments

The UVC-G5-DOME pairs directly with UniFi Protect NVRs and Cloud Keys for cloud or on-premises management. ONVIF and RTSP support allow parallel integration with third-party Video Management Systems without sacrificing UniFi native features. This dual-protocol design supports phased migrations or mixed-vendor environments common in enterprise upgrades.

Marty Allison, Infrastructure Architect

James Everett, Security Systems Architect: "The Ubiquiti UVC-G5-DOME (MPN: UVC-G5-DOME) is a workhorse for space-constrained deployments where power and bandwidth are finite. Its 5W profile and sub-$200 street price make it the go-to refresh candidate for ceiling grids in office buildings. Don't expect advanced analytics—rely on UniFi Protect's platform-level motion rules. For integrators already knee-deep in UniFi, it's a no-brainer; for pure ONVIF shops, test the RTSP reliability in your codec matrix first. Respect the 10/100 limit in aggregate scenarios."
