Ubiquiti UVC-AI-THETA-PROLENS360 360° Panoramic AI Camera
Overview

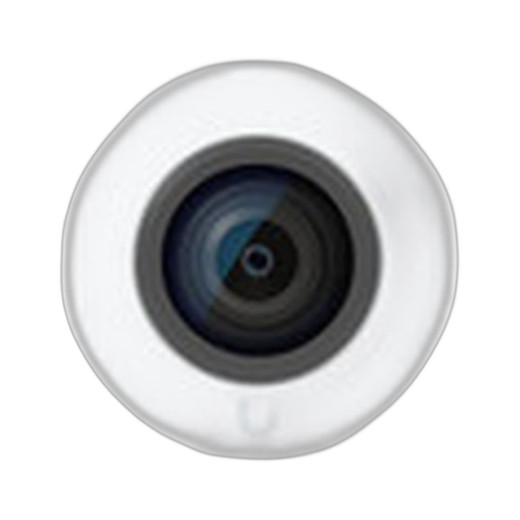

The Ubiquiti UVC-AI-THETA-PROLENS360 is a 12-megapixel fisheye panoramic camera engineered for deployments requiring full 360-degree situational awareness without the clutter of multiple overlapping sensors. Measuring just 36.6 mm in diameter and 58.9 mm in length, this model delivers comprehensive single-point coverage in retail environments, office lobbies, warehouses, and indoor industrial spaces where traditional turret or bullet form factors create visual obstruction or require complex mounting topology. As part of the Ubiquiti IP cameras ecosystem, the UVC-AI-THETA-PROLENS360 integrates natively with UniFi Protect, embedding AI-driven motion detection, object classification, and event filtering directly on the device.
When This Is the Correct Choice
Deploy the UVC-AI-THETA-PROLENS360 when a single camera must cover an entire perimeter or open floor plan without blind spots. The panoramic fisheye lens eliminates the need for 3–4 narrow field-of-view cameras, reducing installation labor and ongoing management overhead. At just 2.5W maximum power draw via standard 802.3af PoE, it won't stress budget-constrained switches or require separate power infrastructure—a real advantage on deployments spanning dozens of endpoints. Choose this model if your priority is comprehensive coverage over forensic-grade long-range detail and you're working within a climate-controlled interior environment.
When to Choose a Different Model
If your requirement involves identifying faces or license plates at distance greater than 10 feet, select a higher-resolution telephoto model from the IP camera family. Skip this unit for outdoor or unheated storage applications—the 0–40°C operating range is strictly for climate-controlled spaces. For deployments requiring sub-100ms latency or custom on-device machine learning models, evaluate alternative architectures. If you need network video recorder integration with non-Ubiquiti platforms, verify ONVIF compatibility with your VMS before committing.
Panoramic Optics and Coverage
The 12MP fisheye lens captures true 360-degree horizontal coverage in a single frame, eliminating the topology complexity of multi-camera arrays. This translates directly to faster installation—one ceiling or wall penetration instead of three, one PoE cable instead of three, one event stream to manage instead of three. The aluminum alloy and polycarbonate enclosure protects the optics from dust while maintaining the minimal profile essential for unobtrusive deployment in customer-facing spaces.
AI Analytics and Event Filtering
Native integration with UniFi Protect's machine learning pipeline delivers on-device motion detection, object classification (person, vehicle, package), and intelligent event-triggered recording. This reduces false-positive notifications and cuts storage costs by recording only meaningful events rather than every shadow or HVAC artifact. The platform filters out typical indoor false positives—lights cycling, curtain movement—leaving your team to focus on actionable incidents.
Video Compression and Bandwidth
Support for H.265 and H.264 codecs gives you flexibility to optimize for storage or bandwidth. H.265 cuts file size roughly 40–60% compared to H.264 at equivalent quality—a material savings on 24/7 multi-camera recording. Adaptive bitrate streaming allows the camera to downgrade quality on bandwidth-constrained links, preserving remote monitoring capability even when primary WAN capacity is saturated.
Power and Network Integration
The UVC-AI-THETA-PROLENS360 operates entirely over standard 802.3af PoE (2.5W nominal, peak under 3W), meaning it integrates into any managed or unmanaged PoE switch without custom power supplies or inline injectors. All video streams are encrypted in transit and at rest; certificate pinning and role-based access control are enforced at the UniFi Protect platform layer. Firmware receives monthly security patches aligned with Ubiquiti's standard release cycle, protecting against newly disclosed vulnerabilities.
Environmental and Compliance
The aluminum and polycarbonate construction is rated for typical office and indoor warehouse environments. The camera holds FCC, IC, and CE certification, confirming compliance with North American and European electromagnetic standards. Operating temperature range is strictly 0–40°C (32–104°F), making it suitable for climate-controlled facilities but not outdoor, unheated storage, or exposed loading docks.
Frequently Asked Questions
Q: Can I use the UVC-AI-THETA-PROLENS360 outdoors or in an unheated warehouse?
A: No. The operating temperature range is 0–40°C (32–104°F). For outdoor or unheated spaces, select a model with an extended temperature rating and an appropriate IP enclosure rating (IP67 minimum for wet environments).
Q: Does the UVC-AI-THETA-PROLENS360 work with Milestone XProtect or other third-party VMS platforms?
A: The camera is designed for native UniFi Protect integration. Verify ONVIF Profile support with your VMS vendor before deployment if you require non-Ubiquiti platform compatibility.
Q: What is the power consumption, and will it strain my PoE switch?
A: The UVC-AI-THETA-PROLENS360 draws 2.5W at maximum capacity via standard 802.3af PoE. A 48-port PoE switch can theoretically support hundreds of these units without exceeding budget constraints—ideal for large multi-site deployments.
Q: How much storage will a UVC-AI-THETA-PROLENS360 require for 24/7 recording?
A: Storage depends on bitrate, codec (H.265 vs H.264), and retention period. H.265 encoding reduces file size 40–60% compared to H.264. Event-triggered recording (motion + object classification) reduces storage significantly versus continuous recording. Consult your UniFi Protect documentation for bit-rate calculations specific to your quality and retention targets.
Q: Is the 360° fisheye image already de-warped, or do I need to apply post-processing?
A: UniFi Protect handles fisheye de-warping in the software layer. You can configure the panoramic view or request standard rectilinear perspective views within the app. No external stitching or post-processing is required.
Q: What mounting options are available for the UVC-AI-THETA-PROLENS360?
A: The compact form factor supports ceiling, wall, or pole-mounted installations. Confirm specific mounting bracket compatibility with the UniFi Protect documentation or contact your integrator for application-specific hardware recommendations.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UVC-AI-THETA-PROLENS360 solves a real integration problem: how to get 360-degree awareness without a messy three-camera array and three separate PoE cables. At 2.5W maximum draw, this unit is a PoE lightweight—you'll fit dozens on a single 48-port switch without budget friction. The 12MP sensor packs enough pixels across the fisheye plane to hold detail in most retail or office settings, though you'll lose long-range recognition that a 4MP telephoto would give you.
Technical Highlights:
- 2.5W PoE (802.3af): Stays under the standard midspan budget—no custom injectors, no power supply sprawl. On a 48-port PoE switch, you can deploy 40+ units and still have headroom.
- 12MP fisheye with 360° horizontal coverage: Eliminates the topology burden of three overlapping cameras. One hole in the ceiling, one cable drop, one stream to manage. Installation labor cuts by half on multi-site builds.
- H.265 + H.264 codec flexibility: H.265 cuts storage roughly 40–60% versus H.264 at equivalent visual quality. On 24/7 recording across 30+ cameras, that's material cost. Adaptive bitrate adjusts automatically if WAN throughput drops—essential for remote sites.
Deployment Considerations:
- Temperature range is strictly 0–40°C. Don't force this into an unheated warehouse or loading dock—you'll see performance degradation and warranty problems. For those sites, bump to an outdoor-rated variant with extended operating temperature.
- The fisheye projection is real: you get full 360° coverage but no optical zoom. If forensic identification at 20+ feet is the goal, this isn't it. Pair it with a second fixed-position higher-megapixel unit if you need both panoramic situational awareness and telephoto detail.
- UniFi Protect AI filtering (person/vehicle/package detection) runs on-device, reducing false-positive recordings. This alone justifies the platform—you'll see storage and analyst fatigue drop noticeably compared to motion-only triggering.
Deploy the UVC-AI-THETA-PROLENS360 in retail showrooms, office lobbies, warehouse picking floors, and any interior space where a single vantage point must cover 360° without obstruction. It's not a replacement for telephoto or outdoor surveillance, but for panoramic interior awareness on a tight PoE budget, it's a solid technical fit.
