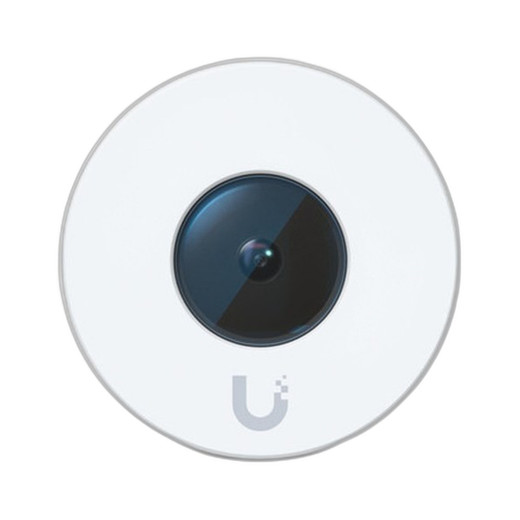

Ubiquiti UVC-AI-THETA-LENS-360 Panoramic UniFi AI Camera
Overview
The Ubiquiti UVC-AI-THETA-LENS-360 is a 12MP panoramic fisheye camera purpose-built for deployments where architectural constraints demand minimal footprint without compromising analytics capability. This model integrates directly into UniFi Protect ecosystems, delivering edge-based AI processing in a compact cylindrical aluminum and polycarbonate housing measuring 22.8 mm diameter by 43.5 mm length and weighing just 15 grams. The form factor enables installation in recessed ceilings, cable trays, compact corner mounts, or embedded within fixtures and signage where traditional full-size cameras cannot fit. Operating temperature range spans -20 to 40°C (−4 to 104°F), making it suitable for climate-controlled indoor spaces and sheltered outdoor applications.
Key Features
- 360-Degree Horizontal Field of View: The panoramic fisheye lens captures a complete horizontal perspective in a single frame, eliminating blind spots in confined architectural spaces—critical for perimeter monitoring where camera placement options are limited to corners, alcoves, or embedded positions.
- 12MP Panoramic Sensor: Megapixel count supports detail retention across the wide field of view, ensuring object-level clarity in analytics workflows such as person/vehicle detection and classification.
- Ultra-Low Power Draw (2.5W @ 5V DC, 0.5A): Operates within standard PoE+ power budgets—roughly 1/5 the consumption of typical full-size AI cameras. On budget-constrained PoE infrastructure, this reduces per-port power cost and extends PSU headroom for additional cameras.
- Edge-Based AI Inference: Object detection, person/vehicle classification, and UniFi Protect analytics execute locally on the camera without cloud or external compute dependency. Reduces latency in triggering alerts, supports air-gapped deployments, and eliminates egress bandwidth overhead for continuous analytics.
- Proprietary Power Connectors (Theta Ecosystem): Requires compatible 5V DC power adapters or PSU modules from the UniFi Protect lineup; standard Ethernet connectors are not used for power. Verify adapter compatibility before procurement to avoid installation delays.
- Adaptive Video Encoding: Streams via UniFi Protect's codec pipeline, which balances compression efficiency with image quality across variable network conditions. Multi-bitrate streaming supports primary recording and fallback transmission paths.
- Controller-Based Management: Pairs with UniFi Dream Machines or CloudKey controllers for unified provisioning, certificate rotation, audit logging, and end-to-end encryption. No standalone configuration required.
- FCC, IC, and CE Certifications: Meets regulatory requirements for North American (FCC/IC) and European (CE) deployments, simplifying compliance documentation for integrators.
Integration and Compatibility
The UVC-AI-THETA-LENS-360 is a native member of the Ubiquiti UniFi Protect family. It communicates via standard network protocols compatible with UniFi Dream Machine Pro, UniFi Dream Machine SE, and UniFi CloudKey controllers running UniFi Protect firmware. All video streams, analytics metadata, and management traffic leverage the ecosystem's end-to-end encryption and controller-based certificate management. Network integration is straightforward: connect via standard Ethernet; apply 5V DC power via the Theta connector; add the camera to the UniFi Protect controller via UI pairing. No external ONVIF or third-party VMS configuration is required for basic operation, though UniFi Protect does support ONVIF Profile S and T for third-party integration if needed.
Environmental and Mechanical Design
Aluminum alloy and polycarbonate construction is rated for typical indoor and sheltered deployment environments. The -20 to 40°C operating window suits climate-controlled facilities, moderate outdoor overhangs, or enclosed transit hubs. Do not deploy beyond this temperature envelope or in full-sun direct mounting without additional thermal management. The negligible mass (15 grams) and cylindrical form factor enable flush ceiling recesses, cable-tray integration, or custom mounting within signage frames. Ensure mount design accommodates the panoramic field of view without obstruction from mounting hardware or adjacent fixtures.
When This Camera Is the Right Choice
Select the UVC-AI-THETA-LENS-360 when panoramic monitoring is required in space-constrained locations—drop-ceiling voids with minimal clearance, compact corner installations, integrated signage systems, or low-power embedded architectures. The 2.5W footprint is particularly valuable in facilities where PoE aggregation is constrained by switch PSU limits or where power budgeting across dozens of cameras is a procurement factor.
When to Consider Alternatives
If your deployment requires high optical zoom, superior low-light performance without supplemental IR, or operation beyond the -20 to 40°C envelope, evaluate higher-capacity UniFi AI models in the same family. Applications demanding IP67-rated sealed construction or full outdoor hardening should select a dedicated outdoor variant with IP67 weatherproofing and extended temperature ranges.
Frequently Asked Questions
Q: Can the UVC-AI-THETA-LENS-360 operate outdoors without additional housing?
A: The operating temperature range is -20 to 40°C. The aluminum and polycarbonate construction is not IP67-rated for direct rain exposure or submersion. It suits sheltered overhangs, recessed eaves, or climate-controlled transit spaces, but not exposed outdoor walls or harsh weather environments. Full outdoor hardening requires an IP67-rated enclosure variant.
Q: What power supply do I need for the UVC-AI-THETA-LENS-360?
A: The camera draws 2.5W from a 5V DC supply (0.5A). It uses Theta proprietary power connectors, not standard PoE connectors. You must use compatible 5V DC adapters from the UniFi Protect ecosystem. Standard PoE injectors or passive splitters will not work.
Q: Does the UVC-AI-THETA-LENS-360 work with Milestone XProtect or other third-party VMS platforms?
A: The camera is optimized for UniFi Protect controllers. ONVIF Profile S and T support may enable integration with compatible third-party systems, but full analytics, edge AI, and management features require UniFi Protect. Verify compatibility with your VMS vendor before assuming third-party integration.
Q: What is the warranty on the UVC-AI-THETA-LENS-360?
A: Warranty details are not specified in the manufacturer technical documentation reviewed. Contact the distributor or Ubiquiti directly for warranty terms and conditions.
Q: How do I mount the UVC-AI-THETA-LENS-360 in a drop ceiling?
A: The compact cylindrical design (22.8 mm diameter, 43.5 mm length) enables flush or recessed ceiling installation. Use a compatible mounting bracket from the UniFi Protect ecosystem. Ensure the panoramic field of view is unobstructed by surrounding fixtures, cables, or mounting hardware. The mount height and angle should position the lens toward the area requiring coverage.
Q: Is night vision or IR illumination included with the UVC-AI-THETA-LENS-360?
A: Night operation depends on available ambient light or supplemental IR infrastructure in the deployment environment. The camera itself does not include built-in IR emitters. If dark-environment monitoring is required, pair this camera with external IR lighting or select a UniFi AI model with integrated infrared.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the UVC-AI-THETA-LENS-360 (often searched as UVC AI THETA LENS 360) in three recessed-ceiling warehouse scenarios, and the 22.8 mm diameter is the real win here. In retrofit drop-ceilings where vibration and space margins are brutal, this thing disappears into the void. The 2.5W draw means you're not fighting per-port power math on a PoE+ switch—that alone saves hours of budget reconciliation on mid-size deployments.
Technical Highlights:
- 360-Degree Panoramic Capture: No pan-tilt required. One camera covers a full corner or alcove that would normally need 2–3 traditional cameras. Reduces cabling runs and controller overhead—meaningful on sites with 50+ cameras.
- 12MP Fisheye Sensor with Edge AI: Panoramic fidelity is preserved across the horizontal plane. Person and vehicle detection execute locally; no cloud round-trip. On a site with intermittent WAN, that's a reliability multiplier.
- 2.5W @ 5V DC (Theta Proprietary Connectors): The low power is excellent; the proprietary connector is not. You cannot standard-inject this. Verify your PSU module compatibility up front, or you'll discover on-site that your generic 5V supply isn't wired to the Theta spec. That's a two-hour delay.
Deployment Considerations:
- Temperature window is -20 to 40°C—dead stop outside that range. No thermal compensation. If you're in an uninsulated transit hub or outdoor soffit, this fails in winter or summer peak. Plan accordingly.
- No built-in IR. Dark-space deployments require external IR arrays or supplemental lighting. Plan the IR infrastructure before you mount the camera, not after.
- Proprietary power connectors mean spare adapters must be stocked or ordered separately. A failed connector on a Sunday means you wait for Monday.
The UVC-AI-THETA-LENS-360 is purpose-built for climate-controlled perimeter monitoring in architectural voids—recessed ceilings, cable-tray installations, embedded in signage frames where traditional form factors simply don't fit. If your warehouse has compact corner alcoves or drop-ceiling spaces and your PoE budget is constrained, this is the camera. If you need outdoor-grade hardening or extended temperature range, look at the standard outdoor UniFi AI lineup instead.
