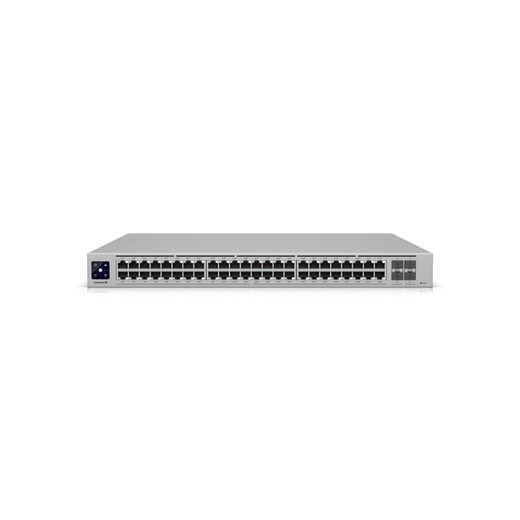

Ubiquiti USW-ENTERPRISE-48-POE 48-Port PoE+ Switch

Ubiquiti USW-ENTERPRISE-48-POE 48-Port PoE+ Network Switch

Overview

The Ubiquiti USW-ENTERPRISE-48-POE is a Layer 3 managed switch purpose-built for access-layer deployments where both PoE power capacity and port speed matter. With 48 ports of 2.5G connectivity and four 10G SFP+ uplinks, this switch delivers 160 Gbps non-blocking switching capacity and 238 Mpps forwarding throughput — enough to handle a mid-sized security network or mixed camera/WiFi infrastructure without artificial bottlenecks. The unit integrates into Ubiquiti network environments via UniFi Network management, supporting standard IPv4/IPv6 routing and up to 1,000 VLAN segments for network segmentation.

Key Features

• 720W PoE Output Budget: Sufficient to power 40–50 standard 802.3at PoE cameras simultaneously, or roughly 30–35 PoE+ devices. This eliminates the need for external PoE injectors on most mid-market surveillance builds, reducing clutter and single points of failure in your rack.
• All-2.5G Port Architecture: Every one of the 48 ports runs at 2.5 Gigabit, not a mixed 1G/multi-gig fabric. This means no bandwidth negotiation between cameras and the switch — each access port delivers consistent 2.5G throughput. In dense deployments with 30+ high-bitrate cameras, this eliminates the congestion you'd see on 1G-only switches.
• Four 10G SFP+ Uplinks: Non-blocking uplink capacity for stacking multiple switches, inter-switch trunking, or direct core aggregation. Passive DAC (direct-attach copper) or active optical modules both supported, giving you flexibility in cabling runs.
• 150W Base Power Draw (excluding PoE): Low idle consumption means modest cooling overhead in your data center or equipment shelter. Maximum system draw reaches 870W at full PoE output, but under typical 50-60% PoE utilization, expect roughly 400–500W total. This simplifies PDU sizing and UPS provisioning.
• 1U Rack Form Factor, 6.2 kg: Fits any standard 19-inch rack alongside your existing infrastructure. Weight is light enough for single-person installation, critical in remote or tight spaces.
• NDAA Section 889 Compliant: Cleared for deployment in regulated federal and defense-adjacent environments. Certifications include CE, FCC, IC, and Anatel — covers North America, EU, and LatAm without additional paperwork.
• 802.1Q VLAN Support (up to 1,000 VLANs): Segment your cameras from guest WiFi, guest networks, or management VLANs without breaking a sweat. Link Aggregation Control Protocol (LACP) and Spanning Tree (RSTP/MSTP) handle redundancy and failover automatically.
• Jumbo Frame Support: Handles larger packet sizes (9,000 byte frames), useful if you're running NVR-to-SAN storage traffic or virtualized workloads on the same switch fabric.

Integration & Compatibility

Management is Ethernet-based and integrates with Ubiquiti's UniFi Network application for centralized provisioning, monitoring, and guest portal deployment across multiple sites. The switch operates independently without a controller (standard Layer 3 switching works out of the box), but adoption into UniFi simplifies configuration of VLANs, QoS, and multi-switch fabric designs. All 48 ports use standard RJ45 connectors; SFP+ uplinks accept passive DAC or active optical transceivers (not included). Consider NVR systems or VMS platforms that support ONVIF if you're mixing Ubiquiti cameras with third-party equipment.

Deployment Considerations

This switch excels in campus security networks, warehouse automation facilities, and branch-office environments. Typical use cases include powering a single-switch farm of 30–48 IP cameras (depending on power draw per model), aggregating WiFi 6/6E access points across a building, or mixed IoT/sensor networks. Operating temperature range is –5°C to 40°C, suitable for climate-controlled data centers and outdoor-rated equipment shelters. If your ambient temperature routinely exceeds 35°C, monitor power envelope — simultaneous draw from all 48 ports plus uplink traffic may approach thermal limits; in extreme cases, consider a split deployment across two switches.

For redundancy, pair the USW-ENTERPRISE-48-POE with a second unit via the 10G uplinks in a ring topology or mesh. Refer to network architecture guides for stacking details. PoE budget allocation is your primary constraint — always audit your camera power specs and sum total draw before deployment. If you're planning to grow beyond 48 ports, the modular approach (multiple switches linked via 10G) scales cleanly without adding single points of failure.

Frequently Asked Questions

Q: Can I power 48 maximum-power PoE+ devices (30W each) simultaneously?

A: No. The 720W PoE budget supports approximately 40–50 standard PoE devices (13–15W each) or roughly 24–30 PoE+ devices (25–30W each) at full draw. Always sum the maximum wattage of every powered device you plan to deploy and verify it is less than 720W. The switch will not over-subscribe, but simultaneous peaks may trigger thermal throttling.

Q: Does the USW-ENTERPRISE-48-POE require a separate controller or cloud subscription?

A: No. It operates as a standard managed Layer 3 switch without a controller. However, adoption into Ubiquiti's UniFi Network application (running on your own server or cloud instance) dramatically simplifies multi-switch management, VLAN configuration, and monitoring. No subscription required — UniFi Network is free for on-premises deployments.

Q: What happens if I exceed the 720W PoE budget?

A: The switch will not deliver power beyond 720W total. Ports will be selectively powered down or will fail to negotiate power if the aggregate draw reaches the limit. This is a hard ceiling — plan accordingly and use a second switch if you need more PoE capacity.

Q: Can I use passive DAC cables on the 10G SFP+ uplinks?

A: Yes. Passive direct-attach copper (DAC) modules are supported and cost less than active optical modules, but they work only for shorter runs (typically under 7 meters). For longer distances, use active optical or fiber SFP+ modules.

Q: Is the USW-ENTERPRISE-48-POE NDAA Section 889 compliant?

A: Yes. This model carries NDAA compliance certification and is suitable for federal and regulated deployments.

Q: What SFP+ module types are compatible with the four uplink ports?

A: Both 10GBASE-SR (multimode fiber), 10GBASE-LR (single-mode fiber), and passive/active DAC copper modules are supported. Verify compatibility with your uplink equipment before purchasing transceivers — Ubiquiti does not include SFP+ modules.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The USW-ENTERPRISE-48-POE is a pragmatic, non-nonsense access switch that does exactly what you need: delivers 48 ports of consistent 2.5G throughput, supplies 720W of PoE, and stays out of your way. For integrators building mid-market surveillance or WiFi infrastructure, this switch eliminates the artificial bottlenecks and power-starvation headaches that plague mixed 1G/multi-gig designs. The all-2.5G fabric and four 10G uplinks mean you are not guessing about oversubscription — you have genuine non-blocking throughput, which matters when you are aggregating 30+ HD or 4K camera streams.

Technical Highlights:

• 720W PoE Budget: Covers a typical mid-market camera farm (40–50 units at 13–15W each) without external injectors. Eliminates complexity and a common failure point in remote sites.
• 48 x 2.5G Ports: No negotiation between devices and the fabric. Each camera or AP gets full 2.5G bandwidth, not throttled to 1G. Real difference in dense deployments where multiple streams share a single access port.
• 160 Gbps Non-Blocking Fabric, 238 Mpps: Throughput is genuinely non-blocking — no hidden arbitration or backplane oversubscription. Scales predictably as you add cameras or access points.
• NDAA Compliance + Certifications: Federal-ready out of the box. No procurement delays or additional compliance audits for regulated environments.

Deployment Considerations:

• PoE Budget is Hard: Plan your power draw carefully. Sum the max wattage of every powered device before you deploy. If you go over 720W, ports will drop. A second switch is cheaper than a field power retrofit.
• Thermal Headroom in Hot Ambient: If your equipment shelter or outdoor cabinet runs consistently above 35°C, monitor power draw. At full PoE output and high ambient, the unit may throttle. This is not a fault — it is thermal protection.
• SFP+ Modules Not Included: Budget for DAC cables or fiber optics separately. Passive DAC is cheap for short runs (under 7m); longer distances call for active or fiber.

This switch is built for warehouse automation networks, multi-building campuses with dense camera arrays, and branch offices that need one box to power cameras, APs, and a few IoT sensors all at once. If you are deploying fewer than 12 cameras or a single WiFi AP, you are overspec'd. If you are planning 60+ cameras or expect growth beyond one switch, design for two units in a stacked or meshed topology — the 10G uplinks make it clean.
