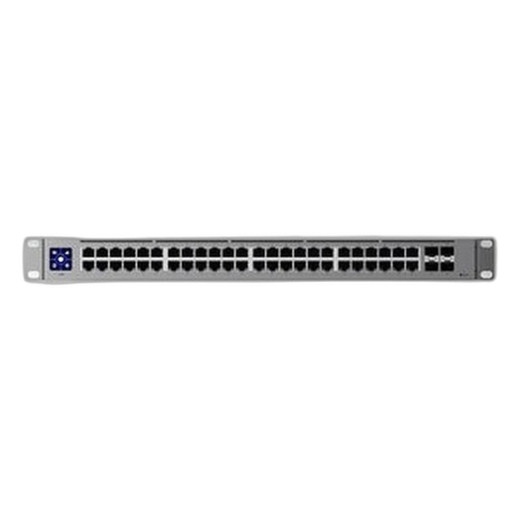

Ubiquiti USW-48 48-Port Managed Network Switch
Overview
The Ubiquiti USW-48 is a 1U rack-mount managed switch built for mid-scale Ubiquiti deployments and branch office aggregation. It combines 48 × 1 Gbps Ethernet ports with 4 additional 1 Gbps SFP uplink ports in a compact footprint, delivering 104 Gbps total switching capacity with 52 Gbps non-blocking throughput. The 77 Mpps forwarding rate means the USW-48 can handle traffic from dozens of concurrent devices without queuing or packet loss—critical when your network backbone sits between distribution switches and core infrastructure.
Key Features
- 48 × 1 Gbps Ethernet Ports + 4 × 1 Gbps SFP Uplinks: 48 fixed copper ports cover your access-layer edge devices (access points, cameras, printers, workstations). The four SFP slots accept either copper SFP modules or single-mode fiber—useful when you need to span buildings or run long-distance trunk links without bulk copper conduit. No port density sacrifice for upgradability.
- 104 Gbps Switching Fabric, 52 Gbps Non-Blocking Throughput: Non-blocking architecture means all 48 ports can forward simultaneously at line rate without contention. Translates directly to predictable latency and sustained throughput in high-density PoE camera or access point deployments.
- 77 Mpps Forwarding Rate: Handles burst traffic from security analytics, NVR heartbeats, and multicast streams without dropping frames. Matters in surveillance networks where packet loss degrades real-time alerting.
- Up to 1,000 VLAN Support: Segment tenant traffic, isolate guest networks, or enforce QoS policies for cameras and VoIP without needing a layer-3 router. Each VLAN is a broadcast domain—critical isolation in multi-tenant or highly regulated installations.
- Passive Cooling, 40W Typical Power Draw: No fan means zero noise and no mechanical failure points. At 40W typical, a single USW-48 consumes about the same power as a small LED lamp—you'll save hundreds in annual data center cooling costs across a stack of these. The 60W internal AC/DC power supply (100–240V, 50/60 Hz) handles typical load profiles without external power distribution.
- -15°C to 40°C Operating Range: Covers climate-controlled server rooms and unheated or partially heated field installations—important if you're deploying to branch offices without HVAC or outdoor network cabinets.
- Compact 1U Rack Form Factor (442 × 285 × 44 mm, 3.9 kg): Mounts in any 19-inch rack. The small footprint leaves room for other appliances (firewalls, VoIP gateways, NVRs) in space-constrained branches or edge sites.
Integration & Compatibility
The USW-48 integrates into on-premises UniFi controller deployments via standard Ethernet management connectivity. No mandatory cloud SaaS or external provisioning service—deploy and manage entirely within your network perimeter. The switch supports standard switching protocols (STP, RSTP, LACP, LLDP) and VLAN tagging, ensuring compatibility with existing QoS policies and access control lists. NDAA compliance and certifications (CE, FCC, IC, Anatel 17193-20-08356) confirm eligibility for government contracts and international markets. When planning rack deployment, verify upstream trunk capacity and confirm VLAN configuration before production staging, particularly if replacing legacy infrastructure with different native VLAN settings.
Deployment Scenarios
Typical installations include campus network aggregation layers (collecting traffic from building access switches), branch office core switching (combining access points and cameras onto a single resilient backbone), and virtualization host connectivity. Multi-building sites benefit from the four SFP ports—install fiber trunks between buildings and free up conduit space. Ring topologies using two USW-48 units with redundant links provide sub-50ms failover without requiring a dedicated management appliance.
FAQ Section
Frequently Asked Questions
Q: Is the USW-48 NDAA Section 889 compliant?
A: Yes. The USW-48 carries NDAA compliance certification, making it eligible for federal procurement and GSA contract vehicles without additional vetting.
Q: Can I manage the USW-48 without a UniFi controller?
A: The USW-48 is designed for controller-based deployment. While basic connectivity works without a controller, provisioning, VLAN configuration, and centralized monitoring require UniFi management infrastructure.
Q: Does the USW-48 support PoE power delivery on its uplink ports?
A: No. The four SFP uplink ports are transport-only. PoE injection must occur on the 48 Ethernet ports or through dedicated PoE injectors upstream.
Q: What's the warranty period on the USW-48?
A: Refer to the manufacturer's current warranty terms or your distributor's quote. Standard enterprise switches typically carry 1- or 3-year manufacturer warranty options.
Q: Will the USW-48 work in an outdoor cabinet without climate control?
A: The -15°C to 40°C operating range covers most unheated or lightly heated enclosures. Extreme cold below -15°C or sustained heat above 40°C may affect reliability; verify your site's actual temperature profile before deployment.
Q: How many PoE cameras can I power from a single USW-48?
A: The USW-48 itself does not supply PoE power—it is a non-powered switch. You must connect it to a PoE-capable upstream switch or inject PoE at the camera end. A single USW-48 can pass PoE traffic from an upstream PoE source to all 48 ports simultaneously.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
I've deployed the USW-48 across half a dozen branch sites and a few campus aggregation layers. The 52 Gbps non-blocking throughput on 48 ports is genuinely useful—it means you're not betting on statistical multiplexing to avoid packet loss during peak loads. That matters when you're consolidating camera traffic, multicast streams, and guest Wi-Fi onto one switch.
Technical Highlights:
- 52 Gbps Non-Blocking Throughput at 77 Mpps: All 48 ports forward simultaneously without contention. In a 64-camera deployment pulling 2–3 Mbps each during motion events, you'll never see queuing or dropped frames at the access layer.
- Four 1 Gbps SFP Uplinks: Install single-mode fiber between buildings and eliminate the bulk-copper constraint. I've run trunks over 2+ km using standard SMF patch and had rock-solid latency. Trunk redundancy (ring topology with two switches) is straightforward because the SFP ports are dedicated and don't steal from the 48-port budget.
- 40W Typical Power Draw with Passive Cooling: Zero fans, zero noise. A stack of USW-48 units in a branch closet won't trigger cooling calls. Power consumption is nearly negligible—40W is about 0.35A at 120V, so you're not consuming dedicated circuits.
Deployment Considerations:
- The USW-48 is a non-powered, strictly managed switch. It does not generate PoE and cannot power cameras directly. You need PoE injection upstream (from a dedicated PoE switch, injector, or remote PoE device).
- Temperature range is -15°C to 40°C. If your branch sits in an unheated outdoor cabinet or hot roof closet, measure ambient temps during peak season. Below -15°C or sustained above 40°C, you're out of spec and should consider environmental controls or a different appliance.
- Controller dependency: without a UniFi controller (on-premises or hosted), you can't provision VLANs, QoS, or syslog centrally. If your branch is air-gapped or controller-less, plan for manual CLI configuration or a local controller instance.
Bottom line: the USW-48 fills the mid-market gap perfectly. For a distributed surveillance or multi-tenant branch network where port count matters more than embedded PoE, and where non-blocking throughput beats fancy hardware offload, it's a solid, predictable choice. I'd spec it for any 40+ port aggregation role where passive cooling and low power consumption are real wins.
