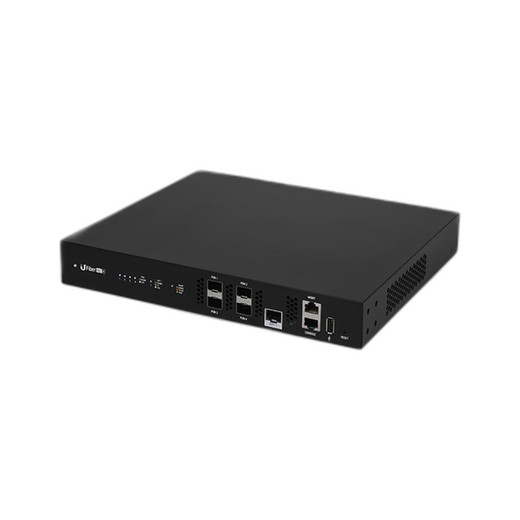

Ubiquiti UF-OLT-4 GPON Optical Line Terminal
Overview
The Ubiquiti UF-OLT-4 is a 1U rackmount optical line terminal purpose-built for fiber-to-the-premises (FTTP) and carrier-grade GPON deployments. It terminates up to 512 client endpoints across four GPON SFP ports, each supporting ITU-T standard GPON speeds. The fifth port is a 10G SFP+ uplink for high-speed aggregation to core infrastructure or backbone fiber without bottlenecking downstream capacity. At just 35W power draw (excluding SFP modules), the UF-OLT-4 fits resource-constrained environments—colocation facilities, edge data centers, or distributed network hubs where thermal and electrical budgets matter. The compact 5.95 lb, 1U footprint minimizes rack real estate while delivering the port density needed for mid-sized operator buildouts.
Key Features
- Four GPON SFP Ports: Each port delivers standard ITU-T GPON line rates per splitter ratio. At 512 total client capacity, this allows scaling to approximately 128 endpoints per port when fully populated—practical for urban or suburban FTTP networks without requiring stacked chassis for every neighborhood.
- 10G SFP+ Aggregation Uplink: Dedicated high-speed port connects directly to core switches or backbone fiber. This isolation prevents user traffic congestion from starving management or forcing OLT-to-core link saturation on very dense deployments.
- Out-of-Band Management Ethernet: Separate Ethernet port and RJ45 serial console ensure the OLT remains accessible and provisioned even when user-facing GPON ports experience heavy load or misconfiguration. Critical for carrier SLAs and troubleshooting during outages.
- 4,062 VLAN Support: Enables per-tenant, per-service VLAN segmentation. A single OLT can serve multiple customer segments, MDU floors, or enterprise campus zones without hardware duplication. VLAN 4062 is reserved for management; remaining namespace is fully available for subscriber traffic.
- UNMS Integration: Mobile app and web GUI enable remote provisioning, firmware updates, and monitoring across multiple UF-OLT-4 deployments from a single pane of glass. Reduces operational overhead on multi-site operator networks.
- Low Thermal Footprint: 35W total consumption (SFP modules draw additional power per spec) simplifies cooling design in cramped colocation cages or edge facilities where HVAC capacity is shared across many operators.
Deployment Context
The UF-OLT-4 scales efficiently for medium-density fiber networks. A single unit with four GPON splitters can serve 512 ONT endpoints, making it well-suited to urban or suburban FTTP service areas, multi-dwelling unit (MDU) fiber rings, and private fiber networks on enterprise campuses. For larger footprints, multiple units can be distributed across regional hubs or colocation points without requiring expensive stacked architectures. The standard 19-inch rackmount form factor and low weight mean installation into existing rack infrastructure is straightforward; ensure 3U vertical clearance for thermal convection and cable access.
Network Integration & Management
The out-of-band Ethernet and serial console are standard carrier-grade practices—they isolate management traffic from user data and allow OLT access during bootstrap, troubleshooting, or when subscriber traffic saturates the GPON ports. Integration with UNMS centralization means large operator networks avoid per-site web logins and manual firmware staggering. SFP/SFP+ transceiver modules are not included and must be sourced separately; select single-mode or multi-mode modules based on fiber type and distance requirements to your aggregation network.
Frequently Asked Questions
Q: Does the UF-OLT-4 support multiple ONT vendors?
A: Yes. The UF-OLT-4 implements standard ITU-T GPON specifications, so it interoperates with any standards-compliant ONT. Confirm ONT firmware supports the OLT's management protocols (OMCI) for full provisioning automation.
Q: What SFP/SFP+ transceiver modules do I need?
A: For the four GPON ports, use single-mode (9/125 µm) SFP GPON optics rated for your fiber distance. For the 10G uplink, single-mode SFP+ (e.g., SFP-10G-SR for short reach, SFP-10G-LR for long haul). Modules are sold separately; check compatibility with your fiber plant and aggregation switch.
Q: Can I manage the UF-OLT-4 remotely without UNMS?
A: Yes. The web GUI and serial console provide out-of-band access regardless of UNMS availability. UNMS adds centralized multi-site provisioning and monitoring but is not required for day-to-day OLT operation.
Q: What is the maximum number of ONTs per GPON port?
A: Standard GPON supports up to 128 ONTs per port via passive optical splitter. The UF-OLT-4's aggregate 512-client capacity assumes four ports each serving ~128 endpoints. Actual per-port density depends on splitter topology and ONT handshake load.
Q: Does the UF-OLT-4 support redundancy or failover?
A: The UF-OLT-4 is a single-unit OLT. Redundancy is achieved by deploying a second OLT at a different site and configuring dual GPON rings or backup uplinks via the aggregation network. Check UNMS or your ONT management system for dual-homing capabilities.
Q: What is the operating temperature range?
A: Standard commercial datasheet specifies 0°C to 40°C. For extended temperature environments (e.g., outdoor shelters), confirm operating limits in the full datasheet and ensure adequate ventilation or enclosure thermal management.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UF-OLT-4 occupies a practical sweet spot for mid-market fiber operators and enterprise campus deployments. Four GPON ports with 512 aggregate client capacity scales cleanly without over-provisioning a single location. The 35W footprint and 1U form factor mean you're not burning unnecessary power or consuming rack space. What matters on the bench: that out-of-band Ethernet and serial console are non-negotiable. They're what keeps the OLT accessible when user traffic gets congested or misconfigured—standard carrier-grade practice.
Technical Highlights:
- Four GPON SFP + 10G SFP+ Uplink: Segregates management from subscriber traffic and prevents aggregation link saturation on dense deployments. The 10G uplink alone means you can serve 512 clients without worrying about backbone bottleneck.
- 4,062 VLAN Support: Critical for multi-tenant and per-service segmentation. One OLT can manage MDU floors, campus zones, or wholesale customer slices without hardware duplication.
- 35W Base Power Draw: Minimal thermal and electrical footprint—significant when colocation or edge-facility HVAC and PDU capacity is shared across multiple operators or tenants.
Deployment Considerations:
- SFP/SFP+ transceiver modules are not included; budget for single-mode GPON optics on the four ports and a 10G module for aggregation. Compatibility with your fiber plant and switch transceivers is on you.
- The 512-client aggregate limit assumes roughly 128 ONTs per GPON port. If your splitter topology differs or you plan denser ONT packing, confirm handshake and OMCI load capacity with Ubiquiti or your ONT vendor.
- Redundancy is not built-in; multiple UF-OLT-4 units must be deployed at separate sites with dual-ring fiber or backup uplinks for carrier-grade fault tolerance.
For regional ISPs, rural FTTP operators, or enterprises rolling out private fiber backhaul on campuses, the UF-OLT-4 delivers solid cost-per-port economics and management flexibility without unnecessary complexity. Pair it with standards-compliant ONTs and a backbone aggregation switch, and you have a reproducible, scalable fiber access platform.
