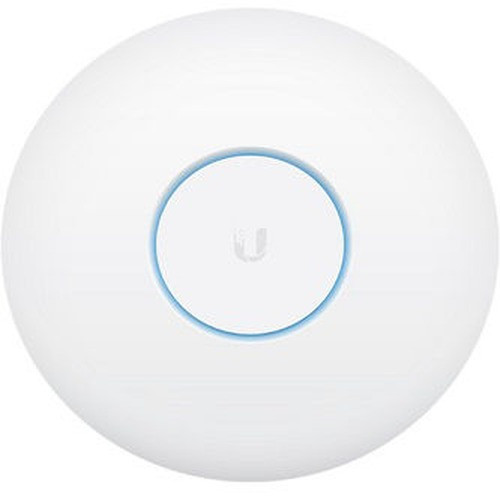

Ubiquiti UAP-AC-SHD-5-US Dual-Band 802.11ac Access Point
Overview
The Ubiquiti UAP-AC-SHD-5-US is a dual-band 802.11ac Wave 2 access point designed for enterprise and mid-scale indoor wireless deployments. This model integrates with the Ubiquiti UniFi ecosystem, offering centralized management without vendor lock-in to proprietary protocols—it operates on open 802.11ac standards and maintains backward compatibility with legacy 802.11a/b/g/n clients. Power delivery via PoE (IEEE 802.3at or higher) eliminates the need for dedicated electrical outlets; the unit draws power directly from your network infrastructure, simplifying ceiling or distributed mounting in network closets and branch locations.
Key Features
- 802.11ac Wave 2 with Multi-User MIMO: Simultaneous spatial streams to multiple clients prevent the performance cliff you hit with older 802.11n when concurrent users spike—critical in dense office or retail environments where 20+ devices per AP are the norm.
- Dual-Band Operation (2.4 GHz and 5 GHz): 2.4 GHz extends range through walls and obstacles for legacy IoT and mobile devices; 5 GHz prioritizes throughput for bandwidth-hungry applications. The AP automatically assigns clients to the optimal band, reducing manual band-steering overhead.
- UniFi Controller Management (On-Premises or Cloud): Centralized radio resource management (RRM) automatically optimizes channel selection and transmit power across multiple APs—no per-device tuning required. Cloud control eliminates the need to maintain an always-on local controller for distributed branch offices; on-premises control preserves air-gapped deployments if required.
- PoE Powering (802.3at or 802.3bt Class 4): Draws under typical PoE budget limits, so standard enterprise switches handle dozens of these units without power supply upgrades. No separate wall-mounted transformers means fewer cable runs and cleaner ceiling installations.
- Compact Industrial Design (16.95 lbs): Weight is low enough for standard drop-ceiling T-bar and pendant mounts without load-bearing reinforcement—matters when you're retrofitting existing office spaces and can't modify structural elements.
- Standard 802.11ac Client Compatibility: Any device with 802.11ac or legacy 802.11a/b/g/n support associates without firmware tweaks. No proprietary clients needed, reducing support complexity for IT teams managing heterogeneous device fleets.
Integration & Deployment Context
The UAP-AC-SHD-5-US fits multi-site deployments where consistent wireless behavior across locations is required. Organizations standardizing on wireless access points within a unified management framework benefit from firmware rollouts, user segmentation (SSIDs), and guest network isolation orchestrated from a single pane of glass. Integration occurs via standard Ethernet PoE connectivity and encrypted communication with the UniFi Controller—no special WAN protocols or VPN tunneling required. The AP's encrypted communication with the controller ensures policy enforcement and remote monitoring even across geographically distributed sites.
Installation follows standard mounting practices: ceiling tiles, wall brackets, or pendant hangers, all using common hardware. Network integrators should verify PoE power availability and controller accessibility before field deployment—if your PoE switch lacks sufficient available ports, a dedicated injector is a straightforward workaround but adds cost and cabinet clutter.
When to Choose a Different Model
If your environment requires outdoor AP coverage, moisture/dust resistance beyond typical office conditions, or extreme temperature operation, evaluate higher-environmental-rating variants within the Ubiquiti access point family. If throughput demands exceed 802.11ac (multi-gigabit mesh, 4K video streaming to dozens of clients), consider stepping to 802.11ax (Wi-Fi 6) models in the same product line. For sites with existing non-Ubiquiti management infrastructure (Cisco Prime, Arista CloudVision, etc.), verify that the UniFi Controller's standalone operation aligns with your IT operational model before standardizing on this model.
Frequently Asked Questions
Q: Can the UAP-AC-SHD-5-US operate without a UniFi Controller?
A: No. The device requires a reachable UniFi Controller (on-premises or cloud-hosted) for provisioning, management, and radio optimization. Standalone AP mode without controller access is not supported.
Q: What PoE power budget do I need for the UAP-AC-SHD-5-US?
A: The unit requires IEEE 802.3at (30W) or higher PoE. Most modern enterprise switches deliver this standard. Verify available PoE ports on your switch before deployment; if constrained, a dedicated injector can augment capacity.
Q: Is the UAP-AC-SHD-5-US suitable for outdoor mounting?
A: No. This model is designed for indoor use. For outdoor coverage, consider outdoor-rated access points with IP67 environmental ratings and extended operating temperature ranges.
Q: Does the UAP-AC-SHD-5-US support 802.1X and RADIUS authentication?
A: Yes, the UniFi Controller supports 802.1X and RADIUS integration for enterprise WPA2/WPA3 authentication. SSID-level policies are configured centrally and pushed to the AP.
Q: What is the typical range of the UAP-AC-SHD-5-US?
A: In typical office environments (drywall, standard building materials), expect 50–80 feet on 5 GHz and 100–150 feet on 2.4 GHz. Range degrades with RF obstacles (concrete, metal, dense interference). Pre-deployment RF planning is recommended for large multi-floor deployments.
Q: Can I mix the UAP-AC-SHD-5-US with other Ubiquiti access point models in the same deployment?
A: Yes. The UniFi Controller orchestrates heterogeneous AP models across a single management domain, enabling staged rollouts and per-floor hardware differentiation (e.g., older models in low-demand zones, newer 802.11ax in high-throughput areas).
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UAP-AC-SHD-5-US remains a pragmatic choice for mixed-generation networks where 802.11ac performance aligns with existing client device capabilities. Centralized UniFi management reduces per-unit configuration overhead, and PoE deployment eliminates separate power infrastructure—a genuine cost saving on large rollouts. The multi-user MIMO implementation means you won't see the throughput collapse at 15+ concurrent devices that plagues older 802.11n deployments.
Technical Highlights:
- 802.11ac Wave 2 Multi-User MIMO: Simultaneous spatial streams prevent the per-device throughput penalty when user density spikes—validated benefit in retail and hospitality where guest density is unpredictable.
- PoE 802.3at Compliance: 16.95 lbs weight and efficient power design keep per-unit PoE draw low, meaning a single enterprise switch can handle 20+ units without supplementary injectors—real budget relief on campus deployments.
- Dual-Band with Automatic Client Steering: 2.4 GHz for legacy IoT and wall-penetration range; 5 GHz for throughput-critical clients. The controller automatically assigns—no IT staff tweaking band-specific SSIDs per device type.
Deployment Considerations:
- Controller dependency is non-negotiable—if your management network is down, APs lose configuration and radio optimization. Plan controller redundancy (cloud backup or active/standby on-premises) from day one.
- RF planning is not optional in multi-floor or high-interference environments. Concrete walls, metal ductwork, and neighboring 5 GHz networks (WiFi 6, cordless phones, microwave ovens) degrade range unpredictably. Budget a site survey if coverage mapping is mission-critical.
- 802.11ac is mature and stable, but if your roadmap includes dense 8K video streaming, mesh gaming, or IoT sensor swarms (100+ devices per AP), 802.11ax will become necessary in 18–24 months.
Best fit: Campus offices, retail chains, hospitality properties, and distributed branch locations where unified wireless management reduces IT operational burden and PoE infrastructure is already in place. Skip this model if outdoor coverage or air-gapped (no-cloud) deployments are hard requirements.
