Ubiquiti UACC-G5-PTZ-SM Ceiling Surface Mount
Overview

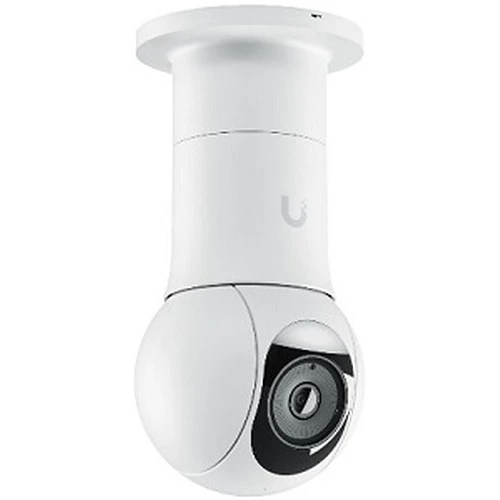

The UACC-G5-PTZ-SM is a dedicated ceiling surface mount accessory engineered for the Ubiquiti UVC-G5-PTZ camera. This compact polycarbonate enclosure (90mm diameter × 46.7mm height) with stainless steel mounting hardware provides a discrete, corrosion-resistant installation path for enterprise PTZ deployments where overhead mounting is the preferred geometry. The mount integrates seamlessly into commercial and institutional environments where clean sightlines and weatherproof protection matter — typical for warehouses, retail facilities, and access-controlled spaces requiring remote pan-tilt-zoom capability from fixed ceiling positions.
Key Features
- Dedicated UVC-G5-PTZ Compatibility: Purpose-built mounting interface eliminates adapter stacking and alignment drift. Direct mechanical and electrical pairing with the G5 PTZ preserves the camera's motorized zoom and pan-tilt responsiveness without mechanical play or electrical noise.
- Polycarbonate Enclosure: Rigid housing resists UV degradation and impacts common in high-traffic environments. Polycarbonate's clarity does not degrade optical performance for the PTZ lens optics mounted above.
- Stainless Steel Hardware: Corrosion resistance is critical in damp ceiling environments (HVAC return plenums, covered loading docks, agricultural facilities). Stainless fasteners eliminate rust bloom that can corrode surrounding infrastructure over 3–5 years of operation.
- Compact Form Factor (90mm Diameter): Overhead placement in drop-ceiling grids or surface-mounted to concrete does not interfere with HVAC ducts, cable trays, or fire suppression sprinkler coverage. The 46.7mm mounting depth allows installation even in shallow ceiling cavities.
- Indoor and Covered Outdoor Rated: Suitable for temperature-controlled indoor environments and sheltered exterior spaces (canopies, covered loading areas). Not rated for direct rain or UV exposure over extended periods without additional weatherproofing; select a different mounting solution if full outdoor submersion or direct spray is unavoidable.
- Installation Hardware Included: Mount ships with fasteners and installation guide. Pre-drilled holes and template eliminate on-site fabrication and reduce commissioning labor on multi-camera projects.
Integration and Compatibility
This accessory is not a standalone product. It is required to properly mount the UVC-G5-PTZ camera to a ceiling surface. Confirm camera ownership or procurement before ordering; the UACC-G5-PTZ-SM will not work with other Ubiquiti IP cameras or non-Ubiquiti PTZ units. The mount interfaces with the camera's base threading and electrical connector, so no adapters or intermediate blocks are necessary. Integrates with any PoE-capable network switch and video management system already supporting the G5 PTZ camera model.
What's in the Box
- 1x G5 PTZ Surface Mount (UACC-G5-PTZ-SM)
- Mounting hardware and installation guide
Frequently Asked Questions
Q: Can the UACC-G5-PTZ-SM be used outdoors?
A: The mount is rated for covered outdoor installations (canopies, covered loading docks, sheltered soffits). It is not suitable for open-air mounting exposed to direct rain, snow load, or sustained UV. The polycarbonate and stainless hardware will tolerate damp, sheltered environments for extended periods.
Q: Does the mount support wall mounting, or is it ceiling-only?
A: This accessory is designed for ceiling surface mounting. The UACC-G5-PTZ-SM is not compatible with wall or pendant installation. Confirm your installation geometry before ordering.
Q: What is the maximum weight the mount can support?
A: The UVC-G5-PTZ camera weighs approximately 1.2 kg (2.6 lbs). Ceiling mounting must be secured to structural members (joists, concrete, or load-bearing studs) capable of holding this load plus dynamic forces from pan-tilt motion. Do not rely on drywall anchors or suspended ceiling tile support systems.
Q: Do I need additional cabling or connectors for installation?
A: The mount includes the mechanical and electrical interface for the G5 PTZ. You will need standard Ethernet cabling and PoE injection (or a PoE switch) to power and connect the camera to your network. Confirm cable run routes and switch capacity before commissioning.
Q: Is this mount compatible with Ubiquiti's other camera families?
A: No. The UACC-G5-PTZ-SM is exclusively designed for the UVC-G5-PTZ. It will not interface with UniFi Protect cameras, G3 series, or other Ubiquiti models without modification.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UACC-G5-PTZ-SM is a straightforward purpose-built mount for the UVC-G5-PTZ — no surprises here, which is exactly what you want from an accessory. The 90mm diameter footprint and 46.7mm depth are tight enough to slide into standard drop-ceiling grids without crowding adjacent infrastructure, yet the stainless steel and polycarbonate construction is robust enough to survive the thermal cycling and minor vibration common to mechanical spaces.
Technical Highlights:
- Stainless Steel Hardware: In my experience, this matters more than people think. Galvanized fasteners will bloom rust within 18–24 months in humid plenums or covered outdoor bays. Stainless eliminates that maintenance headache and ensures long-term structural integrity when your facility is operating 24/7.
- Polycarbonate Enclosure: Rigid yet transparent to the PTZ optics. It resists impact and UV better than standard plastic, and it won't yellow or become brittle after 3–5 years in a temperature-controlled environment. Skip this mount if you're facing direct south-facing UV or extreme temperature swings; upgrade to a full weatherproof housing in those cases.
- Compact Form Factor: The 90mm footprint is small enough that you can pack multiple cameras into a single ceiling grid without causing congestion. Useful in retail or warehouse environments where line-of-sight discipline and camera density matter.
Deployment Considerations:
- Ceiling structure matters. This mount transfers pan-tilt dynamic loads directly to the mounting surface. Confirm your structural member can absorb the torque — typically 15–20 foot-pounds during rapid pan movements — without deflection. Suspended ceiling tiles and drywall anchors will fail.
- The mount is dedicated to the G5 PTZ. If you have a mixed-camera environment or are evaluating other PTZ options, confirm this compatibility up front. Ordering the wrong mount wastes procurement time.
- Covered outdoor use only. Direct rain, snow load, or sustained UV exposure will degrade the polycarbonate and corrode fasteners over time. Plan for periodic cleaning (mild soap, no harsh solvents) in damp environments.
Position this mount in retail, warehouse, or access-control deployments where ceiling-mounted PTZ coverage is the primary surveillance geometry and your infrastructure is already committed to Ubiquiti G5 PTZ cameras. The compact footprint and stainless construction make it a reliable choice for commercial environments — no exotic certifications required, just solid mechanics.
