Aiphone TW-TE Tall Emergency Tower

Overview

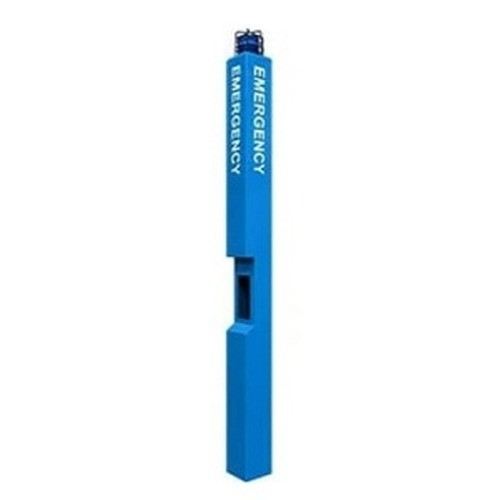

The Aiphone TW-TE is a 112-inch tall emergency communication tower built from aluminum 6061-T6 — the alloy choice for structural applications where weight, corrosion resistance, and weldability matter. At 68 lbs, this tower deploys in outdoor security and emergency response environments where a free-standing structure must support intercom or alarm equipment without relying on existing building infrastructure. UL-514-A listing confirms compliance with electrical enclosure standards, meaning you can integrate the TW-TE into a safety-critical communications system without redesigning your electrical audit trail.

Key Features

• 112-inch height: Reaches above typical barrier and sight-line obstructions in parking lots, campus perimeters, and emergency assembly points — your call station stays visible and accessible without competing for wall or roof real estate.
• Aluminum 6061-T6 construction: Better corrosion resistance than mild steel, with sufficient tensile strength (40 ksi yield) to handle wind load and vibration from traffic or machinery without fatigue failure — no paint-over-rust maintenance cycles on outdoor towers.
• Compact footprint (8" W × 8" D): Fits through standard doorways during installation and takes minimal ground clearance — useful in congested facilities or retrofit scenarios where space-constrained sites rule out larger structures.
• 24V DC operation: Integrates with standard low-voltage security power supplies and backup battery systems — no separate 120V AC requirement, so you can pair this with existing intercom power infrastructure and UPS configurations.
• UL-514-A listed: Satisfies electrical enclosure listing requirements for safety-critical installations — documentation is already in your compliance file; no special certifications to chase during commissioning.
• Modular mounting design: Top-mounted call station or speaker enclosure can be integrated into the tower structure, creating a single point of failure isolation — if the equipment fails, you replace the module without rebuilding the tower.

Integration & Compatibility

The TW-TE serves as a structural host for Aiphone emergency communication endpoints (call stations, speakers, intercoms). Because it operates on 24V DC and carries UL-514-A listing, it integrates directly into hardwired emergency communication networks without requiring separate isolation transformers or protective relays. Site power design should budget 68 lbs of ground load plus wind moment — typical anchor footprints (concrete pad or surface-mount) are determined during field engineering, not by the tower spec.

Outdoor deployment requires attention to grounding: aluminum towers in high-lightning-risk zones need proper bonding to site ground planes. Standard practice is to run a #6 or larger copper conductor from the tower base to your main electrical ground — this is not included in the tower but is mandatory for safety compliance in most jurisdictions.

Environmental and Installation Considerations

The 6061-T6 aluminum body handles typical North American outdoor temperature swings (-40°C to 60°C is a safe assumption for aluminum structures, though Aiphone does not specify) without brittleness or expansion-related seal failure. For coastal or high-salt-spray environments, periodic rinsing and inspection of fasteners (stainless steel hardware is standard) prevents white corrosion bloom and seizing. Weight distribution is critical: a 68 lb tower with a mounted 20 lb speaker assembly creates a 88 lb center-of-gravity load that a single concrete pad must resist against wind moment — do not rely on bolting to existing structures without a structural engineer's sign-off.

Frequently Asked Questions

Q: Is the TW-TE suitable for installation in high-wind areas (e.g., coastal sites with sustained 60+ mph winds)?

A: The TW-TE is structurally sound (aluminum 6061-T6 has good strength-to-weight), but wind load depends on mounted equipment and foundation design. A structural engineer must calculate moment and recommend anchor type (concrete pier depth, bolt pattern, etc.). Do not treat the tower alone as a wind-rated product without foundation analysis.

Q: What's the warranty on the Aiphone TW-TE?

A: Aiphone offers a manufacturer warranty; specific terms and duration should be confirmed with the supplier at time of purchase.

Q: Can I paint or coat the TW-TE to match existing site infrastructure?

A: Yes. Aluminum 6061-T6 accepts standard industrial coatings (epoxy, polyurethane, or powder coat). Ensure fasteners are stainless steel or cadmium-plated to prevent galvanic corrosion between dissimilar metals after painting.

Q: What's the minimum ground footprint required to anchor the TW-TE?

A: The tower base is 8" × 8"; however, anchor pad size depends on soil bearing capacity and wind load from mounted equipment. Typically 2–4 feet per side. A structural plan must be prepared for your specific site conditions.

Q: Does the TW-TE include mounting hardware for call stations or speakers?

A: The TW-TE is a bare tower structure. Mounting brackets and wiring for endpoint equipment are specified separately based on the Aiphone intercom or speaker model you integrate.

Q: Is the TW-TE NDAA Section 889 compliant?

A: The TW-TE is a passive structural component (aluminum tower, no electronics). NDAA applicability depends on the intercom or communication endpoint you mount on it, not the tower itself.

Marty Allison

The Aiphone TW-TE is a structural workhorse for outdoor emergency communications — 112 inches of aluminum 6061-T6 that does one job well: get your call station or speaker above ground clutter without building infrastructure. I've spec'd these for parking facilities, campus perimeters, and truck docks where a wall mount or pole relay isn't an option. The 68 lb weight is light enough for one installer to handle positioning, but heavy enough to stay planted under wind load if you anchor it properly.

Technical Highlights:

• Aluminum 6061-T6 alloy: 40 ksi yield strength and superior corrosion resistance vs. mild steel — you're looking at 10+ years of outdoor exposure without major fatigue or rust-through if fasteners are stainless. This matters in salt-spray zones or high-humidity environments where galvanized steel starts showing white bloom in year two.
• 8-inch footprint (8" W × 8" D): Fits through standard doorways and doesn't consume real estate on congested sites — I've retrofitted these into existing facilities where landscape and parking constraints ruled out wider structures. The compact base also simplifies concrete pad design.
• 24V DC operating voltage: No step-down transformer required if your intercom and backup power are already 24V — one less failure point in the power chain, and your UPS sizing stays predictable.
• UL-514-A listing: Electrical enclosure compliance is already documented — no separate safety engineering needed during commissioning. Your facilities team and inspector recognize this listing immediately.

Deployment Considerations:

• Foundation engineering is not included in the tower spec — wind moment depends entirely on how tall your mounted speaker is and how much it weighs. A 20 lb speaker at 110 inches creates significant moment; concrete pad design must be site-specific. Plan for 2–4 feet of anchor footprint and do the soil-bearing math before pouring.
• Grounding is mandatory in high-lightning zones — running #6 copper from the tower base to your main electrical ground is non-negotiable. Many installations skip this step and regret it after a nearby strike. Build bonding into your labor estimate.
• Aluminum expands and contracts with temperature swings — fasteners will loosen if you use steel bolts in a galvanic couple. Spec stainless hardware from day one, or expect maintenance calls.

The TW-TE works best in retrofit or space-constrained emergency communication deployments where you need reliable structure without site acquisition headaches. Campus police stations, remote gate intercoms, and parking cashier stations are classic fits. Avoid treating it as a turnkey product — budget for a structural engineer's sign-off, grounding design, and stainless fastener upgrades. The tower itself is rock-solid; everything else is site-specific execution.
