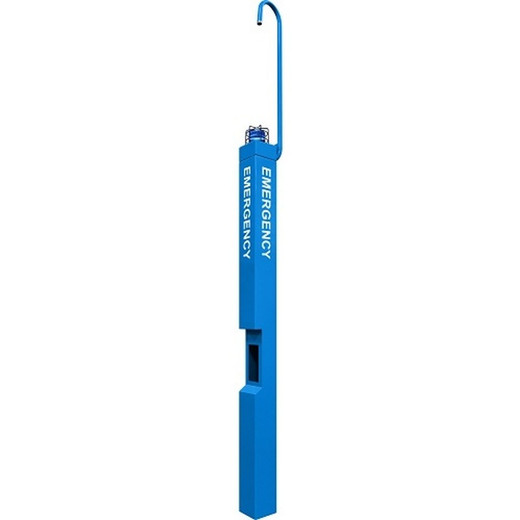

Aiphone TW-TE-ARM Tall Emgy W/Cam ARM

Overview

The Aiphone TW-TE-ARM is a tall, heavy-duty mounting bracket designed for specific Aiphone emergency communication stations, particularly those requiring a substantial vertical footprint and integrated camera support. Constructed from robust Aluminum 6061-T6, this bracket provides a stable platform for emergency stations in demanding environments where reliable communication and visual verification are critical. Its 174-inch height is engineered for installations where elevated mounting is necessary for optimal visibility or to meet specific site requirements. The integrated camera mount ensures that visual monitoring can be seamlessly incorporated into the emergency station deployment.

Compatibility

This mounting bracket is specifically designed for use with Aiphone emergency stations that feature a tall form factor and require camera integration. Verify compatibility with your specific Aiphone emergency station model to ensure proper fit and function. The 1.5" NPT threading allows for secure attachment to compatible poles or structures.

Installation Notes

The TW-TE-ARM features 1.5" NPT threading, 1" long, for secure pole or structure mounting. It requires a 24V DC power source for both the beacon and LED functions, indicating it is intended for systems with appropriate power distribution. The substantial 80 lbs weight necessitates secure mounting to a structure capable of supporting this load. Ensure the mounting surface can handle the bracket's dimensions: 174" H x 8" W x 15-3/4" D.
