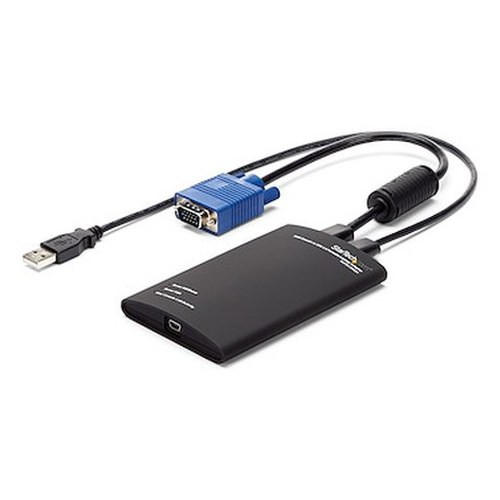

StarTech NOTECONS01 Laptop-to-Server KVM Console Adapter

Overview

The StarTech NOTECONS01 converts any laptop into a fully functional KVM console for headless servers, PCs, ATMs, kiosks, and embedded systems — no dedicated monitor, keyboard, or mouse required at the rack. It bridges the gap between the laptop's USB port and the target device's VGA video output plus PS/2 or USB keyboard and mouse ports, all without a separate power supply. If you manage data center equipment, remote branch hardware, or point-of-sale systems and need occasional direct console access without carting a crash cart, this is the type of tool that earns its place in a field kit.

The NOTECONS01 connects to the host server via the included cables — an 11-inch VGA host cable and a 15-inch USB host cable on the server side, and a 6-foot USB console cable on the laptop side. The entire unit draws power over USB from the connected laptop, keeping the setup clean and self-contained. A single LED indicator confirms operational status at a glance.

Key Features

• 1920x1200 @ 60Hz Maximum Resolution: Captures the server's VGA output at full HD-plus resolution, so text-heavy BIOS screens, UEFI configuration menus, and OS boot sequences render clearly on the laptop display. You won't be squinting at a degraded image during a time-sensitive recovery.
• Dual Host Interface — USB and PS/2: The server-side connections support both USB 2.0 and PS/2 keyboard and mouse inputs, which means the NOTECONS01 works with legacy rack hardware that never got USB-only ports, as well as current-generation equipment. No adapter dongles needed for older machines.
• USB-Powered (5V DC via USB): The adapter draws power entirely from the laptop's USB port. There is no wall brick to carry, no power outlet to hunt for, and no delay getting set up in a congested IDF closet or remote equipment room.
• 6-Foot USB Console Cable: The laptop-side cable gives you enough reach to set the laptop on a nearby surface rather than hovering directly in front of a rack — practical when clearance is tight and you need both hands free to work.
• Short Server-Side Cables (11-inch VGA, 15-inch USB): The compact host cables stay tidy inside the rack and minimize cable management headaches. The short run also reduces signal degradation at the VGA interface.
• 284,000-Hour MTBF: At that rated mean time between failures, this is a tool you can deploy in a field kit or leave semi-permanently attached to a critical server without worrying about reliability. That figure is consistent with commercial-grade connectivity hardware.
• Operating Range 0°C to 40°C: Covers standard indoor equipment room and office environments. For unusually hot or cold edge deployments, note the storage temperature extends to -40°C to 70°C, so it survives transport in a vehicle through most climates.
• Compact Form Factor (4.5 x 2.9 x 0.6 in, 6 oz): Weighs less than a deck of cards and fits in a laptop bag side pocket. For field technicians servicing multiple sites, that portability matters more than it sounds on a spec sheet.
• 80% RH Humidity Rating: Handles the humidity levels typical of equipment rooms and light industrial environments without degradation to the electronics.

Integration and Compatibility

The NOTECONS01 is built around standard interfaces that appear across a wide range of hardware generations. On the server or target device side, it requires a VGA video output and either a USB 2.0 or PS/2 keyboard/mouse port — the combination found on the vast majority of rack servers, ATMs, kiosks, industrial PCs, and embedded controllers manufactured in the last two decades. The console side connects to any laptop with a USB port; no proprietary software stack or driver ecosystem lock-in is noted in the evidence. Maximum users supported is one, which is the correct design for a direct console connection — this is not a shared-access KVM switch.

For broader KVM switch deployments where multiple servers need centralized management, the NOTECONS01 is a field access companion rather than a replacement. Pair it with server management infrastructure for environments where out-of-band IPMI or iDRAC access is unavailable or needs a physical fallback. IT teams managing rackmount equipment across distributed sites will find it a cost-effective complement to remote management software, particularly during initial provisioning or OS recovery when network-based tools are unavailable. See the full StarTech connectivity catalog for related console and KVM accessories, or review our KVM selection guide to determine whether a single-port adapter or a multi-port switch better fits your console access architecture.

Frequently Asked Questions

Q: Does the NOTECONS01 require any software or drivers installed on the laptop?

A: The evidence does not document a specific driver requirement — the adapter is designed to work via standard USB connectivity from the laptop side. Verify with StarTech's support documentation for your specific laptop OS before deploying in a critical environment.

Q: What is the maximum display resolution the NOTECONS01 supports?

A: The NOTECONS01 supports a maximum resolution of 1920x1200 at 60Hz, which is sufficient for BIOS, UEFI, and OS console work on any standard server VGA output.

Q: Can the NOTECONS01 connect to servers that only have PS/2 keyboard and mouse ports?

A: Yes. The host interface supports both PS/2 and USB 2.0 keyboard and mouse connections on the server side, making it compatible with legacy rack hardware alongside current equipment.

Q: What is the warranty on the NOTECONS01?

A: StarTech provides a 2-year manufacturer warranty on the NOTECONS01.

Q: Does the NOTECONS01 need an external power supply?

A: No. The NOTECONS01 is USB-powered at 5V DC and draws its operating power directly from the connected laptop's USB port. No wall adapter or separate power source is required.

Q: What is the cable length between the laptop and the adapter?

A: The console-side USB cable connecting the adapter to the laptop is 6 feet (approximately 1.8 meters). The server-side cables are shorter: 11 inches for VGA and 15 inches for USB.

Karl Wilson

The spec that matters most on the NOTECONS01 for field work is the 284,000-hour MTBF rating — that is not a number you typically see called out on a laptop adapter, and it tells you this unit is built to survive repeated deployment cycles rather than sit in a drawer and fail the one time you need it. I keep one of these in a field kit specifically because it covers both PS/2 and USB on the server side, which means a single tool handles everything from a decade-old ATM controller to a current-gen rack server without carrying adapters for both.

Technical Highlights:

• 1920x1200 @ 60Hz capture: High enough to render UEFI text and graphical boot environments without compression artifacts — you are seeing exactly what the server is outputting, not a downscaled approximation.
• USB-powered at 5V DC: Zero dependency on local power infrastructure. In a remote branch or a colocation cage where outlet access is shared and contested, this matters operationally.
• 6-foot console cable: Enough reach to rest the laptop on a shelf or the top of the rack rather than wedging it in front of the target server — small detail, real ergonomic difference during a long recovery session.

Deployment Considerations:

• The operating temperature ceiling of 40°C means this is designed for conditioned equipment rooms. If you are servicing uncooled edge closets in summer, confirm ambient temperatures stay within spec before relying on it.
• Maximum users is one — this is a direct one-to-one console connection, not a shared KVM. If your use case involves multiple technicians needing concurrent access to the same machine, you need a different solution.

The NOTECONS01 is the right tool for a multi-site field technician who provisions and recovers headless servers, ATMs, and kiosks where network-based out-of-band management is either unavailable or not yet configured — exactly the scenario where a self-powered, bag-friendly console adapter earns its keep.
