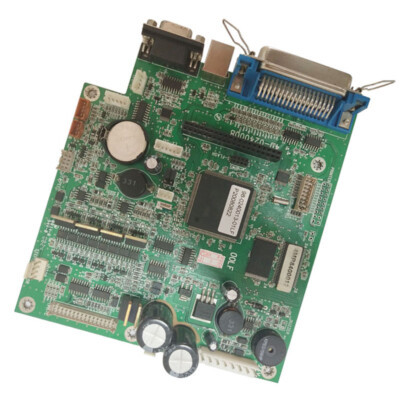

TSC 98-0470047-5ALF Main Board for TTP246/344M PRO

TSC 98-0470047-5ALF Main Board

The TSC 98-0470047-5ALF is an OEM main board replacement component designed for TSC TTP246 and TTP344M PRO thermal label printers. This board serves as the core processing and control module, managing print operations, media handling, and connectivity functions in compatible TSC printer models.

Overview

As a main board assembly, the 98-0470047-5ALF handles the computational and control operations required for consistent thermal printing performance. This component is essential for users operating TTP246 or TTP344M PRO units who require a direct OEM replacement due to board failure, upgrade, or system refresh. The board integrates with the printer's LCD display interface and manages all wired connectivity protocols required for network and USB communication.

Key Features

• OEM main board for TSC TTP246 and TTP344M PRO printers
• Manages thermal print engine control and media advancement
• LCD display integration for operator interface
• Wired network connectivity support
• Direct replacement component—no firmware modifications required
• Compatible with existing TTP246/344M PRO printer assemblies

Technical Specifications

The 98-0470047-5ALF main board features integrated processor and memory architecture optimized for industrial thermal printing workloads. It manages print speed regulation, thermal element control, media sensor input processing, and real-time communication with external systems. The board supports dual communication interfaces: wired Ethernet for network printing and USB for direct device connection, allowing flexible deployment in warehouse, logistics, and manufacturing environments.

The board includes LCD display connectivity, enabling on-printer status monitoring, error reporting, and basic configuration without external tools. This simplifies troubleshooting and reduces downtime during daily operations.

Integration and Compatibility

The TSC 98-0470047-5ALF is a direct-fit replacement for TTP246 and TTP344M PRO printers. Installation requires removal of the existing main board assembly and connection of the same internal harnesses—no recalibration or firmware flashing is needed. The board maintains full compatibility with existing printer firmware versions and all label design software packages already deployed in your printing infrastructure.

For organizations managing multiple TTP246/344M PRO units, maintaining spare 98-0470047-5ALF boards on-site ensures rapid restoration of failed printers without waiting for external service calls.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the TSC 98-0470047-5ALF main board during replacement scenarios for TTP246 and TTP344M PRO printer installations. This is a straightforward OEM component that restores full functionality to compatible printers without compatibility concerns or firmware complications.

Technical Highlights:

• Direct OEM Part: Purpose-built for TTP246 and TTP344M PRO—ensures exact electrical and mechanical fit with no adapter requirements.
• LCD Interface: Board manages all on-printer display functions, supporting status monitoring and basic menu navigation.
• Dual Connectivity: Integrated support for wired Ethernet and USB communication eliminates the need for separate network interface cards.

Deployment Considerations:

• Stock spare boards in high-volume printing operations to minimize downtime—board failures are rare but require immediate replacement to resume label production.
• Verify current printer firmware version before ordering; the 98-0470047-5ALF maintains backward compatibility with standard TTP246/344M PRO firmware releases.

The 98-0470047-5ALF is a reliable replacement component. For organizations relying on TSC TTP246 or TTP344M PRO printers, keeping a spare board on-hand is a practical insurance policy against unexpected control board failures.
