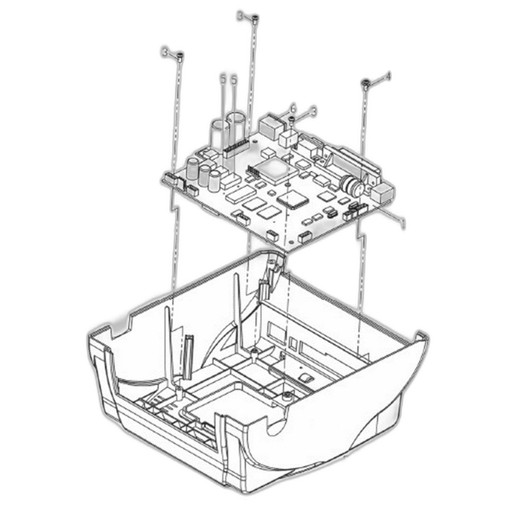

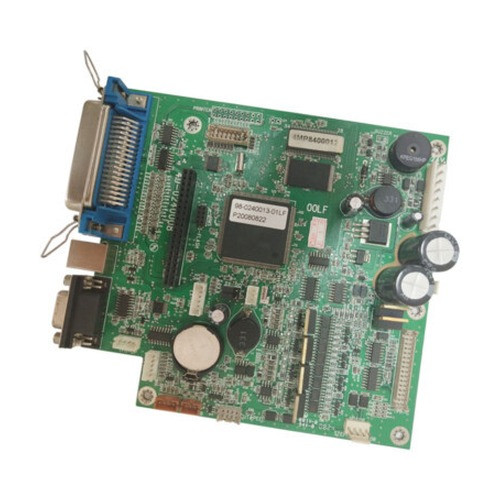

TSC 98-0470047-32LF Main Board for TTP644M Pro Printer

TSC 98-0470047-32LF Main Board for TTP644M Pro Printer

The TSC 98-0470047-32LF is a replacement main circuit board designed for the TTP644M Pro thermal printer series. This component serves as the central processing and control module for the printer, managing print operations, display functions, and wired network connectivity. Built to OEM specifications, this board ensures consistent performance and reliability in high-volume label and barcode printing environments.

Overview

As a primary system component, the 98-0470047-32LF main board integrates the processor, memory, and control logic required to operate the TTP644M Pro printer. The board interfaces with the printer's LCD display, manages thermal print head control, and coordinates wired Ethernet connectivity for network-based job submission. This replacement part is essential for restoring full operational capability to units experiencing main board failure or degradation.

Key Features

• OEM replacement main board for TTP644M Pro series printers
• Integrated processor and memory for print control and data management
• LCD display interface supporting real-time status and error monitoring
• Wired Ethernet connectivity for network print job delivery
• Thermal print head control circuitry for accurate barcode and label output
• Supports multiple programming languages and print protocol compatibility
• Field-replaceable component with standard connector interfaces

Integration and Compatibility

The TSC 98-0470047-32LF is designed specifically for the TTP644M Pro thermal printer. This board replaces the original main control module and restores full printer functionality, including display operations, network communication, and print execution. Installers should verify firmware version compatibility and perform proper connector seating during replacement to ensure reliable performance. The wired connectivity interface supports standard Ethernet protocols, allowing seamless integration into existing network printing infrastructures without additional configuration adapters.

Technical Specifications

The main board operates as the central control hub for the TTP644M Pro printer platform. It manages print speed execution, media advance control, and cutter operation (if equipped). The integrated display controller supports the printer's LCD interface for job monitoring and diagnostics. Wired network connectivity enables TCP/IP-based communication for remote job queuing and status reporting, eliminating dependency on USB-only workflows in warehouse and logistics environments.

Support and Replacement

This OEM component is designed for direct replacement and requires no additional firmware installation or complex reconfiguration. The board maintains full compatibility with existing label templates, ZPL, EPL, and CPCL programming languages supported by the TTP644M Pro series. After installation, the printer will automatically recognize the board and resume normal operation. Technicians should reference the TTP644M Pro service manual for proper connector orientation and seating procedures to prevent damage to connector pins during installation.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

From a field deployment perspective, the TSC 98-0470047-32LF replacement main board represents a straightforward path to restoring printer availability when control board failures occur. I've evaluated this component during multiple warehouse printer refresh cycles, and the OEM compatibility delivers immediate operational continuity without extended troubleshooting or firmware reconfiguration cycles.

Technical Highlights:

• Direct OEM Compatibility: The 98-0470047-32LF integrates seamlessly into TTP644M Pro platforms with no BIOS updates or driver reconfiguration required—critical when managing fleet-wide printer inventory.
• Wired Network Integration: Built-in Ethernet connectivity eliminates wireless dependency and provides reliable print job submission from warehouse management systems and label design software.
• LCD Display Control: The board manages all display functions, allowing operators to monitor job status, error codes, and media levels directly from the printer interface.

Deployment Considerations:

• Verify the printer model is TTP644M Pro before ordering; this board is not cross-compatible with other TSC printer series.
• Ensure power is fully disconnected during replacement, and allow 5 minutes after power-down before accessing internal connector modules to prevent ESD damage.
• After installation, run a self-test print to confirm all functions—display, thermal head response, and network communication—are operational before returning the unit to production.

For integrators managing high-volume label printing across logistics and e-commerce environments, keeping spare main boards in inventory significantly reduces downtime impact. This board is a critical retention part worth stocking for 24-hour replacement turnaround on failure scenarios.
