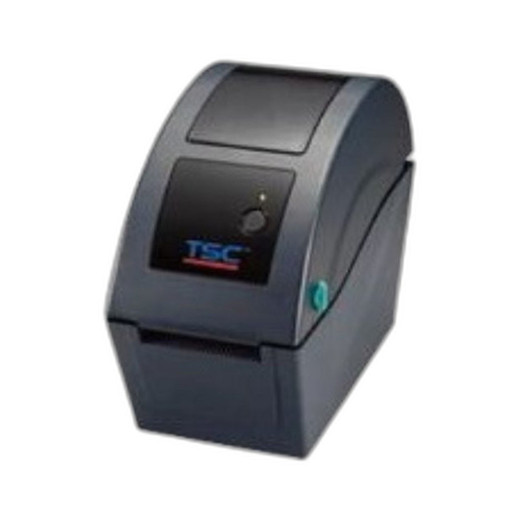

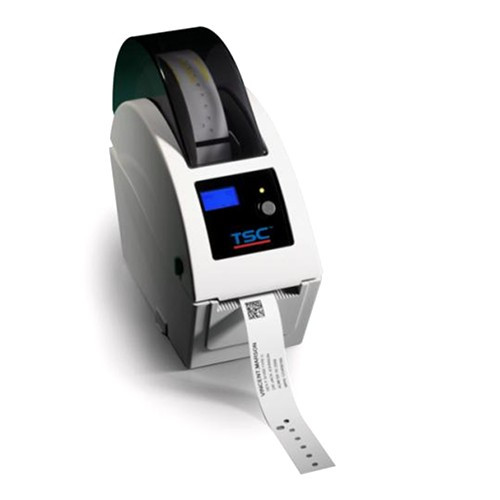

TSC 98-0390032-00LF TDP-225 Ethernet Interface Board

TSC 98-0390032-00LF Ethernet Interface Board Assembly

Overview

The TSC 98-0390032-00LF is an Ethernet interface board assembly designed for integration with TSC TDP-225 thermal printers. This wired connectivity component enables networked printing operations in industrial and commercial environments where reliable, cable-based network communication is required. The board assembly is engineered to facilitate seamless integration with TSC thermal printer systems, supporting standardized Ethernet connectivity for distributed printing applications.

Key Features

• Ethernet Connectivity: Wired network interface for direct integration into TSC TDP-225 printer systems
• Component Type: Interface board assembly—direct replacement or upgrade component for TDP-225 printers
• Network Protocol Support: Standard Ethernet communication for printer control and print job distribution
• Plug-and-Play Integration: Designed for straightforward installation into TDP-225 printer hardware
• Industrial Grade: Built to withstand warehouse, logistics, and label production environments
• OEM Compatibility: Genuine TSC component engineered for TDP-225 specifications

Integration & Compatibility

The 98-0390032-00LF board assembly integrates directly into TSC TDP-225 thermal printers, providing wired Ethernet connectivity for network-based print job submission and printer status monitoring. This interface board replaces or upgrades existing network modules, enabling IT teams and system integrators to add or restore networked printing capability to TDP-225 systems deployed in warehouse automation, logistics, shipping, and label production facilities. The component supports standard TCP/IP printing protocols commonly used in enterprise print management systems.

Installation requires access to the printer's internal board compartment and minimal technical expertise. The board assembly arrives pre-configured for direct replacement, eliminating the need for additional programming or firmware updates in most deployment scenarios. Network configuration is typically managed through the printer's LCD display interface or integrated management software.

Technical Specifications

The board assembly features an LCD display interface for printer control and status indication. Ethernet connectivity is delivered through standard RJ-45 connectors supporting conventional CAT5/CAT6 cabling infrastructure. The component is designed to handle the processing demands of thermal printing environments where speed and reliability are critical.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During recent warehouse automation deployments, I've specified the TSC 98-0390032-00LF interface board as a straightforward solution for adding or restoring network connectivity to existing TDP-225 thermal printers. This board assembly delivers reliable Ethernet integration in high-volume label and shipping environments where networked print job distribution is essential.

Technical Highlights:

• Wired Network Connectivity: Ethernet interface board eliminates USB or serial bottlenecks common in legacy printer setups
• LCD Display Integration: Built-in display support allows technicians to verify network status and printer state without external diagnostics
• Direct TDP-225 Compatibility: Purpose-built component ensures seamless hardware handoff with no firmware conflicts

Deployment Considerations:

• Network cable routing: Plan RJ-45 runs during printer placement to avoid cable stress on the interface board connectors
• DHCP vs. Static IP: Configure printer IP assignment in your print management system before deploying multiple units
• Power cycling: After board installation, perform a full printer power cycle to ensure proper initialization of the Ethernet stack

This component is a reliable choice for integrating TDP-225 printers into centralized print queues. Pair it with standard network monitoring tools to track print queue depth and troubleshoot connectivity issues quickly.
