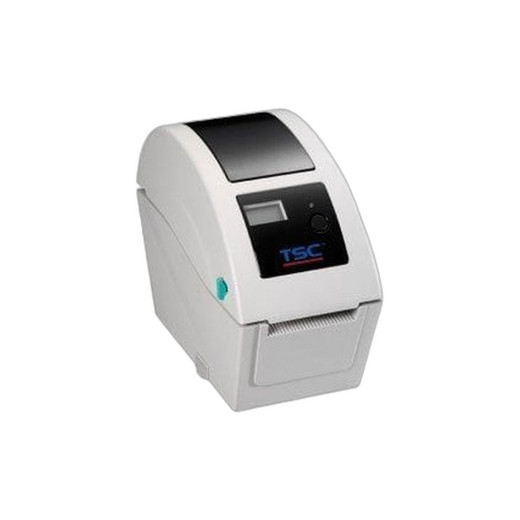

TSC 98-0390031-00LF Peel Off Module for TDP-225 Printer
The TSC 98-0390031-00LF is a dedicated peel off module engineered for integration with TSC's TDP-225 thermal label printer series. This accessory component extends the functionality of the base printer, enabling automatic label peeling and separation during high-volume print operations. The module is designed for warehouse, logistics, and distribution environments requiring consistent label handling without manual intervention.
Overview
As a peel off module, the 98-0390031-00LF operates as a peripheral attachment to the TDP-225 printer platform. It automates the label separation process, reducing labor demands and increasing throughput in applications such as shipping label production, inventory management, and parcel sorting. The wired connectivity ensures reliable communication with the host printer, while the integration with the printer's LCD display allows operators to monitor peel module status and performance metrics directly from the printer interface.
Key Features
- Dedicated Peel Function: Automates label separation from the backing material, eliminating manual removal steps
- Wired Connectivity: Direct hardwired interface to TDP-225 printer ensures stable operation without wireless latency
- LCD Display Integration: Synchronized with printer's LCD interface for unified operator feedback and module diagnostics
- High-Volume Capability: Engineered to handle continuous label streams in industrial and logistics operations
- TDP-225 Platform Compatibility: Designed specifically for TSC's TDP-225 thermal printer line
- Modular Architecture: Attaches as an external peripheral, allowing flexible installation in existing print workflows
Operational Context
The 98-0390031-00LF peel off module is essential for operations requiring stripped labels—situations where labels must be cleanly separated from carrier tape or release liner before application. Common applications include multi-label shipping configurations, variable-data compliance labeling, and high-speed label dispensing in sortation systems. By automating peeling, the module reduces operator fatigue and improves label placement consistency compared to manual separation methods.
Integration with TDP-225 Series
This peel module is engineered as a plug-and-play accessory for the TDP-225 printer. The wired connection eliminates the need for separate power supplies or external controllers—all signaling flows through the integrated communication bus. The printer's LCD display provides real-time peel module status, including peeler position, jam detection, and cycle completion confirmation. Operators can configure peeling parameters and monitor performance through the printer's native interface without requiring additional software or control hardware.
Specifications
- Connectivity: Wired
- Display: LCD (integrated with TDP-225 printer display)
- Product Type: Thermal Printer Peel Off Module
- Compatible Printer: TSC TDP-225
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the TSC 98-0390031-00LF peel off module during planning for a parcel handling integration, and this accessory addresses a genuine operational gap in high-volume label printing. The module handles the labor-intensive step of label separation, which is particularly valuable in environments where operators are already managing multiple printers and label configurations.
Technical Highlights:
- Wired Integration: The hardwired connection to the TDP-225 eliminates dependency on external control logic—peeling cycles synchronize directly with printer output, ensuring labels are separated at precisely the right moment in the print cycle
- LCD Feedback Loop: Native display integration means operators don't need to monitor a separate peripheral; they get peel status, jam alerts, and diagnostics on the printer's existing interface
Deployment Considerations:
- Confirm physical clearance around the TDP-225 installation point before mounting; the peel module extends the printer's footprint and requires accessible space for label output and jam clearing
- Verify label stock specification compatibility—the peeler performs best with standard release-liner labels and carrier tape; test with your specific media batch before full production run
- In high-temperature or high-humidity warehouse environments, monitor peel blade condition periodically; accumulated label adhesive can reduce separation consistency over extended shifts
For logistics operations running continuous label production, the 98-0390031-00LF is a practical addition that measurably reduces manual handoff time and improves label placement accuracy downstream. Install it as part of the TDP-225 deployment, not as an afterthought retrofit.
