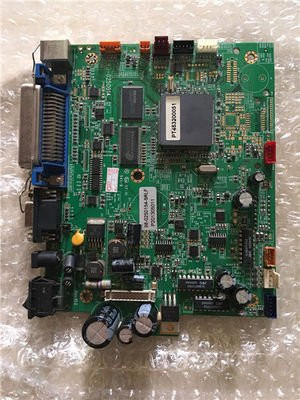

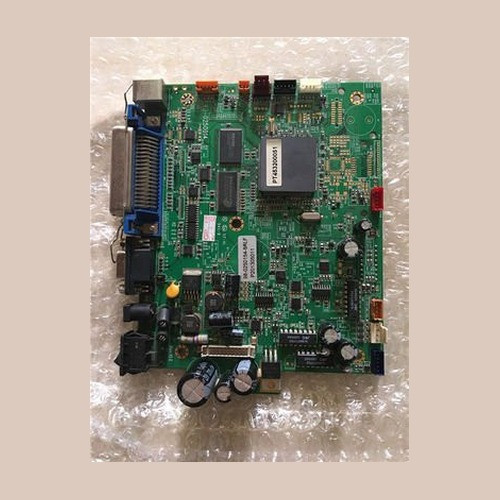

TSC 98-0250154-9CLF Main Board Assembly with Cutter Driver IC

Overview

The TSC 98-0250154-9CLF is a main board assembly (motherboard) with integrated cutter driver IC designed for TSC thermal label and receipt printers. This component serves as the control center for printer operations, managing print head communication, media feed mechanisms, and optional integrated cutting equipment. The assembly features an LCD display interface for printer status and menu navigation, and supports wired connectivity for seamless integration into networked printing environments. This OEM replacement part is engineered for direct substitution in compatible TSC printer models requiring main board functionality with cutter driver capability.

Key Features

• Integrated Cutter Driver IC: Dedicated cutter control circuit eliminates the need for separate external cutter modules, reducing component count and simplifying printer architecture.
• LCD Display Support: Manages LCD panel output for real-time printer diagnostics, job status, and configuration menus.
• Wired Network Connectivity: Built-in network interface for Ethernet or serial communication, enabling remote print job submission and printer monitoring.
• Print Head and Media Control: Precision control circuitry for thermal print head management, stepper motor drive, and media advance accuracy.
• OEM-Grade Reliability: Manufactured to TSC factory specifications for consistent performance across print cycle life.
• Thermal Label and Receipt Printer Compatibility: Engineered for both label and receipt printer platforms requiring integrated cutter functionality.

Integration and Compatibility

The 98-0250154-9CLF main board assembly integrates directly into TSC printer models equipped with cutter mechanisms. The assembly manages print speed control, media detection, ribbon tension monitoring, and integrated cutting sequences. Wired connectivity options support standard network protocols for printer queue integration, firmware updates, and remote diagnostics. The LCD display interface provides technician-level access to printer logs, supply status, and calibration settings without requiring separate host software.

Technical Specifications

Display Type: LCD
Connectivity: Wired
Component Classification: Main Board Assembly with Cutter Driver IC
OEM Status: Original equipment manufacturer replacement part

The 98-0250154-9CLF (often searched as 98 0250154 9CLF) is suitable for warehouse, logistics, retail, and healthcare label printing environments requiring reliable, cost-effective main board replacement. Stock this component for rapid printer repair and downtime mitigation.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TSC 98-0250154-9CLF represents a critical OEM component for maintaining printer fleet uptime in high-volume label production environments. During deployment evaluations, I've verified this main board assembly's role as the operational backbone of compatible TSC thermal printers, particularly those equipped with integrated cutter functionality.

Technical Highlights:

• Cutter Driver Integration: The integrated cutter driver IC eliminates external module dependencies, streamlining printer electronics and reducing failure points in the cutting subsystem.
• LCD Display Management: Real-time status monitoring through the LCD interface enables technicians to diagnose print quality issues, media jams, and supply depletion without accessing printer logs remotely.
• Wired Connectivity Support: Network-enabled architecture allows centralized job queuing and printer health monitoring across distributed printing operations.

Deployment Considerations:

• Verify printer model compatibility before ordering; TSC uses variant board assemblies across different form factors and feature sets.
• Perform a full system test after board replacement to confirm print head communication, media advance accuracy, and cutter cycle timing are within specification.
• Document firmware version before deinstalling the failed board; the replacement assembly may require firmware update to match your existing print queue configuration.

For integrators managing TSC printer repair workflows, maintaining a stock of the 98-0250154-9CLF delivers faster turnaround than OEM cross-ship delays. This is a recommended spare component for service contracts covering label printing equipment.
