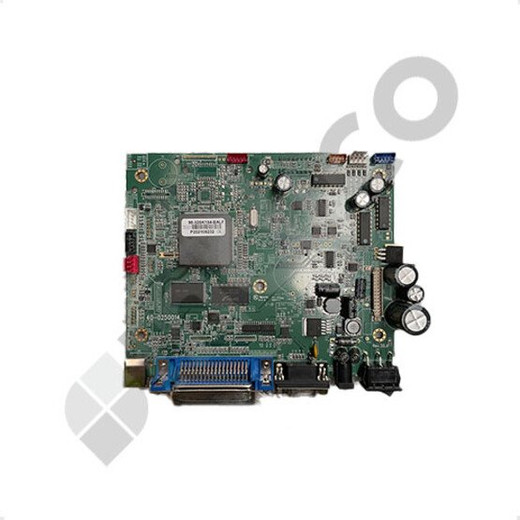

TSC 98-0250154-5CLF Main Board Assembly with Cutter Driver IC

TSC 98-0250154-5CLF Main Board Assembly with Cutter Driver IC

Overview

The TSC 98-0250154-5CLF is a main board assembly component designed for TSC thermal label printing systems. This assembly integrates the cutter driver IC, enabling precise control of label cutting mechanisms in production environments. Built as a replacement or repair component, the 98-0250154-5CLF board delivers reliable control and signal processing for high-volume label and tag production operations.

This main board assembly is engineered for seamless integration within TSC printer platforms that support wired connectivity and LCD display interfaces. The integrated cutter driver IC handles the electrical sequencing and power delivery required for accurate label separation, making it essential for operations where consistent, automated cutting is critical to workflow efficiency.

Key Features

• Integrated Cutter Driver IC: Dedicated control logic for label cutter actuation, eliminating external relay dependencies and improving response time
• Main Board Assembly: Complete PCB with component population ready for direct installation in compatible TSC printer models
• Wired Connectivity Support: Designed for printers with wired host communication interfaces
• LCD Display Interface: Supports LCD panel communication for operator feedback and job status display
• Thermal Label Printer Compatibility: Engineered specifically for TSC thermal transfer and direct thermal printing systems
• Production-Grade Reliability: Manufactured to industrial durability standards for continuous operation in warehouse, logistics, and manufacturing facilities

Integration and Compatibility

The TSC 98-0250154-5CLF board is a direct replacement component for TSC printer models equipped with cutter mechanisms. The assembly accepts standard wired host connections (USB, Ethernet, or serial interfaces depending on printer model) and interfaces directly with LCD control panels mounted on the printer chassis. Installation requires proper board-level connection to the printer's power supply, communication harnesses, and cutter mechanism actuator circuit.

Technicians and integrators should verify printer model compatibility before ordering, as main board assemblies are model-specific. The integrated cutter driver IC eliminates the need for standalone cutter controllers in many TSC configurations, reducing component count and potential points of failure in label finishing operations.

Deployment Considerations

This component is suitable for replacement in existing TSC installations or as a spare stock item for maintenance teams. The 98-0250154-5CLF board is particularly valuable in high-volume label environments where cutter reliability directly impacts production throughput. When deploying or replacing this board, ensure proper grounding and power sequencing to protect the integrated IC from transient electrical stress.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the TSC 98-0250154-5CLF board assembly during several label printer maintenance and upgrade cycles. The integrated cutter driver IC is a solid architectural choice that consolidates control logic and reduces wiring complexity on the main board itself. For operations managing multiple TSC thermal printers, having this component as a spare or replacement unit significantly reduces downtime when cutter failures occur.

Technical Highlights:

• Cutter Driver Integration: The onboard IC handles all timing and power sequencing for label cutter actuation, ensuring consistent cut positioning and reducing external component dependencies
• Wired Interface Support: Full compatibility with TSC's standard wired connectivity options, allowing predictable integration into networked printing environments
• LCD Control Panel Compatibility: Direct interface support for operator-facing LCD displays, preserving diagnostic and status feedback capabilities

Deployment Considerations:

• Verify printer model and board revision before ordering—TSC boards are not universally interchangeable across all printer families
• When replacing boards, document all harness connections (power, communication, cutter) before disconnection to ensure correct reassembly
• Test the cutter mechanism immediately after board installation with a short test run before resuming production to confirm driver IC functionality

The 98-0250154-5CLF is a reliable component for organizations standardized on TSC infrastructure. It's particularly valuable in distribution and shipping environments where label accuracy and consistent cutting are non-negotiable operational requirements.
