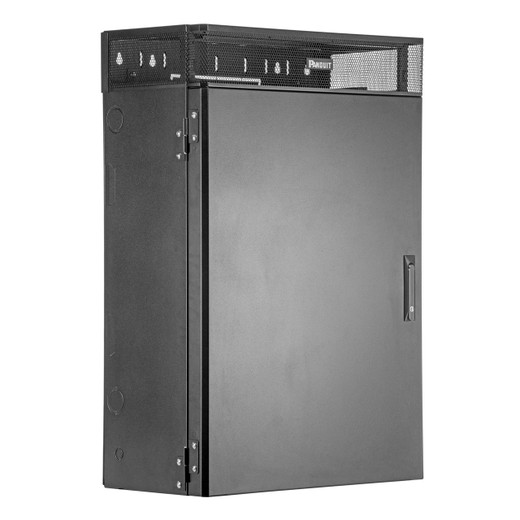

Panduit WME6BL TrueEdge V 6RU Vertical Wall Mount Enclosure

Overview

The Panduit WME6BL is a 6RU vertical wall mount enclosure from the PanZone™ TrueEdge™ line, designed for low-profile network infrastructure deployments where floor space is unavailable or undesirable. At 42 inches tall and 28.5 inches wide, the WME6BL accommodates active equipment up to 36 inches deep — meaning real-world switches, patch panels, and edge compute gear fit without compromise. Built from steel and rated IP20, this enclosure targets indoor structured cabling closets, IDF rooms, warehouse edge nodes, and access-layer network points in commercial and light-industrial facilities.

Where a traditional rack cabinet demands floor real estate and a cleared aisle, the TrueEdge design plants the enclosure directly on the wall, keeping the footprint minimal without sacrificing mounting flexibility. The adjustable rails inside the WME6BL let you tune the configuration to the equipment you're installing rather than forcing a fixed mounting depth on every device in the rack.

Key Features

• 6RU Active + 6RU Passive Capacity: The WME6BL provides dual 6RU zones — one for active gear (switches, routers, wireless controllers) and one for passive (patch panels, cable managers). That separation keeps your structured cabling organized and your active ports accessible without pulling passive hardware every time you need to reconfigure a switch.
• Up to 36-Inch Active Equipment Depth: At 14.8 inches of enclosure depth, the TrueEdge architecture supports active equipment up to 36 inches deep — enough to seat the full-depth 1U and 2U switches common in access-layer deployments. You won't need to pre-select shallow-depth gear just to fit the enclosure.
• Adjustable Equipment Rails: Configurable mounting rails mean you can position equipment at the optimal depth for cable management and airflow, rather than defaulting to front-of-rail mounting for every device. Useful when mixing shallow patch panels with deeper switches in the same bay.
• Steel Construction: The all-steel chassis provides structural rigidity for heavier active gear. A plastic or composite enclosure at this size would flex under the weight of a fully populated 1U switch stack; steel keeps the rack square and the rail alignment stable over time.
• Locking Swing Handle with Two Keys: The included rotating locking handle (two keys provided) restricts physical access to the interior — relevant in shared-space deployments like open offices, retail back-of-house, or multi-tenant IDF rooms where the enclosure isn't inside a locked comms closet.
• Tak-Ty™ Hook-and-Loop Cable Ties Included: Factory-supplied Tak-Ty™ wraps come in the box, so cable dressing inside the enclosure starts on day one without a separate parts order. Minor detail that matters on large deployments where a missing consumable stalls a dozen installs.
• Edge Cable Pass-Throughs: Dedicated edge cable openings let you route horizontal runs cleanly into and out of the enclosure without bending cables around the frame. Proper bend radius on Cat6A and fiber at the entry point matters for long-term signal integrity and jacket wear.
• UL 2416 Listed / IP20 Rated: UL 2416 certification confirms the enclosure meets established safety standards for electrical equipment mounting — relevant for inspections and insurance compliance in commercial builds. IP20 means it's rated for indoor environments free of significant dust ingress; it is not designed for outdoor, wet, or harsh-industrial use.
• Fits 19-Inch Rack-Mountable Equipment: Standard 19-inch EIA rail compatibility means every mainstream switch, patch panel, UPS, and cable manager that ships today drops straight in — no adapter plates, no custom brackets for standard gear.
• Door with Hinges: The included door with hinges closes the enclosure for a cleaner appearance in customer-facing or public-adjacent locations, and provides a basic physical barrier. Combined with the locking handle, it satisfies most site-security requirements for unattended access-layer nodes.

Integration and Compatibility

The WME6BL is engineered for 19-inch rack-mountable servers, switches, and patch panels. Competitor cross-references include models 13050-712, 43000-706, SWE4446X, and SWE4447X — if you're replacing an existing wall enclosure from another vendor, verify the internal rail spacing and depth capacity before assuming a direct swap. The PanZone™ ecosystem includes compatible structured cabling accessories, patch panels, and cable managers from Panduit's broader Panduit catalog that integrate directly into the WME6BL's passive bays without modification. For planning the full edge infrastructure stack — enclosure, switching, and cabling — the network switch and rack and enclosure categories cover complementary hardware.

When sizing power inside the WME6BL, account for the active equipment's heat load in a sealed or semi-sealed wall enclosure. The IP20 rating means ventilation is available, but a fully populated 6RU active bay with no supplemental airflow can accumulate heat quickly. Review your switch and UPS thermal specs against the enclosure's airflow path before commissioning. For deeper guidance on structured cabling and edge infrastructure planning, the network infrastructure planning guide covers rack sizing, cable management, and IDF room design decisions relevant to this type of deployment.

What's in the Box

• 1x TrueEdge™ vertical wall mount enclosure body (WME6BL)
• 1x Base
• 1x Door with hinges
• Horizontal passive equipment supports
• E-rail equipment supports
• 1x Rotating locking handle (includes 2 keys)
• Edge cable pass-throughs
• Tak-Ty™ hook-and-loop cable ties

Frequently Asked Questions

Q: How much active equipment depth does the WME6BL support?

A: The WME6BL TrueEdge architecture supports active equipment up to 36 inches deep, with the enclosure itself measuring 14.8 inches deep. This covers the full depth range of standard 1U access-layer switches.

Q: How many rack units of equipment does the WME6BL hold?

A: The WME6BL holds 6RU of passive equipment (patch panels, cable managers) and 6RU of active equipment (switches, routers), for a total of 12RU of mounting capacity.

Q: Is the WME6BL suitable for outdoor or wet-location installation?

A: No. The WME6BL carries an IP20 rating, which is appropriate for clean indoor environments only. It is not rated for outdoor, wet, or dusty-industrial locations. For those environments, select an enclosure with IP55 or higher protection.

Q: What rack equipment standard does the WME6BL support?

A: The WME6BL is designed for standard 19-inch rack-mountable equipment, including servers, switches, and patch panels — the universal standard for commercial networking gear.

Q: Does the WME6BL ship with cable management accessories?

A: Yes. The enclosure includes Tak-Ty™ hook-and-loop cable ties and edge cable pass-throughs as part of the standard package, along with the base, door, equipment supports, and locking handle with two keys.

Q: What standards does the WME6BL meet?

A: The WME6BL is listed to UL 2416 and rated IP20, confirming compliance with established safety standards for wall-mounted electrical equipment enclosures in commercial indoor environments.

Jerry Tildsen

The WME6BL is one of those enclosures I recommend when a site has the wall space but can't spare the floor for a proper rack cabinet — the 36-inch active equipment depth ceiling is the spec that matters most here, because it eliminates the need to source shallow-depth switches just to make the enclosure work. I've seen installs go sideways when a team orders a wall enclosure rated at 18 or 20 inches and then discovers their standard 1U switches bottom out at 28 to 32 inches. The WME6BL avoids that problem entirely.

Technical Highlights:

• 36-Inch Active Equipment Depth: Accommodates full-depth access-layer switches without special procurement — the 14.8-inch enclosure body enables this via the TrueEdge architecture's extended rail geometry.
• Dual 6RU Zones (Active + Passive): Dedicated passive and active bays keep patch panels and switches logically and physically separated, which pays off during moves, adds, and changes when you need to recable a patch panel without disturbing the active layer.
• UL 2416 + IP20: UL listing matters for permit sign-off on commercial builds — inspectors in some jurisdictions require it specifically for wall-mount enclosures. IP20 is the indoor-only rating; don't deploy this in a mechanical room, loading dock, or anywhere with airborne particulates above normal office levels.

Deployment Considerations:

• Verify wall blocking or use a proper steel backing plate before mounting — the WME6BL fully populated with a switch, patch panels, and cabling will carry significant dead load, and drywall anchors alone are not sufficient for commercial deployments.
• IP20 means the enclosure breathes; plan the thermal load before populating both active bays fully. A 6RU switch stack generating 150–200W in a low-airflow corridor closet will need supplemental ventilation or will thermal-throttle within hours.

The WME6BL is the right call for IDF extensions in commercial office buildouts and light-warehouse edge nodes where a full floor cabinet is overkill but you still need the credibility of a locked, UL-listed steel enclosure with room for real switching gear.
