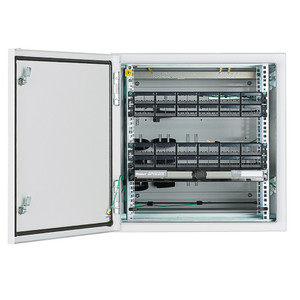

Panduit IDFLP6 TrueEdge Low-Profile Industrial Distribution Frame
Overview
The Panduit IDFLP6 is a steel wall mount enclosure engineered for industrial edge deployments where the enclosure itself must meet the same environmental standards as the equipment inside. Sized at 43.9 inches tall by 28.6 inches wide, this unit is designed specifically for use with Panduit WME-series wall mount enclosures — including the WME61R, WME0UB, WMEBP, and WMEMB — giving integrators a factory-matched frame that maintains UL Type 4/12 and IP66 compliance across the complete assembly. If you are deploying network or control equipment in manufacturing floors, warehouses, or outdoor-adjacent spaces where dust, water jets, and industrial contaminants are routine hazards, the IDFLP6 gives you the enclosure infrastructure to do it without compromising on protection ratings.
Explore the broader Panduit enclosures and infrastructure catalog for complementary components, or browse the full cabinets, racks, and enclosures category for alternative sizing and mounting configurations.
Key Features
- UL Type 4/12 and IP66 Ratings: UL Type 4 means the enclosure is listed for indoor and outdoor use with protection against windblown dust and rain, splashing, and hose-directed water. IP66 confirms the same in IEC terms — no ingress from powerful water jets. For a manufacturing or warehouse edge node, this is the threshold that keeps your switching, control, or patch equipment running during wash-down cycles and harsh ambient conditions. Below this rating, you are gambling on an unrated enclosure in a rated environment.
- Steel Construction: The all-steel body provides the structural rigidity needed to support a loaded WME-series enclosure on a wall without flex or fastener fatigue over time. Powder-coat finish in gray resists corrosion in humid or chemically active industrial environments.
- 43.9" x 28.6" Form Factor: At 43.9 inches tall and 28.6 inches wide (1114mm x 726mm), the IDFLP6 accommodates full-depth wall mount rack configurations. Plan your rough-in around these dimensions — the footprint is substantial, and clear wall space plus conduit routing need to be confirmed before ordering.
- WME-Series Compatibility: Matched specifically to Panduit WME61R, WME0UB, WMEBP, and WMEMB enclosures. Buying the frame and enclosure from the same product family ensures gasket geometry, mounting hole patterns, and structural load ratings are coordinated — critical for maintaining the IP66 assembly rating.
- Wall and Rack Mount Capability: Supports both wall and rack mounting configurations, giving installers flexibility in how the assembly is integrated into the facility infrastructure. Verify your wall construction (concrete, stud, or metal framing) against the enclosure's load specification before installation.
Integration and Compatibility
The IDFLP6 is designed as the structural frame for Panduit wall mount enclosures in the WME product line. Compatible models confirmed in evidence: WME61R, WME0UB, WMEBP, and WMEMB. For industrial networking deployments or edge compute nodes in factory environments, pair with appropriate cable management and power distribution components from the Panduit ecosystem to maintain the full IP66 system rating. Do not mix enclosure bodies from other manufacturers — the IP66 assembly rating depends on matched gasket and frame geometry.
Frequently Asked Questions
Q: What enclosure models is the IDFLP6 compatible with?
A: The IDFLP6 is confirmed compatible with the following Panduit WME-series enclosures: WME61R, WME0UB, WMEBP, and WMEMB. Using the frame with enclosures outside this list is not supported and may void the IP66 assembly rating.
Q: What environmental protection ratings does the IDFLP6 meet?
A: The IDFLP6 meets UL Type 4/12 and IP66 standards. UL Type 4 covers indoor and outdoor use with protection against rain, windblown dust, and hose-directed water. IP66 confirms protection against powerful water jets per IEC 60529. It is not rated for submersion (IP67/IP68).
Q: What are the physical dimensions of the IDFLP6?
A: The IDFLP6 measures 43.9 inches (1114mm) tall and 28.6 inches (726mm) wide. Depth is not specified in available evidence — confirm with Panduit documentation or your distributor before rough-in.
Q: Can the IDFLP6 be rack mounted as well as wall mounted?
A: Yes. The IDFLP6 supports both wall and rack mounting configurations according to manufacturer specifications.
Q: What material is the IDFLP6 constructed from?
A: The IDFLP6 is constructed from steel with a gray finish, providing structural rigidity and corrosion resistance appropriate for industrial environments.
When I spec an edge node for a food processing or automotive plant, the enclosure frame is not an afterthought — it is what keeps the UL Type 4/12 and IP66 assembly rating intact after installation. The IDFLP6 is the structural backbone for Panduit WME-series enclosures, and its 43.9 x 28.6 inch steel frame is sized to handle a fully populated wall mount rack without wall anchor fatigue. If you have already committed to WME61R for your enclosure body, the IDFLP6 is the matched frame that preserves the IP66 rating of the complete assembly.
Technical Highlights:
- IP66 + UL Type 4/12: Not just a sticker — these ratings mean the sealed assembly survives direct hose-down. For wash-down environments (food production, chemical processing), this is a hard requirement, not a nice-to-have.
- 1114mm x 726mm Steel Frame: The steel construction at these dimensions supports full-depth loaded WME enclosures. Flex in a frame under load is how IP gasket seals fail over time — steel here is the correct choice.
- WME-Series System Match: Mounting hole patterns and gasket geometry are coordinated with WME61R, WME0UB, WMEBP, and WMEMB. Cross-brand frame substitution is where IP ratings get voided in the field.
Deployment Considerations:
- Confirm wall construction load capacity before mounting. At 43.9 inches tall and steel-bodied, a fully loaded WME assembly is substantial — concrete or properly backed steel stud walls are preferred over standard drywall framing.
- Depth is not published in available spec data. Verify the combined IDFLP6 + WME enclosure depth against your available wall clearance and conduit routing before committing to a rough-in location.
The IDFLP6 is the right call for industrial facilities deploying Panduit WME-series enclosures in environments where wash-down cycles, dust, and humidity are routine — manufacturing floors, distribution centers, and outdoor-adjacent utility rooms where a non-rated frame would compromise the entire system.
